Refer to the connection ：
python3 mysql Connection pool _yFwillh The blog of -CSDN Blog _python3 Database connection pool
Original text exists Multithreading problem , Multithreading creates multiple connection pools .
After I modify , There are thread safety issues . When 2 When threads use the thread pool at the same time , Will create 2 A thread pool . If there are multiple threads , Stagger the use of thread pools , Only one thread pool will be created , Will share a thread pool .
I used the annotation mode of the singleton mode , It feels like a single instance of this annotation , Solved the problem of multithreading , But it doesn't solve the thread safety problem , The singleton pattern needs to be optimized .
Here is my revised version of .
Mainly through PooledDB Module implementation .
db_config.py
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: db_config.py
# -*- coding: UTF-8 -*-
import pymysql
# database information
DB_TEST_HOST = "127.0.0.1"
DB_TEST_PORT = 3308
DB_TEST_DBNAME = "bt"
DB_TEST_USER = "root"
DB_TEST_PASSWORD = "123456"
# Database connection code
DB_CHARSET = "utf8"
# mincached : Number of idle connections opened at startup ( The default value 0 Do not create a connection at the beginning )
DB_MIN_CACHED = 5
# maxcached : The maximum number of idle connections allowed in the connection pool ( The default value 0 Represents the size of the non idle connection pool )
DB_MAX_CACHED = 0
# maxshared : Maximum number of shared connections allowed ( The default value 0 Means that all connections are private ) If the maximum quantity is reached , The connection requested to be shared will be shared
DB_MAX_SHARED = 5
# maxconnecyions : Maximum number of connection pools created ( The default value 0 It means no limit )
DB_MAX_CONNECYIONS = 300
# blocking : Set the behavior when the maximum number of connection pools is reached ( The default value 0 or False Represents an error returned <toMany......> Others represent blocking until the number of connections decreases , Connection assigned )
DB_BLOCKING = True
# maxusage : The maximum number of multiplexes allowed for a single connection ( The default value 0 or False Represents unlimited reuse ). When the maximum number is reached , The connection will automatically reconnect ( Close and reopen )
DB_MAX_USAGE = 0
# setsession : An optional one SQL The command list is used to prepare each session , Such as ["set datestyle to german", ...]
DB_SET_SESSION = None
# creator : Use modules that connect to the database
DB_CREATOR = pymysqlSet the maximum and minimum connection pool to 5 individual . When the connection pool is started , It will establish 5 A connection .
singleton.py
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -10
# @File: singleton.py
#coding:utf-8
# Singleton mode function , To decorate a class
def singleton(cls,*args,**kw):
instances = {}
def _singleton():
if cls not in instances:
instances[cls] = cls(*args,**kw)
return instances[cls]
return _singleton
db_dbutils_init.py
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: db_dbutils_init.py
from dbutils.pooled_db import PooledDB
import db_config as config
# import random
from singleton import singleton
"""
@ function ： Create a database connection pool
"""
class MyConnectionPool(object):
# Private property
# Can be accessed directly through objects , But it can be accessed inside this class ;
__pool = None
# def __init__(self):
# self.conn = self.__getConn()
# self.cursor = self.conn.cursor()
# Create database connection conn And cursor cursor
def __enter__(self):
self.conn = self.__getconn()
self.cursor = self.conn.cursor()
# Create a database connection pool
def __getconn(self):
if self.__pool is None:
# i = random.randint(1, 100)
# print(" Number of thread pools created "+str(i))
self.__pool = PooledDB(
creator=config.DB_CREATOR,
mincached=config.DB_MIN_CACHED,
maxcached=config.DB_MAX_CACHED,
maxshared=config.DB_MAX_SHARED,
maxconnections=config.DB_MAX_CONNECYIONS,
blocking=config.DB_BLOCKING,
maxusage=config.DB_MAX_USAGE,
setsession=config.DB_SET_SESSION,
host=config.DB_TEST_HOST,
port=config.DB_TEST_PORT,
user=config.DB_TEST_USER,
passwd=config.DB_TEST_PASSWORD,
db=config.DB_TEST_DBNAME,
use_unicode=False,
charset=config.DB_CHARSET
)
return self.__pool.connection()
# Release connection pool resources
def __exit__(self, exc_type, exc_val, exc_tb):
self.cursor.close()
self.conn.close()
# Close the connection and return it to the link pool
# def close(self):
# self.cursor.close()
# self.conn.close()
# Remove a connection from the connection pool
def getconn(self):
conn = self.__getconn()
cursor = conn.cursor()
return cursor, conn
# Get connection pool , Instantiation
@singleton
def get_my_connection():
return MyConnectionPool()
mysqlhelper.py
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: mysqlhelper.py
import time
from db_dbutils_init import get_my_connection
""" Execute the statement query and return the result. The result is not returned 0; increase / Delete / Change to return the number of changed data , No return 0"""
class MySqLHelper(object):
def __init__(self):
self.db = get_my_connection() # Get connections from the data pool
#
# def __new__(cls, *args, **kwargs):
# if not hasattr(cls, 'inst'): # Single case
# cls.inst = super(MySqLHelper, cls).__new__(cls, *args, **kwargs)
# return cls.inst
# Encapsulate execution commands
def execute(self, sql, param=None, autoclose=False):
"""
【 It mainly determines whether there are parameters and whether the connection is released after execution 】
:param sql: String type ,sql sentence
:param param: sql Statement to replace "select %s from tab where id=%s" Among them %s Is the parameter
:param autoclose: Whether to close the connection
:return: Return the connection conn And cursor cursor
"""
cursor, conn = self.db.getconn() # Get connection from connection pool
count = 0
try:
# count : Is the number of data pieces changed
if param:
count = cursor.execute(sql, param)
else:
count = cursor.execute(sql)
conn.commit()
if autoclose:
self.close(cursor, conn)
except Exception as e:
pass
return cursor, conn, count
# Release the connection
def close(self, cursor, conn):
""" Release the connection and return it to the connection pool """
cursor.close()
conn.close()
# Query all
def selectall(self, sql, param=None):
cursor = None
conn = None
count = None
try:
cursor, conn, count = self.execute(sql, param)
res = cursor.fetchall()
return res
except Exception as e:
print(e)
self.close(cursor, conn)
return count
# Check the list
def selectone(self, sql, param=None):
cursor = None
conn = None
count = None
try:
cursor, conn, count = self.execute(sql, param)
res = cursor.fetchone()
self.close(cursor, conn)
return res
except Exception as e:
print("error_msg:", e.args)
self.close(cursor, conn)
return count
# increase
def insertone(self, sql, param):
cursor = None
conn = None
count = None
try:
cursor, conn, count = self.execute(sql, param)
# _id = cursor.lastrowid() # Get the primary key of the currently inserted data id, The id It should be auto generated
conn.commit()
self.close(cursor, conn)
return count
except Exception as e:
print(e)
conn.rollback()
self.close(cursor, conn)
return count
# Add multiple lines
def insertmany(self, sql, param):
"""
:param sql:
:param param: Must be a tuple or a list [(),()] or （（）,（））
:return:
"""
cursor, conn, count = self.db.getconn()
try:
cursor.executemany(sql, param)
conn.commit()
return count
except Exception as e:
print(e)
conn.rollback()
self.close(cursor, conn)
return count
# Delete
def delete(self, sql, param=None):
cursor = None
conn = None
count = None
try:
cursor, conn, count = self.execute(sql, param)
self.close(cursor, conn)
return count
except Exception as e:
print(e)
conn.rollback()
self.close(cursor, conn)
return count
# to update
def update(self, sql, param=None):
cursor = None
conn = None
count = None
try:
cursor, conn, count = self.execute(sql, param)
conn.commit()
self.close(cursor, conn)
return count
except Exception as e:
print(e)
conn.rollback()
self.close(cursor, conn)
return count
# if __name__ == '__main__':
# db = MySqLHelper()
# sql = "SELECT SLEEP(10)"
# db.execute(sql)
# time.sleep(20)
# TODO Check the list
# sql1 = 'select * from userinfo where name=%s'
# args = 'python'
# ret = db.selectone(sql=sql1, param=args)
# print(ret) # (None, b'python', b'123456', b'0')
# TODO Add a single
# sql2 = 'insert into hotel_urls(cname,hname,cid,hid,url) values(%s,%s,%s,%s,%s)'
# ret = db.insertone(sql2, ('1', '2', '1', '2', '2'))
# print(ret)
# TODO Add more
# sql3 = 'insert into userinfo (name,password) VALUES (%s,%s)'
# li = li = [
# (' Province by province ', '123'),
# (' arrive ','456')
# ]
# ret = db.insertmany(sql3,li)
# print(ret)
# TODO Delete
# sql4 = 'delete from userinfo WHERE name=%s'
# args = 'xxxx'
# ret = db.delete(sql4, args)
# print(ret)
# TODO to update
# sql5 = r'update userinfo set password=%s WHERE name LIKE %s'
# args = ('993333993', '%old%')
# ret = db.update(sql5, args)
# print(ret)
--------------------------------------------- Explain and test the connection pool ----------

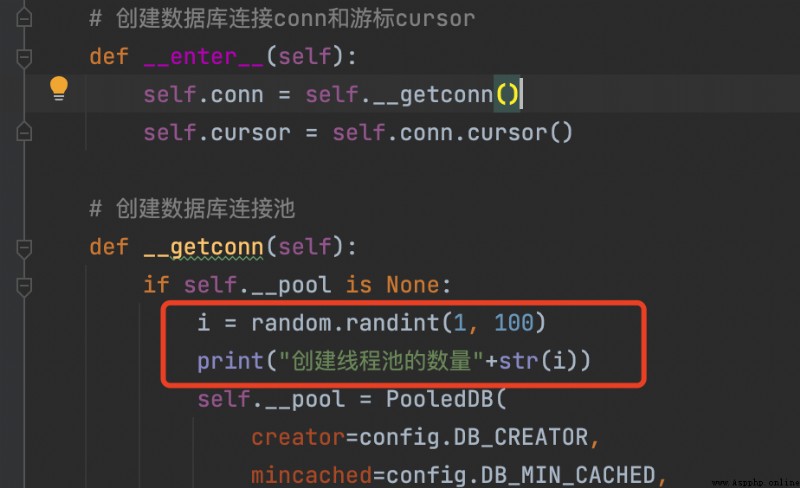

modify db_dbutils_init.py file , When creating a connection pool def __getconn(self): Methods , Add a print random number , In the future, it is convenient for us to determine whether it is a singleton thread pool .
The modified db_dbutils_init.py file
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: db_dbutils_init.py
from dbutils.pooled_db import PooledDB
import db_config as config
import random
from singleton import singleton
"""
@ function ： Create a database connection pool
"""
class MyConnectionPool(object):
# Private property
# Can be accessed directly through objects , But it can be accessed inside this class ;
__pool = None
# def __init__(self):
# self.conn = self.__getConn()
# self.cursor = self.conn.cursor()
# Create database connection conn And cursor cursor
def __enter__(self):
self.conn = self.__getconn()
self.cursor = self.conn.cursor()
# Create a database connection pool
def __getconn(self):
if self.__pool is None:
i = random.randint(1, 100)
print(" Random number of thread pool "+str(i))
self.__pool = PooledDB(
creator=config.DB_CREATOR,
mincached=config.DB_MIN_CACHED,
maxcached=config.DB_MAX_CACHED,
maxshared=config.DB_MAX_SHARED,
maxconnections=config.DB_MAX_CONNECYIONS,
blocking=config.DB_BLOCKING,
maxusage=config.DB_MAX_USAGE,
setsession=config.DB_SET_SESSION,
host=config.DB_TEST_HOST,
port=config.DB_TEST_PORT,
user=config.DB_TEST_USER,
passwd=config.DB_TEST_PASSWORD,
db=config.DB_TEST_DBNAME,
use_unicode=False,
charset=config.DB_CHARSET
)
return self.__pool.connection()
# Release connection pool resources
def __exit__(self, exc_type, exc_val, exc_tb):
self.cursor.close()
self.conn.close()
# Close the connection and return it to the link pool
# def close(self):
# self.cursor.close()
# self.conn.close()
# Remove a connection from the connection pool
def getconn(self):
conn = self.__getconn()
cursor = conn.cursor()
return cursor, conn
# Get connection pool , Instantiation
@singleton
def get_my_connection():
return MyConnectionPool()
Start testing
from mysqlhelper import MySqLHelper
import time
if __name__ == '__main__':
sql = "SELECT SLEEP(10)"
sql1 = "SELECT SLEEP(15)"
db = MySqLHelper()
db.execute(sql)
db.execute(sql1)
time.sleep(20)In the database , Use show processlist;

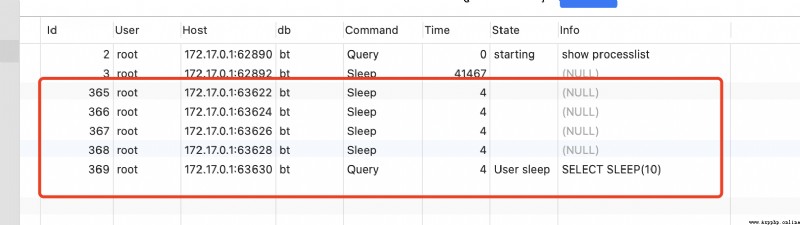

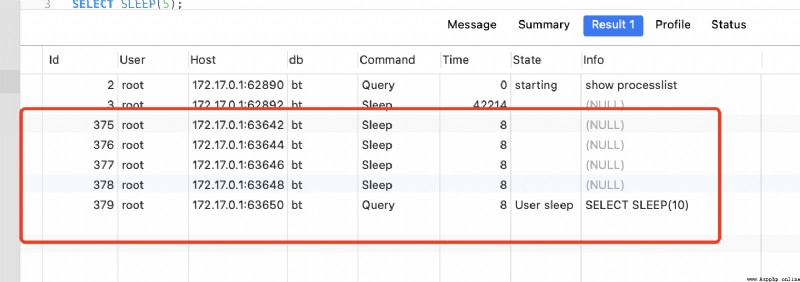

show processlist;When executing the first sql when . The database connection shows .

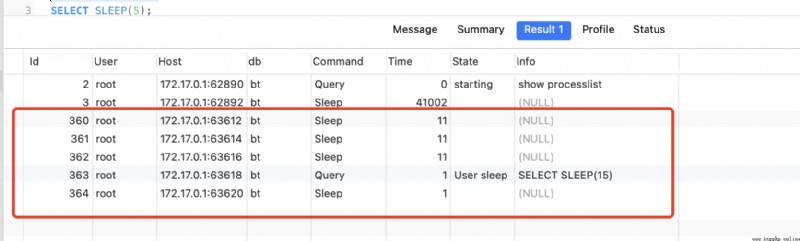

When executing the second sql when . The database connection shows .

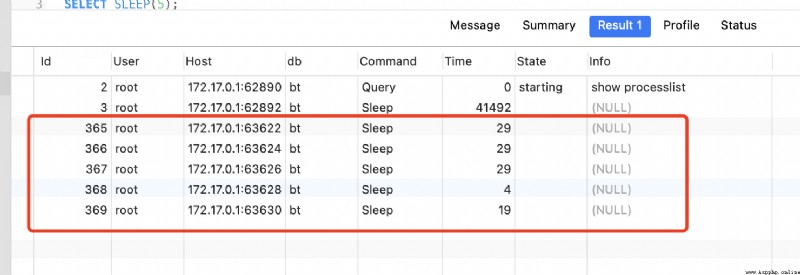

When performing the sql, Program sleep when . The database connection shows .

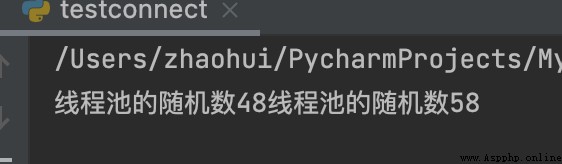

Program print results ：

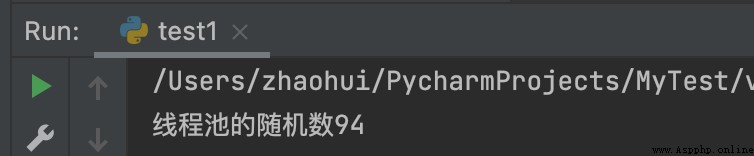

Random number of thread pool 43It can be concluded from the above ：
After the thread pool starts , Generated 5 A connection . Execute the first sql when , Used 1 A connection . Finish the first sql after , Additional 1 A connection . This is a linear , There are... In the thread pool 5 A connection , But every time , Only one of them was used .
There is a doubt. , If the connection pool does not support concurrency, it is meaningless ？
Above , Although the thread pool is enabled 5 A connection , But every time sql, Only one connection is used . Then why not set the thread pool size to 1 Well ？ What is the point of setting the thread pool size ？（ If in a non concurrent scenario , Whether setting the size is meaningless ？）
Advantages over not using a thread pool ：
If you do not use a thread pool , One at a time sql All have to create 、 disconnect . Use connection pooling like this , Don't create it over and over again 、 disconnect , Just use the ready-made connection directly .
from mysqlhelper import MySqLHelper
import time
if __name__ == '__main__':
db = MySqLHelper()
db1 = MySqLHelper()
sql = "SELECT SLEEP(10)"
sql1 = "SELECT SLEEP(15)"
db.execute(sql)

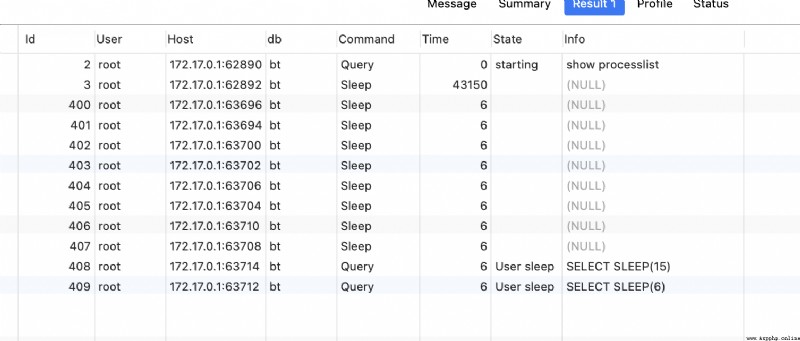

db1.execute(sql1)
time.sleep(20)

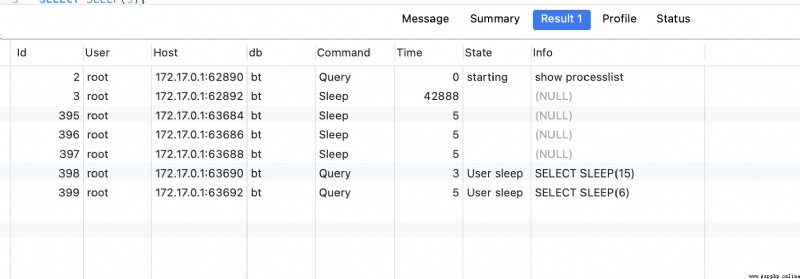

First instance db, perform sql. Thread pool started 5 A connection
Second example db1, perform sql
When the program sleeps , altogether 5 A thread pool .

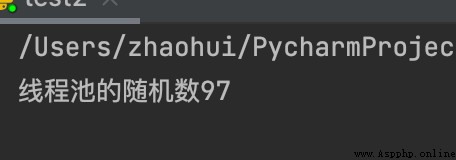

Print the results ：
it turns out to be the case that ：
Although we have created 2 An example , however （1） Create print results of thread pool , Print only 1 Time , And from beginning to end , The thread pool is only started 5 A connection , And connected id No change , That means it's always this 5 A connection .
prove , Although we have created 2 An example , But this 2 An instance is actually an instance .（ Singleton mode is in effect ）
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: test1.py
# Concurrent execution
import threading
from mysqlhelper import MySqLHelper
import time
def sl1():
time.sleep(2)
db = MySqLHelper()
sql = "SELECT SLEEP(6)"
db.execute(sql)
def sl2():
time.sleep(4)
db = MySqLHelper()
sql = "SELECT SLEEP(15)"
db.execute(sql)
if __name__ == '__main__':
threads = []
t1 = threading.Thread(target=sl1)
threads.append(t1)
t2 = threading.Thread(target=sl2)
threads.append(t2)
for t in threads:
t.setDaemon(True)
t.start()
time.sleep(20)
2 Threads are spaced 2 second .

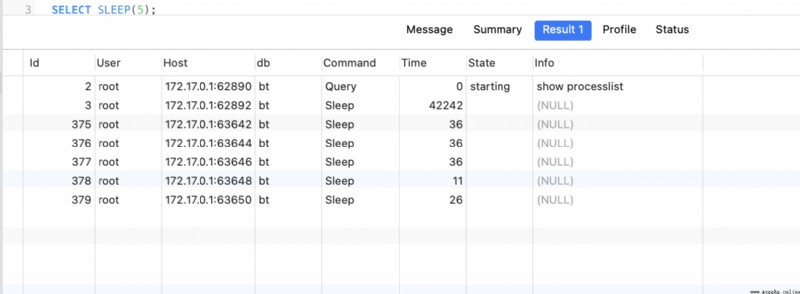

Observe the number of connections to the database
Print the results ：
In concurrent execution 2 individual sql when , Shared this 5 A connection , And the print result is only printed once , Note although concurrent creation 2 Second instance , But really only one connection pool is created .
# -*- coding:utf-8 -*-
# @Author: Meow sauce
# @time: 2022 - 06 -19
# @File: testconnect.py
import threading
from mysqlhelper import MySqLHelper
import time
if __name__ == '__main__':
db = MySqLHelper()
sql = "SELECT SLEEP(6)"
sql1 = "SELECT SLEEP(15)"
threads = []
t1 = threading.Thread(target=db.execute, args=(sql,))
threads.append(t1)
t2 = threading.Thread(target=db.execute, args=(sql1,))
threads.append(t2)
for t in threads:
t.setDaemon(True)
t.start()
time.sleep(20)
Observe the database connection
Print the results ：
It turns out that ：
The terminal prints 2 Time , The database is established 10 A connection , Description created 2 A thread pool .
Such a singleton pattern , There are thread safety issues .
As in the above experiment , Thread insecurity exists . The root cause , It should be in the singleton mode .
When I think about how I want to apply this singleton pattern .
