Cyclic code, convolutional code and their Python implementation

編輯：Python

Abstract ： This paper introduces two coding methods, cyclic code and convolutional code , also , The author gives the coding and decoding of two coding methods python Realization

keyword ： Cyclic code , System code , Convolutional code ,python,Viterbi Algorithm

Coding and decoding of cyclic codes

set up $C$ It's a $q$ element $[n,n-r]$ Cyclic code , Its generating polynomial is $g(x), \text{deg}(g(x))=r$. obviously ,$C$ Yes $n-r$ Two information bits ,$r$ Check bits . We use it $C$ For information sources $V(n-r,q)$ Is represented by a vector in .

For any information source vector $a_0a_1\cdots a_{n-r-1}\in V(n-r,q)$, There are two coding ideas for cyclic codes ：

Unsystematic coding method

Construct information polynomial

\[a(x) = a_0+a_1x+\cdots+a_{n-r-1}x^{n-r-1}
\]

The polynomial of the information source corresponds to the cyclic code $C$ A codeword of

\[c(x)=a(x)g(x)
\]

System code

Construct information polynomial

\[\bar{a}(x)=a_0x^{n-1}+a_1x^{n-2}+\cdots+a_{n-r-1}x^r
\]

Obviously $a_0,a_1,\cdots,a_{n-r-1}$ When not all are zero .$r\lt\text{deg}(\bar{a}(x))=n-1$. use $g(x)$ Remove $\bar{a}(x)$, obtain

\[\bar{a}(x)=q(x)g(x)+r(x)
\]

among $\text{deg}(r(x))\lt\text{deg}(g(x))=r$, The information source polynomial is encoded as C Code words in

\[c(x)=q(x)g(x)+r(x)=\bar{a}(x)-r(x)
\]

You can see ,$\bar{a}(x)$ and $r(x)$ , There are no identical items , So this coding method is system coding . That is to say , If you will $c(x)$ Medium $x$ The items of are sorted by birth order , Before the code word $n-r$ Bits are information bits , after $r$ Bit is check bit .

Example ： binary （7,4） Cyclic code

It is known that $C$ It's a binary $(7,4)$ Cyclic code , The resulting polynomial is $g(x)=x^3+x+1$.

$0101\in V(4,2)$ Is the information vector of the generation code

Non system coding （ Ascending power sort , The information vector is $x+x^3$）

\[\begin{aligned}
c(x)&=a(x)g(x) \\
&=(x+x^3)(1+x+x^3) \\
&=x+x^2+x^3+x^6
\end{aligned}
\]

That is to say ,$0101\in V(4,2)$ Encoded as $0111001\in V(7,2)$

System code （ Descending order , The information vector is $x^5+x^3$）

\[\begin{aligned}
&\bar{a}(x)=x^5+x^3=x^2(x^3+x+1)=x^2 \\
\end{aligned}
\] \[\begin{aligned}
c(x)&=\bar{a}(x)-r(x) \\
&=(x^5+x^3)-x^2 \\
&=x^5+x^3+x^2
\end{aligned}
\]

That is to say ,$0101\in V(4,2)$ Encoded as $0101100\in V(7,2)$

generally speaking , The decoding speed of system code is faster than that of non system code . Next, let's explore the above examples further .

Generation matrix of system code

consider $F_2[x]/\langle x^7-1\rangle$ The medium order is greater than 3 Base .

\[f_1(x)=x^6=(x^3+x+1)(x^3+x+1)+x^2+1
\]

That is to say ,$1000\in V(4,2)$ Encoded as $1000101\in V(7,2)$.

\[f_2(x)=x^5=(x^2+1)(x^3+x+1)+x^2+x+1
\]

That is to say ,$0100\in V(4,2)$ Encoded as $0100111\in V(7,2)$.

\[f_3(x)=x^4=x(x^3+x+1)+x^2+x
\]

That is to say ,$0010\in V(4,2)$ Encoded as $0010110\in V(7,2)$.

\[f_4(X)=x^3=(x^3+x+1)+x+1
\]

That is to say ,$0001\in V(4,2)$ Encoded as $0001011\in V(7,2)$.

So the generated polynomial is $g(x)=x^3+x+1$ Of $(7,4)$ Cyclic code C The generating matrix of is

\[G=
\begin{bmatrix}
1 & 0 & 0 & 0 & \vdots &1&0&1 \\
0 & 1 & 0 & 0 & \vdots &1&1&1 \\
0 & 0 & 1 & 0 & \vdots &1&1&0 \\
0 & 0 & 0 & 1 & \vdots &0&1&1 \\
\end{bmatrix}
\]

Decoding of cyclic codes

First, we introduce the knowledge of the check matrix of the check polynomial kernel of the cyclic matrix without proof .

Definition set up $C\subset R_n$ It's a $q$ element $[n,n-r]$ Cyclic code , Its generating polynomial is $g(x)$, The check polynomial is defined as

\[h(x)\triangleq(x^n-1)/g(x)
\]

Theorem set up $C\subset R_n$ It's a $q$ element $[n,n-r]$ Cyclic code , Its generating polynomial is $g(x)$, The check polynomial is $h(x)$, For any $c(x)\in R_n(x)$,$c(x)$ yes $C$ If and only if $c(x)h(x)=0$.

Theorem set up $C\subset R_n$ It's a $q$ element $[n,n-r]$ Cyclic code , Its generating polynomial is $g(x)$, The check polynomial is written as

\[h(x)=(x^n-1)/g(x)\triangleq h_{n-r}x^{n-r}+\cdots+h_1x+h_0
\]

And its check matrix is

\[H=
\begin{pmatrix}
h_{n-r} & h_{n-r-1} & h_{n-r-2} & \cdots & h_0 & 0 & 0 & \cdots & 0 \\
0 & h_{n-r} & h_{n-r-1} & h_{n-r-2} & \cdots & h_0 & 0 & \cdots & 0 \\
0 & 0 & h_{n-r} & h_{n-r-1} & h_{n-r-2} & \cdots & h_0 & \cdots & 0 \\
\vdots & \vdots & \vdots & & \vdots & \vdots & \vdots & & \vdots \\
0 & 0 & 0 & \cdots & h_{n-r} & h_{n-r-1} & h_{n-r-2} & \cdots &h_0\\
\end{pmatrix}
\]

So you can get it. , For known $C$ It's a binary $(7,4)$ Cyclic code , The resulting polynomial is $g(x)=x^3+x+1$, The check polynomial is $h(x)=x^4+x^3+x^2+1$, The check matrix is

\[H=
\begin{pmatrix}
1 & 1 & 1 & 0 & 1 & 0 & 0 \\
0 & 1 & 1 & 1 & 0 & 1 & 0 \\
0 & 0 & 1 & 1 & 1 & 0 & 1 \\
\end{pmatrix}
\]

Because it is the system code , therefore , If you will $c(x)$ Medium $x$ The terms of are sorted to the power of descent , Before the code word $n-r$ Bits are information bits , after $r$ Bit is check bit . That is to say , If there is no error , Before the accepted codeword 4 individual '' Letter ''（ Information bits ） Is the information transmitted by the other party .

But considering the general situation , The decoding process of binary cyclic code is as follows

According to the codeword $C$ And its generating polynomial , Construct check polynomial , The check matrix is further obtained $H$
Received vector $y$, Calculate its adjoint $S(y)=yH^{T}$
if $S(y)$ Is equal to zero , We think that there is no error in the transmission process ,$y$ Is to send code words
if $S(y)$ It's not zero , be $S(y)$ Can be expressed as $b(H_i)^T$, among $0\ne b\in GF(q),1\le i\le n$. At this point we think $y$ No $i$ Component errors ,$y$ Translated into codewords $y-\alpha_i$, among $\alpha_i$ No $i$ The components are $b$, The remaining components are zero .

For the above codewords , If received $y=0110010$,$S(y)=yH^T=011=1*H_4$, So the sending code word is $0111010$, I.e. information source $0111$.

For the above cyclic code ,python The program is implemented as follows

# (7,4) Binary cyclic code

# Generating polynomials g(x)= x^3+x+1

import numpy as np

# Generate matrix

G = np.array([

[1,0,0,0,1,0,1],

[0,1,0,0,1,1,1],

[0,0,1,0,1,1,0],

[0,0,0,1,0,1,1]

])

# Check matrix

H = np.array([

[1,1,1,0,1,0,0],

[0,1,1,1,0,1,0],

[0,0,1,1,1,0,1]

])

# code

def encode_cyclic(x):

if not len(x) == 4:

print(" Please enter 4 Bit information bit ")

return

y = np.dot(x,G)

print(x," Encoded as ：",y)

return y

# decoding , The process is consistent with Hamming code

def decode_cyclic(y):

if not len(y) == 7:

print(" Please enter 7 Bit information bit ")

return

x_tmp = np.dot(y,H.T)%2

if (x_tmp!=0).any():

for i in range(H.shape[1]):

if (x_tmp==H[:,i]).all():

y[i] = (y[i]-1)%2

break

x = y[0:4]

print(y," Decoding for ：",x)

return x

# test

if __name__ == '__main__':

y = [1,0,0,0,1,0,1]

decode_cyclic(y)

x=[1,0,0,0]

encode_cyclic(x)

Convolutional code

Convolutional code is one of the channel coding techniques , It belongs to an error correcting code . The earliest by 1955 year Elias Put forward at the earliest , The purpose is to reduce the error caused by the source message in the channel transmission process , Increase the accuracy of receiver decoding .

The convolutional code is generated by passing the information sequence to be transmitted through the linear finite state shift register , That is, in the encoding process of convolutional codes , The input message source needs to be convoluted with the impulse response in the encoder . say concretely , At any time , Encoder $n$ The output is not only related to the $k$ Input about , It is also associated with the previous $m$ Input about . The error correction ability of convolutional codes increases with $m$ Increase with the increase of , At the same time, the error rate increases with $m$ The index decreases with the increase of .

Parameters $(n,k,m)$ Explain the following ：

$m$ ： Constraint length , That is, the number of stages of the shift register （ Number ）, Each level （ Every ） contain $k$ Parameters （$k$ Inputs ）.
$k$ ： Number of information code points , Is the number of bits input per stage of the convolutional encoder
$n$ ：k Bit information code corresponds to the number of output bits after encoding , It is associated with $mk$ The input bits are related
Encoding rate ： $R_c=k/n$

It seems , The result of convolutional code coding is related to the previous input , Coding is memory , Yes no block code . The code of the block code is only related to the current input , Coding is not memory .

1967 year Viterbi A maximum likelihood algorithm based on dynamic programming is proposed Viterbi Decoding method .

Convolutional code coding

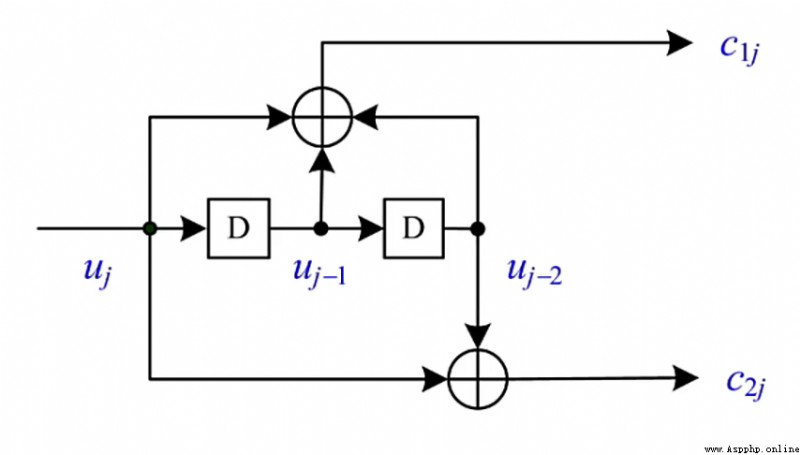

The picture below shows ：（2,1,2） Coding diagram of convolutional code

1 An input ,2 An output ,2 Displacement registers
The two-way generating polynomial is $x^2+x+1, x^2+1$（ They correspond to each other $c_{1j}$ and $c_{2j}$ ）

among ,$j$ Indicates timing ,

\[\begin{aligned}
c_{1j} &= u_j+D_1+D_2 = u_j+u_{j-1}+u_{j-2} \\
c_{2j} &= u_j + D_2 = u_j + u_{j-2}
\end{aligned}
\]

In order to explain the important in convolutional codes “ state ” Concept , Now we introduce the mark （ Only with 2 Take output as an example ,$n$ Outputs can be pushed in this way ）：

$s_j=(u_j,u_{j-1})$ Expressed as convolutional code in $j$ The state of arrival of the moment
$s_{j-1}=(u_{j-1},u_{j-2})$ Expressed as convolutional code in $j$ The state of departure at the moment

So it's not hard to see （2,1,2） Convolutional codes consist of 4 All possible states , by $(00),(01),(10),(11)$.

We have the following lemma for states

lemma

Given departure status $s_{j-1}$ And the current input $u_j$, The arrival status can be determined $s_j$ And the current output $c_{1_j}c_{2j}$
A sequence of changes in a given state $s_0s_1s_2\cdots$, It will be possible to determine the input sequence $u_0u_1u_2\cdots$ And output sequence $c_{10}c{20}c_{11}c_{21}\cdots$

notes ： We default to the initial state $s_{-1}=0$

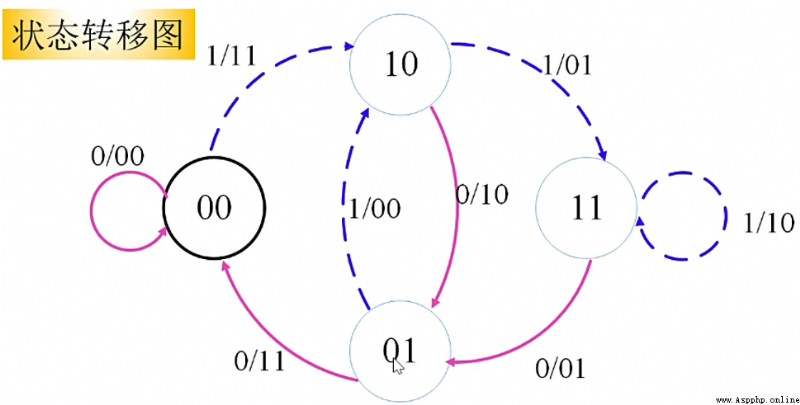

From the above description , It's not hard to see. , All the information of convolutional codes is contained in the sequence of state changes .

The red line indicates that the input information is 0, The blue line indicates that the input information is 1. The number beside the line indicates the output of the machine in the corresponding state
Start from each state , Two different states can be reached . Each arrival state has two departure States
The input information bit must be equal to the... Of the arrival state 1 position

The following figure for “ Gatu ”,

The grid structure is more compact , Represents the movement of time , That is to say , Bits of information are constantly being input .

From the above , We can conclude that , If the input sequence is $10110$, Then the output sequence is $11 10 00 01 01$.

The code example is as follows

# (2,1,2) Convolutional code

# Convolutional coding

def encode_conv(x):

# Store encoded information

y = []

# Two registers u_1 u_2 Initialize to 0

u_2 = 0

u_1 = 0

for j in x:

c_1 = (j + u_1 + u_2)%2

c_2 = (j+u_2)%2

y.append(c_1)

y.append(c_2)

# Update register

u_2 = u_1

u_1 = j

print(x," Encoded as ：",y)

return y

# Test code

if __name__ == '__main__':

encode_conv([1,0,1,1,0])

Decoding of convolutional codes

We noticed that

Any encoder output sequence , All correspond to the tree graph （ Gatu ） The only path on the
The decoder should be based on the receiving sequence , Find this path
According to the maximum likelihood （Maximum Likelihood ） Decoding principle , The decoder should find such a path in all paths of the graph , The code distance between the coded output sequence and the sequence received by the decoder is the smallest .

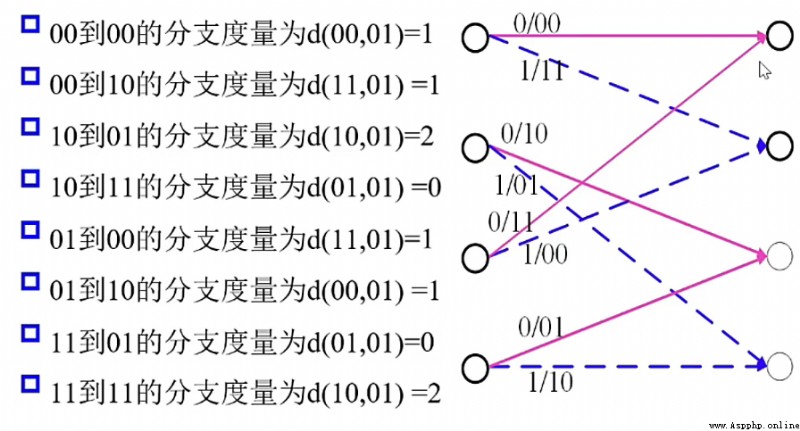

Branch metrics （ With （2,1,2） Convolutional code as an example ）

set up $j$ The bits received at any time are $y_{1j}y_{2j}$

The grid diagram is in $j\ge2$ All the time 8 There are different branches （ The same branch ： The departure state is the same as the arrival state ）, Each branch corresponds to two bit coded outputs $c_{1j}c_{2j}$
The Hamming distance between the encoded output of the two bits and the received bits is called the branch metric of the branch

For example, from the second $i$ Step to step $(i+1)$ Step received bits $01$

Cumulative measurement

From the initial state to $j$ A certain state path at a time is connected by various branches , The sum of the branch metrics of these branches is called the cumulative metric of the path
Under the above definition , The cumulative measure of a path is actually the Hamming distance between the path and the receiving sequence
maximum likelihood （Maximum Likelihood,ML） Decoding is to find $j$ The path with the smallest time cumulative metric .

The following are the input bits ：01 11 01 Lattice graph of .

among $A(i)$ Indicates that the cumulative measurement from the start time to the current time is $i$

Viterbi decoding

Maximum likelihood sequence decoding requires finite sequences , So for convolutional codes , It is required to be truncated . Based on maximum likelihood decoding （ML decoding ） Rules , Find the maximum likelihood path from the start to the end , That is, the path with the smallest cumulative measurement from the start point to the end point .
truncation ： After the information sequence input is completed , Use to input some specific bits , send $M$ Each residual path of a state can reach a known state （ Generally, it is all zero state ）. So there is only one residual path , This is the maximum likelihood sequence .
Viterrbi The core idea of decoding ： Add up - Compare - choice , Based on calculation , And generate new survival paths .

For the receiving sequence is ：01 11 01 11 00

Through the above path analysis diagram, we can get , After maximum likelihood decoding analysis , The decoding sequence is ：11000

Viterbi decoding python The implementation is as follows ：

def decode_conv(y):

# shape = (4,len(y)/2)

# initialization

score_list = np.array([[ float('inf') for i in range(int(len(y)/2)+1)] for i in range(4)])

for i in range(4):

score_list[i][0]=0

# Record the backtrace path

trace_back_list = []

# Backtracking blocks for each phase

trace_block = []

# 4 States 0-3 They correspond to each other ['00','01','10','11']

states = ['00','01','10','11']

# According to the different state and Input Encoding information

def encode_with_state(x,state):

# Coded output

y = []

u_1 = 0 if state<=1 else 1

u_2 = state%2

c_1 = (x + u_1 + u_2)%2

c_2 = (x + u_2)%2

y.append(c_1)

y.append(c_2)

return y

# Calculate Hamming distance

def hamming_dist(y1,y2):

dist = (y1[0]-y2[0])%2 + (y1[1]-y2[1])%2

return dist

# According to the current state now_state And input information bits input, Figure out the next state

def state_transfer(input,now_state):

u_1 = int(states[now_state][0])

next_state = f'{input}{u_1}'

return states.index(next_state)

# Update parameters according to different initial time

# That is, specify the status as state Parameter update at

# y_block by y Part of , shape=(2,)

# pre_state Indicates the current status to be processed

# index Specify the time to process

def update_with_state(y_block,pre_state,index):

# The input is 0

encode_0 = encode_with_state(0,pre_state)

next_state_0 = state_transfer(0,pre_state)

score_0 = hamming_dist(y_block,encode_0)

# Input is 0, And need to be updated

if score_list[pre_state][index]+score_0<score_list[next_state_0][index+1]:

score_list[next_state_0][index+1] = score_list[pre_state][index]+score_0

trace_block[next_state_0][0] = pre_state

trace_block[next_state_0][1] = 0

# The input is 1

encode_1 = encode_with_state(1,pre_state)

next_state_1 = state_transfer(1,pre_state)

score_1 = hamming_dist(y_block,encode_1)

# Input is 1, And need to be updated

if score_list[pre_state][index]+score_1<score_list[next_state_1][index+1]:

score_list[next_state_1][index+1] = score_list[pre_state][index]+score_1

trace_block[next_state_1][0] = pre_state

trace_block[next_state_1][1] = 1

if pre_state==3 or index ==0:

trace_back_list.append(trace_block)

# The default register is initially 00. That is to say , Starting time , The default state is 00

# Start the first one y_block Update

y_block = y[0:2]

trace_block = [[-1,-1] for i in range(4)]

update_with_state(y_block=y_block,pre_state=0,index=0)

# After the start y_block to update

for index in range(2,int(len(y)),2):

y_block = y[index:index+2]

for state in range(len(states)):

if state == 0:

trace_block = [[-1,-1] for i in range(4)]

update_with_state(y_block=y_block,pre_state=state,index=int(index/2))

# Complete the forward process , Start backtracking

# state_trace_index Express What is the status of starting backtracking

state_trace_index = np.argmin(score_list[:,-1])

# Record the original coding information

x = []

for trace in range(len(trace_back_list)-1,-1,-1):

x.append(trace_back_list[trace][state_trace_index][1])

state_trace_index = trace_back_list[trace][state_trace_index][0]

x = list(reversed(x))

print(y," Decoding for ：",x)

return x
# Test code

if __name__ == '__main__':

# Corresponding 1 1 0 0 0

decode_conv([0,1,1,1,0,1,1,1,0,0])

Reference resources

(7,3) Cyclic code coding and decoding C Realization

Convolutional coding and Viterbi decoding - mdnice Ink drop

Noisy channel coding — Linear block code _ Bili, Bili _bilibili

Cyclic code 、 Convolutional codes and their applications python More articles on Implementation

Python Multiprocessing and multithreading in （ One ）
One . background Recently Azkaban In our testing work , We need to simulate online scheduling scenarios in the test environment for stability testing . Therefore, we should exercise again python Old business , adopt python Write scripts to construct online scheduling scenarios . In the process of scripting , Come across such a ...
Python Master's Road 【 6、 ... and 】python Basic string formatting
Python There are two ways to format a string of : Percentage method .format The way The percentage sign is relatively old , and format The way is more advanced , Trying to replace the old way , At present, the two coexist .[PEP-3101] This ...
Python Small and beautiful functions
python Provides some interesting and practical functions , Such as any all zip, These functions can greatly simplify our code , You can handle iterative objects more gracefully , At the same time, you should pay attention to some situations when using it any any(iterable) ...
JavaScript The father of Brendan Eich,Clojure The creator Rich Hickey,Python The creator Van Rossum And so on programming big cow to programmer's occupation suggestion
Software development is a very popular profession at present . According to statistics released by the U.S. Bureau of labor , from 2014 - 2024 year , The demand for developers in the U.S. job market will grow 17%, And this growth rate is higher than the average demand of all occupations 7%. A lot of young people will choose to edit ...
Lovely beans —— Use Beans Thought makes Python Code is easier to maintain
title: Lovely beans -- Use Beans Thought makes Python Code is easier to maintain toc: false comments: true date: 2016-06-19 21:43:33 tags: [Pyth ...
Use Python Save the screenshot （ Don't use PIL）
cause Lecturing at geek College < Use Python Write remote control program > In the course of , It's about the ability to view a screenshot of a controlled computer . If you use PIL, This requirement requires only three lines of code : from PIL import Image ...
Python Coding records
Byte streams and strings When using Python When defining a string , It actually stores a byte string : "abc"--[97][98][99] python2.x By default, all strings are treated as ASCII I'm not going to deal with it , but ...
Apache perform Python Script
Because you often need to execute some commands on the server , Some orders don't bother to knock , Just prepare to write some scripts and call the browser directly , Such as this : Because it's available online Apache, Just put it in it , Of course, access security should be set up , I seem to have written about safety in other essays , here ...
python Develop compiler
introduction I just used python Finished an analysis protobuf A simple compiler for files , deeply ply The realization of lexical analysis and grammar analysis is simple and convenient . Riding through the heat , Clear headed , Write down a summary and experience , For your convenience pythoner Reference use . ...
About solving python Several effective techniques for online problems
I haven't been to blog Garden for a long time after work , Although not very busy , But I'm not as free as I was when I was a student . Go to blog park today , Found that a lot of articles are year-end summary , Think about whether you should sum it up , But not yet , I'll write it when I think about it . Today, I'll write about the technical dry goods I use after work , dispute ...

Random recommendation

JMeter Study -039-JMeter 3.0 Generate dashboard HTML Report chart Chinese garbled
In the near future , It's often asked JMeter 3.0 When using , Generated HTML Report the Chinese garbled problem in the chart . Here it is , Let's briefly talk about the solution . The coding information is as follows : 1. View control csv.xml And so on . Read the ...
One a day linux command ---useradd
1. Add users useradd Options user name The meanings of the options are as follows : -c comment Specifies an annotating description .-d Catalog Specify the user home directory , If this directory does not exist , And use it at the same time -m Options , You can create a home directory .-g ...
Relearning STM32----（ One ）
Study here stm32 In half a year , Although it's obvious that I'm making progress , But I still found the mistake of learning method . Because of the quick success and instant benefit , I'm learning stm32 At the beginning of the , I chose the easiest way , Write programs with library functions , And also because of my quick success and instant benefit , ...
C# Serial port operation class , Including serial port read and write operations
Serial port operation class , These include write and read operations , Class can set serial port parameters . Set the receiver function . Open the serial port resource . Turn off the serial port resource , After the operation is completed , Be sure to turn off the serial port . Receive serial data events . Receive data error event . Get all the current serial ports . Convert byte type to hexadecimal ...
Determine if it's a leap year （bool）
bool It's Boolean , Only one byte , Value false and true #include<iostream>using namespace std;int main(){ int year; bool ...
C# Prevent the shutdown of the display and system standby
original text http://www.cnblogs.com/TianFang/archive/2012/10/12/2721883.html Recently wrote a download program , I found a problem : Hang up and download , The download task will be because ...
node Use buffer Generate pictures
buffer yes node A module in , This module appears because js Without reading and manipulating binary data streams buffer What is it and its function ? Buffer As the name suggests, it is called a buffer , It is used to store data between devices with different speeds or between devices with different priorities ...
Bootstrap3 form - State class
These state classes let you set the color of a row or cell . .active--- The color you set when hovering over a row or cell .success--– Identify successful or positive actions .info---- To mark a common prompt or action .warni ...
Python Concurrent programming -RabbitMQ Message queue
RabbitMQ queue RabbitMQ It's a AMQP On the basis of complete , Reusable enterprise messaging systems . He follow Mozilla Public License Open source licenses . MQ Its full name is Message Queue, Message queue ...
MySQL Summary of methods to prevent inventory oversold
The problem of order oversold is the most important problem related to inventory items , Here I summarize the common methods 1. Simple handling [update & select Merge ]( Optimism lock ) beginTranse( Open transaction )$num = 1; try{ ...
