MicroPython yes Python 3 Simple and efficient implementation of programming language , These include Python A small part of the standard library , And optimized , It can run in microcontroller and restricted environment .
Can be in 256k Code space and 16k Of RAM Internal installation and operation .
Official website ：https://micropython.org/

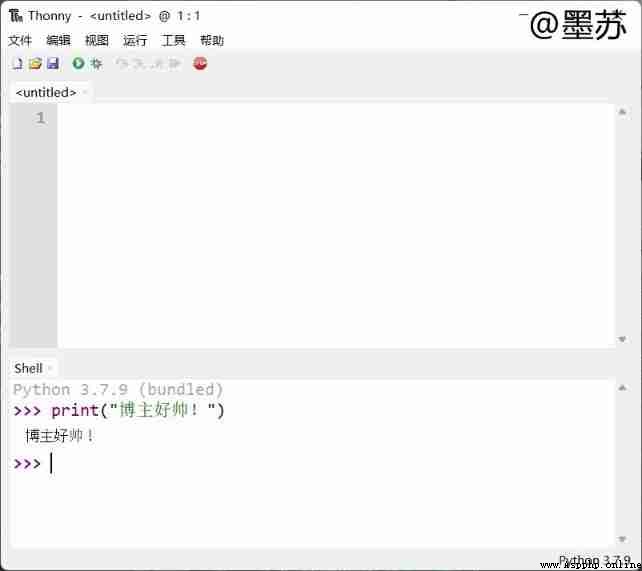

Thonny, yes MicroPython The development environment used .
Download url ：https://thonny.org/
stay Raspberry Pi Pico Found on the BOOTSEL Button .
Hold down BOOTSEL Button , At the same time micro USB Connect the other end of the cable to the computer . This will your Raspberry Pi Pico in USB High capacity storage device .
stay Thonny The lower right corner of the window , You will see the currently used Python edition . single click Python Version and select “MicroPython (Raspberry Pi Pico)”：

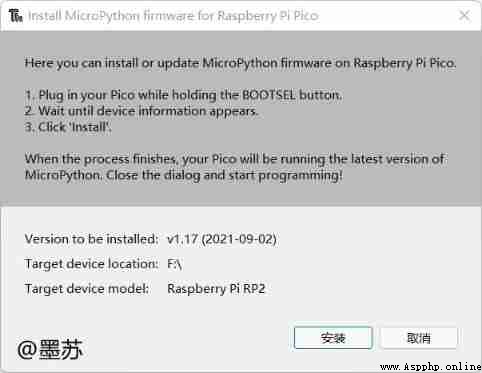

A dialog box will pop up , In your Raspberry Pi Pico Install the latest version of MicroPython The firmware .
single click install Button to copy the firmware to your Raspberry Pi Pico.
The first method is very convenient , But you need an extranet . If there are no conditions, you can choose method 2 .
stay Raspberry Pi Pico Found on the BOOTSEL Button .
Hold down BOOTSEL Button , At the same time micro USB Connect the other end of the cable to the computer . This will your Raspberry Pi Pico in USB High capacity storage device .
Go to the official website to download firmware , Then towed to RPI-RP2 Inside . Then insert it again .
You can use this link :https://micropython.org/download/rp2-pico/rp2-pico-latest.uf2 download
Or this link ：https://micropython.org/resources/firmware/rp2-pico-20210902-v1.17.uf2 download
MicroPython Added hardware specific modules , for example machine It can be used for Raspberry Pi Pico Programming .

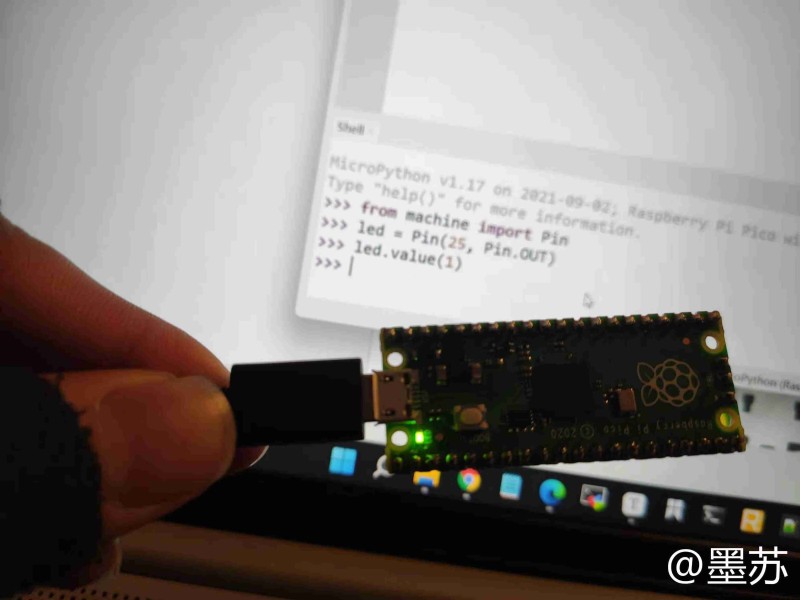

Let's create a machine.Pin And onboard LED The corresponding object , have access to GPIO Pin 25 Access the object .
If you will LED Is set to 1, It will light up .
Enter the following code , Make sure to click... After each line Enter.
from machine import Pin
led = Pin(25, Pin.OUT)
led.value(1)
Type the code to set the value to 0 To close LED.
led.value(0)
More reference ：
Raspberry pie PICO Official development documents ：https://projects.raspberrypi.org/en/projects/getting-started-with-the-pico
