層層遞進Struts1（五）之處理流程

這篇博客我們深入Struts框架執行部分源碼，從ActionServlet的process函數開始，看一下其內在的執行 過程。

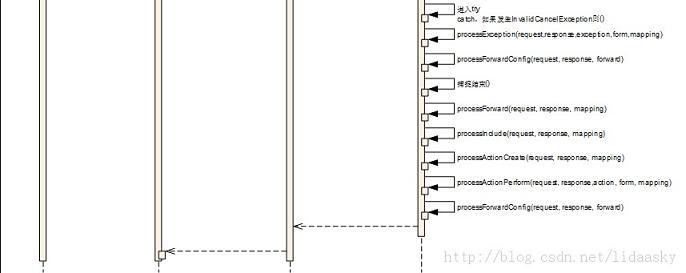

流程圖

以下流程圖展示的是ActionServlet和RequestProcessor兩個類用到的函數，如RequestProcessor調用的 其它類的函數不再說明。

函數說明

我們選擇幾個重要的函數說明，其它函數則簡單說明一下即可。

ActionServlet

process

/**
     * <p>Perform the standard request processing for this request, and create
     * the corresponding response.</p>
     *
     * @param request The servlet request we are processing
     * @param response The servlet response we are creating
     *
     * @exception IOException if an input/output error occurs
     * @exception ServletException if a servlet exception is thrown
     */  protected void process(HttpServletRequest request, HttpServletResponse response)
        throws IOException, ServletException {
        ModuleUtils.getInstance().selectModule(request, getServletContext());
        ModuleConfig config = getModuleConfig(request);


     RequestProcessor processor = getProcessorForModule(config);
        if (processor == null) {
           processor = getRequestProcessor(config);
        }
        processor.process(request, response);
    }
}

在調試時首先進入這個函數（Tomcat啟動完畢，產生請求後），這個函數的作用是獲取加載階段產生的 Module對象，產生struts邏輯處理的主要對象RequestProcessor。

RequestProcessor

process

/**
  * <p>Process an <code>HttpServletRequest</code> and create the
  * corresponding <code>HttpServletResponse</code> or dispatch


  * to another resource.</p>
  *
  * @param request The servlet request we are processing
  * @param response The servlet response we are creating
  *
  * @exception IOException if an input/output error occurs
  * @exception ServletException if a processing exception occurs
  */ public void process(HttpServletRequest request,


                HttpServletResponse response)
     throws IOException, ServletException {


    // Wrap multipart requests with a special wrapper
     request = processMultipart(request);
     // Identify the path component we will use to select a mapping
     String path = processPath(request, response);
     if (path == null) {
         return;


}
     if (log.isDebugEnabled()) {
         log.debug("Processing a '" + request.getMethod() +
                   "' for path '" + path + "'");
     }
     // Select a Locale for the current user if requested
processLocale(request, response);
     // Set the content type and no-caching headers if requested
     processContent(request, response);
     processNoCache(request, response);
     // General purpose preprocessing hook
     if (!processPreprocess(request, response)) {
         return;
     }
     this.processCachedMessages(request, response);
     // Identify the mapping for this request
     ActionMapping mapping = processMapping(request, response, path);
     if (mapping == null) {
         return;


   }
     // Check for any role required to perform this action
     if (!processRoles(request, response, mapping)) {
         return;
     }
     // Process any ActionForm bean related to this request
     ActionForm form = processActionForm(request, response, mapping);
     processPopulate(request, response, form, mapping);
     // Validate any fields of the ActionForm bean, if applicable
     try {
         if (!processValidate(request, response, form, mapping)) {
             return;
         }
     } catch

(InvalidCancelException e) {
         ActionForward forward = processException(request, response, e, form, mapping);
         processForwardConfig(request, response, forward);


      return;
     } catch (IOException e) {
         throw e;
     } catch (ServletException e) {
         throw e;
     }
     // Process a forward or include specified by this mapping
     if (!processForward(request, response, mapping)) {
         return;
     }
     if (!processInclude(request, response, mapping)) {
         return;
     }
     // Create or acquire the Action instance to process this request


  Action action = processActionCreate(request, response, mapping);
     if (action == null)

{
         return;
     }
     // Call the Action instance itself
     ActionForward

forward =
         processActionPerform(request, response,


action, form, mapping);
     // Process the returned ActionForward instance


processForwardConfig(request, response, forward);
 }

process是RequestProcessor對象主要的邏輯處理函數，根據上面的流程圖可以看到，整個邏輯處理都是在 這個函數中完成，它所調用的函數實現的功能如下：

processMultipart

這個函數的作用是判斷是否是文件上傳請求，如果是則特殊處理。

/**
 * <p>If

this is a multipart request, wrap it with a special wrapper.
 * Otherwise, return the

request unchanged.</p>
 *
 * @param request The HttpServletRequest we are

processing
 */
protected HttpServletRequest processMultipart(HttpServletRequest request)

{
    if (!"POST".equalsIgnoreCase(request.getMethod())) {
        return

(request);
    }
    String contentType = request.getContentType();
    if

((contentType != null) &&
        contentType.startsWith("multipart/form-

data")) {
        return (new MultipartRequestWrapper(request));
    } else {


   return (request);
    }
}

processPath

獲取並截取請求，處理後變為需要的字符串，例如請求：http://localhost:8080/struts_login/login.do ，處理後的字符串為/login.do。

/**
  * <p>Identify and return the path

component (from the request URI) that
  * we will use to select an

<code>ActionMapping</code> with which to dispatch.
  * If no such path can be

identified, create an error response and return
  * <code>null</code>.</p>


  *
  * @param request The servlet request we are processing
  * @param response The

servlet response we are creating
  *
  * @exception IOException if an input/output error

occurs
  */
 protected String processPath(HttpServletRequest request,


             HttpServletResponse response)
     throws IOException {
     String path =

null;
     // For prefix matching, match on the path info (if any)
     path = (String)

request.getAttribute(INCLUDE_PATH_INFO);
     if (path == null) {
         path =

request.getPathInfo();
     }
     if ((path != null) && (path.length() > 0))

{
         return (path);
     }
     // For extension matching, strip the module

prefix and extension
     path = (String) request.getAttribute(INCLUDE_SERVLET_PATH);


if (path == null) {
         path = request.getServletPath();
     }
     String prefix

= moduleConfig.getPrefix();
     if (!path.startsWith(prefix)) {
         String msg =

getInternal().getMessage("processPath");

         log.error(msg +

" " + request.getRequestURI());
         response.sendError

(HttpServletResponse.SC_BAD_REQUEST, msg);
         return null;
     }
     path =

path.substring(prefix.length());
     int slash = path.lastIndexOf("/");


int period = path.lastIndexOf(".");
     if ((period >= 0) && (period

> slash)) {
         path = path.substring(0, period);
     }
     return

(path);
 }

設置相關函數

processLocale、processContent、processNoCache、processCachedMessages，這四個函數的作用分別是 ：設置國際化文件、設置內容類型、設置取消緩存、設置清楚session中struts的錯誤信息。

processMapping

根據上面生成的path，實例化對應的ActionMapping對象，如果此對象不為空則加載到request中，對應名 稱為Globals.MAPPING_KEY，如果為空，發送異常並添加到response中。

// If a mapping is

found, put it in the request and return it
if (mapping != null) {


request.setAttribute(Globals.MAPPING_KEY, mapping);
    return (mapping);
}
// Locate

the mapping for unknown paths (if any)
ActionConfig configs[] =

moduleConfig.findActionConfigs();
for (int i = 0; i < configs.length; i++) {
    if

(configs[i].getUnknown()) {
        mapping = (ActionMapping) configs[i];


request.setAttribute(Globals.MAPPING_KEY, mapping);
        return (mapping);
    }
}

processRoles

Action執行是否需要特定的角色權限，如果不需要，則繼續執行。

String roles[] =

mapping.getRoleNames();
if ((roles == null) || (roles.length < 1)) {
    return

(true);
}

processActionForm

創建ActionForm並檢測此Action的作用域，如果是Request則添加到request中，如果是Session則添加到 session中。

// Create (if necessary) a form bean to use
 ActionForm instance =

RequestUtils.createActionForm
     (request, mapping, moduleConfig, servlet);
 if

(instance == null) {
     return (null);
 }
 // Store the new instance in the

appropriate scope
 if (log.isDebugEnabled()) {
     log.debug(" Storing ActionForm

bean instance in scope '" +
         mapping.getScope() + "' under attribute key

'" +
         mapping.getAttribute() + "'");
 }
 if

("request".equals(mapping.getScope())) {
     request.setAttribute

(mapping.getAttribute(), instance);
 } else {
     HttpSession session =

request.getSession();
     session.setAttribute(mapping.getAttribute(), instance);
 }

ActionForm相關

processPopulate這個函數的作用是：調用processPopulate()方法，如果存在為ActionMapping配置的 ActionForm，則封裝請求對象中的數據到ActionForm 中，在進行封裝之前，先調用ActionForm 的reset()方 法進行屬性值的默認化

processValidate：如果action元素的屬性validate被設置為true ，則進一步調用validate()方法進行規 則校驗。如果validate()方法校驗失敗，就會保存一個ActionErrors 對象到請求區域中，請求將會自動重定 向到action映射的input屬性所指定的頁面中；如果校驗通過或在action 映射中沒有配置ActionForm，則繼續 處理請求。

異常處理

process這個函數中，包含一個try...catch塊，如果出現InvalidCancelException則執行兩個函數。

processException，將異常寫入日志警告文件，並跑出異常；processForwardConfig，與下面最後執行的 一個函數相同，捕獲結束

跳轉路徑

processForward、processInclude：這個兩個函數的作用是，檢測struts-config下<action>元素的 forward和include屬性的值，如有配置，則把forward和include 請求放在配置的頁面內；processForward() 調用 RequestDispatcher.forward(),而processInclude()調用RequestDispatcher.include()。

如果同時配置了forward 和include 屬性，Struts會優先選擇forward。

processActionCreate

這個函數的作用是從struts-config下<action>的type屬性得到Action類名，創建並返回它的實例。

Action instance = null;
synchronized (actions) {
    // Return any existing

Action instance of this class
    instance = (Action) actions.get(className);
    if

(instance != null) {
        if (log.isTraceEnabled()) {
            log.trace("

Returning existing Action instance");
        }
        return (instance);
    }


    // Create and return a new Action instance
    if (log.isTraceEnabled()) {


log.trace("  Creating new Action instance");
    }
    try {
        instance

= (Action) RequestUtils.applicationInstance(className);
        // :TODO: Maybe we should

propagate this exception
        // instead of returning null.
    } catch (Exception e)

{
        log.error(
            getInternal().getMessage("actionCreate",

mapping.getPath()),
            e);
        response.sendError(


HttpServletResponse.SC_INTERNAL_SERVER_ERROR,
            getInternal().getMessage

("actionCreate", mapping.getPath()));

        return (null);
    }


instance.setServlet(this.servlet);
    actions.put(className, instance);
}
return

(instance);

processActionPerform

執行自己寫的Action中execute函數，當然包含跳轉邏輯：

try {
    return

(action.execute(mapping, form, request, response));
} catch (Exception e) {
    return

(processException(request, response,
                             e, form, mapping));
}

processForwardConfig

獲取即將跳轉的路徑：

String forwardPath = forward.getPath();
String uri =

null;
// paths not starting with / should be passed through without any processing
// (ie.

they're absolute)
if (forwardPath.startsWith("/")) {
    uri =

RequestUtils.forwardURL(request, forward, null);    // get module relative uri
} else {


 uri = forwardPath;
}

doForward

獲取RequestDispatcher，並執行跳轉。

if (request instanceof MultipartRequestWrapper)

{
    request = ((MultipartRequestWrapper) request).getRequest();
}
RequestDispatcher

rd = getServletContext().getRequestDispatcher(uri);
if (rd == null) {


response.sendError(
        HttpServletResponse.SC_INTERNAL_SERVER_ERROR,


getInternal().getMessage("requestDispatcher", uri));
    return;
}


rd.forward(request, response);

總結

如果我們忽略函數，只從宏觀上看，可以總結為：

讀取配置文件

獲取訪問地址

設置Struts

創建、賦值、驗證ActionForm

異常處理

創建Action

執行Action中的邏輯

頁面跳轉

至此，如果不追究到最底層的函數，struts的執行流程已經講解完畢，如果有問題，歡迎大家指出。
