JSF Spring Hibernate整合：JSH1

JSF1.1 + Spring2.0 + Hibernate3.1

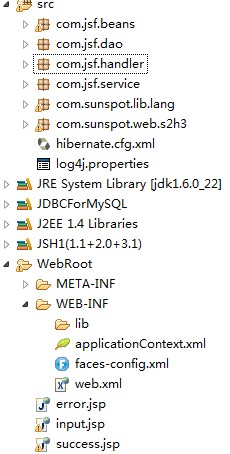

圖示：

JSF1.1 Jar包 ：

MyFaces1.1 Jar包：

Spring與Hibernate包的配置與文章《SSH1基本配置(Struts1.2 + Spring2.0 + Hibernate3.1)》一致

地址： http://sunspot.blog.51cto.com/372554/468430

web.xml 配置：

<!-- JSF Configuration -->
    <servlet>
        <servlet-name>FacesServlet</servlet-name>
        <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
        <load-on-startup>0</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>FacesServlet</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>

    <!-- Spring Configuration -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/applicationContext.xml</param-value>
    </context-param>

    <listener>
        <listener-class>
            org.springframework.web.context.ContextLoaderListener
        </listener-class>
    </listener>

    <filter>
        <filter-name>CharacterEncoding</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>gb2312</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncoding</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- Sun for JSF Listener Configuration -->
    <listener>
        <listener-class>
            com.sun.faces.config.ConfigureListener
        </listener-class>
    </listener>

    <!-- MyFaces for JSF Listener Configuration -->
    <listener>
        <listener-class>
            org.apache.myfaces.webapp.StartupServletContextListener
        </listener-class>
    </listener>

    <welcome-file-list>
        <welcome-file>input.faces</welcome-file>
    </welcome-file-list>

faces-config.xml

 這裡必須要配置Delegation Configuration

<!-- Delegation Configuration -->
    <application>
        <variable-

resolver>org.springframework.web.jsf.DelegatingVariableResolver</variable-resolver>
    </application>

    <!-- Bean Configuration -->
    <managed-bean>
        <managed-bean-name>userBean</managed-bean-name>
        <managed-bean-class>com.jsf.beans.User</managed-bean-class>
        <managed-bean-scope>request</managed-bean-scope>
<!-- 注入Service，userService已在Spring中配置 -->
        <managed-property>
            <property-name>service</property-name>
            <value>#{userService}</value>
        </managed-property>
    </managed-bean>

    <!-- Navigation Configuration -->
    <navigation-rule>
        <from-view-id>/input.jsp</from-view-id>
        <navigation-case>
            <from-outcome>success</from-outcome>
            <to-view-id>/success.jsp</to-view-id>
        </navigation-case>
        <navigation-case>
            <from-outcome>error</from-outcome>
            <to-view-id>/error.jsp</to-view-id>
        </navigation-case>
    </navigation-rule>

applicationContext.xml

這裡的Service切記將scope設置為 prototype類型，該類型持有狀態對象

<!-- Service Configuration -->
<bean name="userService" id="userService" class="com.jsf.service.UserService"
        factory-method="getInstance" lazy-init="false" scope="prototype"/>

User.java

UserService與SSH1中的一致。

http://sunspot.blog.51cto.com/372554/468430

package

com.jsf.beans;
import java.io.Serializable;
import com.jsf.service.UserService;

public class User  implements Serializable{
    private String id;
    private String name;
    private String password;
    private Integer age;
    public User() {
        super();
    }
    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    private UserService service;

    public UserService getService() {
        return service;
    }

    public void setService(UserService service) {
        this.service = service;
    }

    public String execute() {
        if(service.validate(this.id, this.password)) {
            User user = service.getUser(this.id);
            this.setAge(user.getAge());
            this.setName(user.getName());
            return "success";
        }
        return "error";
    }
}

總結：

重點在於配置faces-config.xml中要托管的解析器DelegatingVariableResolver

在 web.xml中使用Sun對JSF的監聽，MyFaces的監聽可不使用
