hibernate3學習筆記(十九)｜關系映射：一對一

編輯：關於JAVA

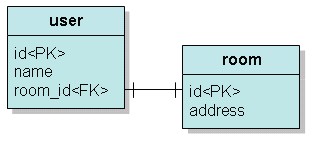

A.唯一外鍵關聯

DDL：

1.CREATE TABLE user (
2.    id INT(11) NOT NULL auto_increment PRIMARY KEY,
3.    name VARCHAR(100) NOT NULL default '',
4.    room_id INT(11)
5.);
6.
7.CREATE TABLE room (
8.    id INT(11) NOT NULL auto_increment PRIMARY KEY,
9.    address VARCHAR(100) NOT NULL default ''
10.);

User.java

1.package com.hb3.pack_02.model;
2.
3.public class User {
4.
5.    private Integer id;
6.    private String name;
7.    private Room room;
8.
9.    public User() {
10.    }
11.
12.    public Integer getId() {
13.        return id;
14.    }
15.    public void setId(Integer id) {
16.        this.id = id;
17.    }
18.    public String getName() {
19.        return name;
20.    }
21.    public void setName(String name) {
22.        this.name = name;
23.    }
24.    public Room getRoom() {
25.        return room;
26.    }
27.    public void setRoom(Room room) {
28.        this.room = room;
29.    }
30.}

Room.java

1.package com.hb3.pack_02.model;
2.
3.public class Room {
4.
5.    private Integer id;
6.    private String address;
7.    private User user;
8.
9.    public Room() {
10.    }
11.
12.    public Integer getId() {
13.        return id;
14.    }
15.    public void setId(Integer id) {
16.        this.id = id;
17.    }
18.    public String getAddress() {
19.        return address;
20.    }
21.    public void setAddress(String address) {
22.        this.address = address;
23.    }
24.    public User getUser() {
25.        return user;
26.    }
27.    public void setUser(User user) {
28.        this.user = user;
29.    }
30.}

User.hbm.xml

1.<?xml version="1.0" encoding="UTF-8"?>
2.
3.<!DOCTYPE hibernate-mapping PUBLIC
4.    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
5.    "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
6.
7.<hibernate-mapping>
8.
9.    <class name="com.hb3.pack_02.model.User" table="user">
10.        <id name="id" column="id" type="java.lang.Integer">
11.            <generator class="native"/>
12.        </id>
13.
14.        <property name="name" column="name" type="java.lang.String"/>
15.
16.        <many-to-one name="room"
17.                     column="room_id"
18.                     class="com.hb3.pack_02.model.Room"
19.                     cascade="all"
20.                     outer-join="true"
21.                     unique="true"/>
22.    </class>
23.
24.</hibernate-mapping>

Room.hbm.xml

1.<?xml version="1.0" encoding="UTF-8"?>
2.
3.<!DOCTYPE hibernate-mapping PUBLIC
4.    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
5.    "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
6.
7.<hibernate-mapping>
8.
9.    <class name="com.hb3.pack_02.model.Room" table="room">
10.        <id name="id" column="id">
11.            <generator class="native"/>
12.        </id>
13.
14.        <property name="address"
15.                  column="address"
16.                  type="java.lang.String"/>
17.
18.        <one-to-one name="user"
19.                    class="com.hb3.pack_02.model.User"
20.                    property-ref="room"/>
21.    </class>
22.
23.</hibernate-mapping>

測試代碼：

1.package com.hb3.pack_02;
2.
3.import org.hibernate.Session;
4.import org.hibernate.SessionFactory;
5.import org.hibernate.Transaction;
6.import org.hibernate.cfg.Configuration;
7.
8.import com.hb3.pack_02.model.Room;
9.import com.hb3.pack_02.model.User;
10.
11.public class BusinessService {
12.
13.    public static void main(String[] args) {
14.
15.        Configuration config = new Configuration().configure();
16.        SessionFactory sessionFactory = config.buildSessionFactory();
17.        Session session = sessionFactory.openSession();
18.
19.        User user1 = new User();
20.        user1.setName("shenbin");
21.        Room room1 = new Room();
22.        room1.setAddress("NTU-M8-419");
23.        user1.setRoom(room1);
24.
25.        User user2 = new User();
26.        user2.setName("chanyan");
27.        Room room2 = new Room();
28.        room2.setAddress("NTU-M8-418");
29.        user2.setRoom(room2);
30.
31.        Transaction tx = session.beginTransaction();
32.        session.save(user1);
33.        session.save(user2);
34.        tx.commit();
35.
36.        Room room = (Room) session.load(Room.class, new Integer(1));
37.        System.out.println(room.getUser().getName());
38.
39.        session.close();
40.        sessionFactory.close();
41.    }
42.}

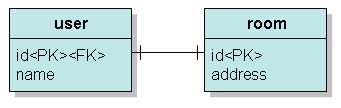

A.主鍵關聯

DDL：

1.CREATE TABLE user (
2.    id INT(11) NOT NULL auto_increment PRIMARY KEY,
3.    name VARCHAR(100) NOT NULL default ''
4.);
5.
6.CREATE TABLE room (
7.    id INT(11) NOT NULL auto_increment PRIMARY KEY,
8.    address VARCHAR(100) NOT NULL default ''
9.);

Room和User類同上。

Room.hbm.xml

1.<?xml version="1.0" encoding="UTF-8"?>
2.
3.<!DOCTYPE hibernate-mapping PUBLIC
4.    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
5.    "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
6.
7.<hibernate-mapping>
8.
9.    <class name="com.hb3.pack_18.model.Room" table="room">
10.
11.        <id name="id" column="id">
12.            <generator class="foreign">
13.                <param name="property">user</param>
14.            </generator>
15.        </id>
16.
17.        <property name="address"
18.                  column="address"
19.                  type="java.lang.String"/>
20.
21.        <one-to-one name="user"
22.                    class="com.hb3.pack_18.model.User"
23.                    constrained="true"/>
24.    </class>
25.
26.</hibernate-mapping>

User.hbm.xml

1.<?xml version="1.0" encoding="UTF-8"?>
2.
3.<!DOCTYPE hibernate-mapping PUBLIC
4.    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
5.    "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
6.
7.<hibernate-mapping>
8.
9.    <class name="com.hb3.pack_18.model.User" table="user">
10.
11.        <id name="id" column="id" type="java.lang.Integer">
12.            <generator class="native"/>
13.        </id>
14.
15.        <property name="name" column="name" type="java.lang.String"/>
16.
17.        <one-to-one name="room"
18.                    class="com.hb3.pack_18.model.Room"
19.                    cascade="all"/>
20.    </class>
21.
22.</hibernate-mapping>

測試代碼：

1.package com.hb3.pack_18;
2.
3.import java.io.IOException;
4.import java.sql.SQLException;
5.
6.import org.hibernate.Session;
7.import org.hibernate.SessionFactory;
8.import org.hibernate.Transaction;
9.import org.hibernate.cfg.Configuration;
10.
11.import com.hb3.pack_18.model.Room;
12.import com.hb3.pack_18.model.User;
13.
14.public class BusinessService {
15.
16.    public static void main(String[] args) throws IOException, SQLException {
17.
18.        Configuration config = new Configuration().configure();
19.        SessionFactory sessionFactory = config.buildSessionFactory();
20.        Session session = sessionFactory.openSession();
21.
22.
23.        User user1 = new User();
24.        user1.setName("chanyan");
25.        Room room1 = new Room();
26.        room1.setAddress("NTU-M8-419");
27.        user1.setRoom(room1);
28.        room1.setUser(user1);
29.
30.        User user2 = new User();
31.        user2.setName("shenbin");
32.        Room room2 = new Room();
33.        room2.setAddress("NTU-M8-418");
34.        user2.setRoom(room2);
35.        room2.setUser(user2);
36.
37.        Transaction tx = session.beginTransaction();
38.        session.save(user1);
39.        session.save(user2);
40.        tx.commit();
41.
42.
43.        session.close();
44.        sessionFactory.close();
45.    }
46.}
