BootStrap Jstree 樹形菜單的增刪改查的實現源碼

編輯:關於JAVA

BootStrap Jstree 樹形菜單的增刪改查的實現源碼。本站提示廣大學習愛好者:(BootStrap Jstree 樹形菜單的增刪改查的實現源碼)文章只能為提供參考,不一定能成為您想要的結果。以下是BootStrap Jstree 樹形菜單的增刪改查的實現源碼正文


1.首先需下載jstree的插件點擊打開鏈接

2.在頁面引入插件js文件css文件

<link rel="stylesheet" href="plugins/jstree/themes/classic/style.css" rel="external nofollow" >
<script type="text/javascript" src="plugins/jstree/_lib/jquery.js"></script>
<script type="text/javascript"
 src="plugins/jstree/_lib/jquery.cookie.js"></script>
<script type="text/javascript"
 src="plugins/jstree/_lib/jquery.hotkeys.js"></script>
<script type="text/javascript" src="plugins/jstree/jquery.jstree.js"></script>

3.初始化控件

 1)html

<div id="demo2" class="demo" ></div>

2)js 使用 demo2來初始化樹形控件

<script type="text/javascript" class="source below">
 $(function() {
 $("#demo2").jstree(
  {
  "json_data" : {
   "ajax" : {
   "url" : "http://localhost:8080/MemberManager/DepartmentTreeJson",
   "data" : function(n) {
     // the result is fed to the AJAX request `data` option
     return {
     "operation" : "get_children",
     "id" : n.attr ? n
      .attr(
      "id")
      .replace(
      "node_",
      "")
      : 1
     };
    }
    }
   },
  "plugins" : [
    "themes",
    "json_data",
    "ui",
    "crrm",
    "contextmenu",
    "search" ],
   })
  .bind("loaded.jstree",
   function(event, data) {
   })
  .bind(
   "select_node.jstree",
   function(event, data) {
   if (data.rslt.obj
    .attr("id") != undefined) {
   }
   })
  .bind(
   "remove.jstree",
   function(e, data) {
   data.rslt.obj.each(function() {
    $.ajax({
     async : false,
     type : 'POST',
     url : "http://localhost:8080/MemberManager/CreateNodeForDepartment",
     data : {
      "operation" : "remove_node",
      "id" : this.id.replace("node_", "")
     },
     success : function(r) {
      if (!r.status) {
      data.inst.refresh();
      }
     }
     });
    });
   })
  .bind(
   "remove.jstree",
   function(e, data) {
   data.rslt.obj.each(function() {
    $.ajax({
     async : false,
     type : 'POST',
     url : "http://localhost:8080/MemberManager/CreateNodeForDepartment",
     data : {
      "operation" : "remove_node",
      "id" : this.id
      .replace(
      "node_",
      "")
     },
     success : function(
      r) {
      if (!r.status) {
      data.inst.refresh();
      }
     }
     });
    });
   })
  .bind(
   "create.jstree",
   function(e, data) {
   $.post(
    "http://localhost:8080/MemberManager/CreateNodeForDepartment",
    {
    "operation" : "create_node",
    "id" : data.rslt.parent
     .attr(
     "id")
     .replace(
     "node_",
     ""),
    "position" : data.rslt.position,
    "title" : data.rslt.name,
    "type" : data.rslt.obj
     .attr("rel")
    },
    function(r) {
    if (r.status) {
     $(data.rslt.obj).attr("id", "node_" + r.id);
    } else {
     data.inst.refresh();
     $.jstree.rollback(data.rlbk);
    }
    });
   })
  .bind(
   "rename.jstree",
   function(e, data) {
   $.post(
    "http://localhost:8080/MemberManager/CreateNodeForDepartment",
    {
    "operation" : "rename_node",
    "id" : data.rslt.obj
     .attr(
     "id")
     .replace(
     "node_",
     ""),
    "title" : data.rslt.new_name
    },
    function(r) {
    if (!r.status) {
     data.inst.refresh();
     $.jstree.rollback(data.rlbk);
    }
    });
   })
   // 1) the loaded event fires as soon as data is parsed and inserted
   // 2) but if you are using the cookie plugin or the core `initially_open` option:
  .one("reopen.jstree",
   function(event, data) {
   })
   // 3) but if you are using the cookie plugin or the UI `initially_select` option:
  .one("reselect.jstree",
   function(event, data) {
   });
  });
 </script>
</pre>4.代碼解析<p></p><p><pre name="code" class="java">
import java.util.List;
public class Department {
 // 部門id
 private String departmentid;
 // 部門名稱
 private String name;
 // 父級部門ID
 private String parentid;
 //同級之間的排序。排序id 小的排前面
 private String orders;
 //子節點
 private List<Department> childNode;
 public List<Department> getChildNode() {
 return childNode;
 }
 public void setChildNode(List<Department> childNode) {
 this.childNode = childNode;
 }
 public String getDepartmentid() {
 return departmentid;
 }
 public void setDepartmentid(String departmentid) {
 this.departmentid = departmentid;
 }
 public String getName() {
 return name;
 }
 public void setName(String name) {
 this.name = name;
 }
 public String getParentid() {
 return parentid;
 }
 public void setParentid(String parentid) {
 this.parentid = parentid;
 }
 public String getOrders() {
 return orders;
 }
 public void setOrders(String orders) {
 this.orders = orders;
 }
 @Override
 public String toString(){
 return "[departmentID:"+this.departmentid+
 "departmentName:"+this.name+
 "parentID:"+this.parentid+"orders:"+this.orders+"]";
 }
}

4.代碼解析

插件初始化我這裡使用了插件的兩個參數json_data,以及plugins注意看代碼結構

4.1上圖兩個部分即初始化部分重點解釋下plugins這個參數是jstree整合插件的地方theme表示主題,json_data將上文定義的json_data也就

是Ajax從後要獲取json數據返回到前台頁面。contextmenu,是鼠標右鍵在樹形節點上會彈出增刪改查的菜單。

4.2 json數據的格式

先看展示

這是一個可以無限極下分的菜單,我們可以根據上圖的目錄結構對照下面的json數據結構來看,這樣會更清晰。

{"data":"軟件及數據","attr":{"id":"e59365b9-7b2a-43a3-b10a-cfe03d5eb004"},
 "children":[
 {"data":"創新組","attr":{"id":"73919359-2a1b-4ee7-bcc2-56949e8560e8"},
  "children":[
   {"data":"大數據","attr":{"id":"a7ea6a0f-0b78-4064-803b-f2e0a95d914f"},
   "children":[
    {"data":"研發","attr":{"id":"fc20e438-e7b9-4cca-be6a-49965daab528"},"children":[]}]}]},
 {"data":"項目管理","attr":{"id":"e1bdae71-6cfb-4e8c-ab29-a3eb03b9961d"},"children":[]}
 ]
},

4.4組裝json數據,我使用的是首先查找到所有的父節點即parentid=1的時候,然後遞歸將所有的子節點加到List<chiledren>對象裡面,緊接著再通過循環遞歸組裝無限極菜單json數據下面看數據庫數據結構

import java.util.List;
public class Department {
 // 部門id
 private String departmentid;
 // 部門名稱
 private String name;
 // 父級部門ID
 private String parentid;
 //同級之間的排序。排序id 小的排前面
 private String orders;
 //子節點
 private List<Department> childNode;
 public List<Department> getChildNode() {
  return childNode;
 }
 public void setChildNode(List<Department> childNode) {
  this.childNode = childNode;
 }
 public String getDepartmentid() {
  return departmentid;
 }
 public void setDepartmentid(String departmentid) {
  this.departmentid = departmentid;
 }
 public String getName() {
  return name;
 }
 public void setName(String name) {
  this.name = name;
 }
 public String getParentid() {
  return parentid;
 }
 public void setParentid(String parentid) {
  this.parentid = parentid;
 }
 public String getOrders() {
  return orders;
 }
 public void setOrders(String orders) {
  this.orders = orders;
 }
 @Override
 public String toString(){
  return "[departmentID:"+this.departmentid+
  "departmentName:"+this.name+
  "parentID:"+this.parentid+"orders:"+this.orders+"]";
 }
}

4.5 此處servlet為客戶端提供jstree的json_data。就是在初始化控件時候有ajax調用這個servlet獲取json數據並返回給json_data

import java.io.IOException;
import java.io.PrintWriter;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import cn.goldwind.www.service.DepartmentService;
import cn.goldwind.www.serviceimpl.DepartmentServiceImpl;
public class DepartmentTreeJson extends HttpServlet {
 /**
  *
  */
 private static final long serialVersionUID = 1L;
 public DepartmentTreeJson() {
  super();
 }
 @Override
 public void destroy() {
  super.destroy(); // Just puts "destroy" string in log
  // Put your code here
 }
 @Override
 public void doGet(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {
  request.setCharacterEncoding("utf-8");
  response.setContentType("text/html;charset=UTF-8");
  PrintWriter out = response.getWriter();
  DepartmentService deptService=new DepartmentServiceImpl();
  //此處調用創建樹節點的方法
  StringBuilder json=deptService.createTreeNode();
  json.deleteCharAt(json.length()-1);
  System.out.println(json);
  out.print("["+json+"]");
  out.flush();
  out.close();
 }
 @Override
 public void doPost(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {
  doGet(request, response);
 }
 @Override
 public void init() throws ServletException {
  // Put your code here
 }
}

4.6上面servlet我們看下createTreeNode方法

這裡是創建json的核心。

1)首先獲取所有的(parent=1)根節點

@Override
 public StringBuilder createTreeNode() {
  //創建部門集合
  List<Department> departments = new ArrayList<Department>();
  //放置所有的根節點部門實體
  departments = queryByParentID("1");
  if (departments != null) {
   return json(departments);
  }
  return null;
 }
 public StringBuilder json(List<Department> departments) {
  for (int i = 0; i < departments.size(); i++) {
   json.append('{');
   json.append("\"data\":\"").append(departments.get(i).getName())
     .append("\",");
   json.append("\"attr\":{\"id\":\"").append(departments.get(i).getDepartmentid()).append("\"},");
   List<Department> deptchild = queryByParentID(departments.get(i)
     .getDepartmentid());
   json.append("\"children\":");
   json.append('[');
   if (deptchild != null) {
    json(deptchild);
    if("1".equals(departments.get(i).getParentid())){
     json.deleteCharAt(json.length()-1);
     json.append(']');
     json.append('}');
     json.append(',');
    }if(!"1".equals(departments.get(i).getParentid())&&deptchild!=null){
     json.deleteCharAt(json.length()-1);
     json.append(']');
     json.append('}');
     json.append(',');
    }
   } else{
    json.append(']');
    json.append('}');
    json.append(',');
   }
  }
  return json;
 }
 @Override
 public List<Department> queryByParentID(String parentID) {
  BaseDaoTemplate bd = new BaseDaoTemplate();
  List<Department> departments = new ArrayList<Department>();
  String sql = "select departmentid,name,parentid,orders from department where parentid=? ";
  List<Object> params = new ArrayList<Object>();
  params.add(parentID);
  departments = bd.findAllData(Department.class, sql, params);
  if (departments.size() > 0) {
   return departments;
  }
  return null;
 }

4.7

1.如何創建節點通過右鍵點擊樹形菜單彈出增加移除等操作(需在plugins裡面加入contextmenu 這個例子就有)

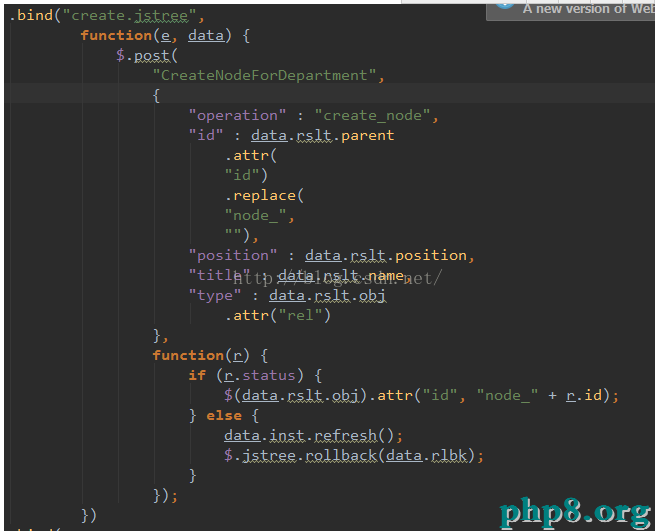

2.綁定jstree的操作,此處以增加節點為例不一一例舉

原理;通過點擊創建按鈕(contextMenu)即選定樹節點右鍵彈出按鈕。調用上圖的方法,上圖方法post方法通過ajax請求後台數據把創建的樹節點保存到數據庫,

operation:操作的方式(創建,移除,修改。。);

id:當前節點的id 即你創建下一個節點的parentID。

title:創建的新節點的名稱

有這些數據就可以字啊後台獲取數據然後增加到數據庫。

4.8 創建 servlet處理所有的操作(創建,移除,修改。。)

import java.io.IOException;
import java.io.PrintWriter;
import java.util.UUID;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import cn.goldwind.www.pojo.Department;
import cn.goldwind.www.service.DepartmentService;
import cn.goldwind.www.serviceimpl.DepartmentServiceImpl;
public class CreateNodeForDepartment extends HttpServlet {
 private static final long serialVersionUID = 1L;
 public CreateNodeForDepartment() {
  super();
 }
 @Override
 public void destroy() {
  super.destroy(); // Just puts "destroy" string in log
  // Put your code here
 }
 @Override
 public void doGet(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {
  request.setCharacterEncoding("utf-8");
  response.setContentType("text/html;charset=UTF-8");
  PrintWriter out = response.getWriter();
  DepartmentService deptService=new DepartmentServiceImpl();
  if("rename_node".equals(request.getParameter("operation"))){
   String id=request.getParameter("id");
   String title=request.getParameter("title");
   Department dept=new Department();
   dept.setDepartmentid(id);
   deptService.modifyDepartment(dept, title);
  }else if("create_node".equals(request.getParameter("operation"))){
   String id=request.getParameter("id");
   String title=request.getParameter("title");
   Department dept=new Department();
   dept.setDepartmentid(UUID.randomUUID().toString());
   dept.setName(title);
   dept.setParentid(id);
   deptService.insertDepartment(dept);
  }else if("remove_node".equals(request.getParameter("operation"))){
   String id=request.getParameter("id");
   Department dept=new Department();
   dept.setDepartmentid(id);
   deptService.deleteDepartment(dept);
  }
  out.flush();
  out.close();
 }
 /**
  * The doPost method of the servlet. <br>
  *
  * This method is called when a form has its tag value method equals to
  * post.
  *
  * @param request
  *   the request send by the client to the server
  * @param response
  *   the response send by the server to the client
  * @throws ServletException
  *    if an error occurred
  * @throws IOException
  *    if an error occurred
  */
 @Override
 public void doPost(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {
  doGet(request, response);
 }
 /**
  * Initialization of the servlet. <br>
  *
  * @throws ServletException
  *    if an error occurs
  */
 @Override
 public void init() throws ServletException {
  // Put your code here
 }
}

好了這就完成了,當然這裡面的樹也是可以自定義圖標,自定義按鈕等操作,具體可以自己去探究。

以上所述是小編給大家介紹的BootStrap Jstree 樹形菜單的增刪改查的實現源碼,希望對大家有所幫助,如果大家有任何疑問請給我留言,小編會及時回復大家的。在此也非常感謝大家對網站的支持!

  1. 上一頁:
  2. 下一頁:
Copyright © 程式師世界 All Rights Reserved
