JavaMe開發：也說MVC設計模式(1)

【更新】本文將適時做出更新，所以現在不是終稿，如有不當之處，敬請指出。

【問題描述】介紹設計模式的文章和書很多，但只有使用時，才能理解設計模式的妙處。接上一篇《JavaMe連載(2)-低級界面繪圖之菜單》，本文一則對UIController作出解釋，一則將自己理解的MVC設計模式，結合實例，與大家交流學習。

【理論】什麼是MVC？

MVC就是模型(model)、視圖(vIEw)和控制(control)。什麼是模型呢？本例中，模型就是對數據使用時的封裝。視圖很容易理解，那就是顯示內容的具體表示。控制呢？有很多人對視圖和控制分不清。在本例中，控制包含視圖控制器以及方法的封裝。

【實例】

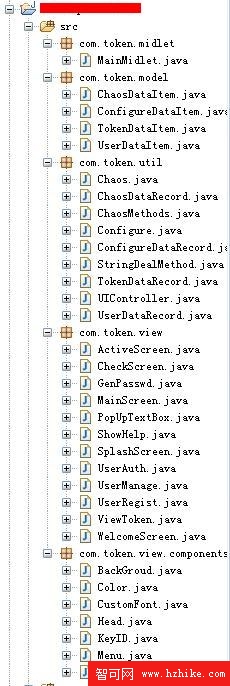

1、先看工程結構，如圖1所示。

圖1 工程結構

工程中將用戶數據單獨封裝，作為model。供控制器和視圖調用。將顯示頁面單獨封裝，作為視圖。將視圖控制器UIController和常用方法封裝為util。UIController就是控制。

2、UML圖(後續更新時補充)

先看代碼，再分析工作機理

【代碼清單】

MainMidlet.Java

package com.token.midlet;

import Java.io.IOException;

import Javax.microedition.lcdui.*;
import Javax.microedition.midlet.MIDlet;
import Javax.microedition.midlet.MIDletStateChangeException;
import com.token.util.UIController;

public class MainMidlet extends MIDlet {

    private Display display;
    private static UIController controller;
    public MainMidlet() {
        // TODO Auto-generated constructor stub
        super();
        display=Display.getDisplay(this);

    }

    /* (non-Javadoc)
     * @see Javax.microedition.midlet.MIDlet#pauseApp()
     */
    protected void startApp() throws MIDletStateChangeException {
        controller=new UIController(this);
        try {
            controller.init();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }//初始化RecordStore
    }

    /* (non-Javadoc)
     * @see Javax.microedition.midlet.MIDlet#pauseApp()
     */
    protected void pauseApp() {
        this.notifyPaused();
    }

    /* (non-Javadoc)
     * @see Javax.microedition.midlet.MIDlet#destroyApp(boolean)
     */
    protected void destroyApp(boolean arg0) throws MIDletStateChangeException {
        controller=null;

    }

    public void setCurrent(Displayable disp){
        display.setCurrent(disp);
    }

    public void setCurrent(Alert alert, Displayable disp){
        display.setCurrent(alert, disp);
    }
    public Displayable getCurrent(){
        return display.getCurrent();
    }

    public void exit(boolean arg0){
        try{
            destroyApp(arg0);
            notifyDestroyed();
        }catch(MIDletStateChangeException e){
            //
        }
    }

}

模型(Model)

UserDataItem.Java

package com.token.model;

import com.token.util.StringDealMethod;

public class UserDataItem {
    private int id;
    public String name = null;
    public String passwd = null;

    public UserDataItem(String name,String passwd)
    {
        this.name = name;
        this.passwd = passwd;
    }

    public UserDataItem(int id,byte[] data){
        this.id=id;
        String temp=new String(data);
        String temp_sub[] = StringDealMethod.split(temp, ",");
        this.name = temp_sub[0];
        this.passwd = temp_sub[1];
    }

    public int getId(){
        return id;
    }

    public void setId(int id){
        this.id=id;
    }

    public String getName(){
        return name;
    }

    public void setName(String name){
        this.name = name;
    }

    public String getPasswd(){
        return passwd;
    }

    public void setPasswd(String passwd){
        this.passwd = passwd;
    }

    public byte[] getBytes(){
        String temp=null;

        if(name==null||passwd==null){
            return null;
        }else{
            temp=name+","+passwd;
        }

        return temp.getBytes();
    }
}

控制(control)

UIController.Java

package com.token.util;

import Java.io.IOException;

import Javax.microedition.lcdui.*;

import com.token.midlet.MainMidlet;
import com.token.model.*;
import com.token.vIEw.*;
//import com.token.vIEw.components.Color;

public class UIController {

    private MainMidlet midlet;

    private TokenDataRecord tokenRecord;

    private WelcomeScreen welcomeScreen;
    private UserRegist reg;
    private ActiveScreen activeScreen;
    private MainScreen mainScreen;
    private GenPasswd gen;
    private CheckScreen check;
    private ViewToken vIEwToken;
    private UserManage manage;
    private ShowHelp help;
    private UserAuth auth;
    private PopUpTextBox textBox;

    int id = 1;

    public UIController(MainMidlet midlet)
    {
        this.midlet = midlet;

        tokenRecord = new TokenDataRecord();
    }

    public void init() throws IOException{

        try {
            SplashScreen splashScreen = new SplashScreen();
            setCurrent(splashScreen);
            Thread.sleep(1000);

            Configure.configureColor();
            initObject();

            //tokenRecord.db_deleteAllRecord();
            if(tokenRecord.db_getRecord(1)==null)
            {
                //System.out.println("add");
                ChaosMethods method = new ChaosMethods();
                TokenDataItem tokenItem = new TokenDataItem(1,(method.ChaosInitCode()+",false").getBytes());
                id=tokenRecord.db_addRecord(tokenItem);
            }

            //System.out.println(id);
            TokenDataItem tokenItem1 = tokenRecord.db_getRecord(id);
            //System.out.println(tokenItem1.token+","+tokenItem1.isActive);

            if(tokenItem1.getStatus().equals("false"))
            {
                this.handleEvent(UIController.EventID.EVENT_NEXT_WELCOME_SCREEN,null);
            }else
            {
                String flag = "0";
                Object [] args = {flag,""};
                this.handleEvent(UIController.EventID.EVENT_MAIN_SCREEN,args);
            }
        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

    }

    private void initObject()
    {
        welcomeScreen = new WelcomeScreen(this);
        reg= new UserRegist(this);
        activeScreen = new ActiveScreen(this);
        ...
        textBox = new PopUpTextBox(this,"輸入文本","", 1000, TextFIEld.ANY);
    }

    //getMethod
    public void setCurrent(Displayable disp){
        midlet.setCurrent(disp);
    }
    public void setCurrent(Alert alert, Displayable disp){
        midlet.setCurrent(alert, disp);
    }

    //定義事件ID內部類
    public static class EventID{
        private EventID(){
        }

        public static final byte EVENT_EXIT = 0;//退出
        public static final byte EVENT_NEXT_WELCOME_SCREEN = 1;//歡迎界面
        public static final byte EVENT_NEXT_USER_REGIST_SCREEN = 2;//用戶注冊
        public static final byte EVENT_USER_REGIST_EDIT = 3;//用戶注冊編輯
        public static final byte EVENT_USER_REGIST_EDIT_BACK = 4;//用戶注冊編輯返回
        public static final byte EVENT_NEXT_ACTIVE_SCREEN = 5;
       //...
    }

    //事件處理
    public void handleEvent( int eventID, Object[] args)
    {
        switch (eventID)
        {
            case EventID.EVENT_EXIT:
            {
                midlet.exit(false);
                break;
            }
            case EventID.EVENT_NEXT_WELCOME_SCREEN:
            {
                    welcomeScreen.show();
                midlet.setCurrent(welcomeScreen);
                break;
            }
            case EventID.EVENT_NEXT_USER_REGIST_SCREEN:
            case EventID.EVENT_USER_REGIST_EDIT_BACK:
            {
                reg.show(args);
                Thread thread = new Thread(reg);
                thread.start();
                midlet.setCurrent(reg);
                break;
            }
            case EventID.EVENT_USER_REGIST_EDIT:
            {
                textBox.init(args);
                midlet.setCurrent(textBox);
                break;
            }
            case EventID.EVENT_NEXT_ACTIVE_SCREEN:
            {
                activeScreen.show(args);
                Thread thread = new Thread(activeScreen);
                thread.start();
                midlet.setCurrent(activeScreen);
                break;
            }
            //...
            default:
                break;
        }
    }
}
