前段時間剛好學了一點webservice，因此想和大家分享一下我的成果，因為能力原因，只能做個小實例，望大家見諒！
此實例的思路是：（1）用String類型構造好需要發送的報文;(2)使用axis調用服務發送報文; (3)將返回的報文進行解析。

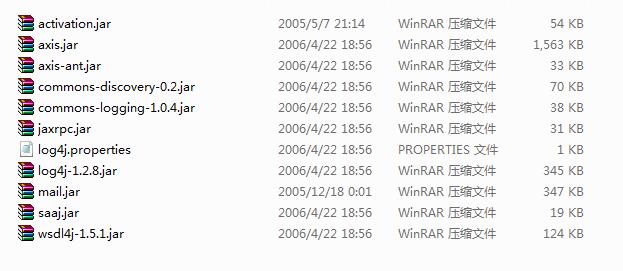

如下是axis所使用的包：
接下來是實例代碼：
1 //測試實例
2 public class test {
3
4 public static void main(String[] args) {
5 // TODO Auto-generated method stub
6 test t=new test();
7 //發送的報文
8 String requestXml="<?xml version=\"1.0\" encoding=\"UTF-8\"?><service xmlns=\"http://www.chinatax.gov.cn/spec/\" xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\"><head><tran_id>SWNDPJ</tran_id><channel_id>SWZJ</channel_id><tran_seq>sdfas123</tran_seq><tran_date>20151102</tran_date><tran_time>14494777</tran_time><rtn_code>0</rtn_code><rtn_msg><Code>0000</Code><Message>交易成功</Message><Reason>獲取納稅人年度評價結果成功。</Reason></rtn_msg><expand><name>identityType</name><value></value></expand><expand><name>sjry</name><value></value></expand><expand><name>sjjg</name><value></value></expand></head><body><![CDATA[<?xml version=\"1.0\" encoding=\"UTF-8\"?><taxML xsi:type=\"nsxyPjxxYwbw\" bbh=\"v1.0\" xmlbh=\"String\" xmlmc=\"String\" xsi:schemaLocation=\"http://www.chinatax.gov.cn/dataspec/TaxMLBw_NSXY_PJXX_00001_Response_V1.0.xsd\" xmlns=\"http://www.chinatax.gov.cn/dataspec/\" xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\"><nsxypjxx><nsxypjxxHead><type>NSXY</type><pjlx>NSXY</pjlx></nsxypjxxHead><nsxypjxxBody><nsrsbh>4406817919</nsrsbh><nsrmc></nsrmc><pjnd>2015</pjnd><pjjb></pjjb><pjfs></pjfs><sflhpj>1</sflhpj></nsxypjxxBody></nsxypjxx></taxML>]]></body></service>";;
9 String responseXml=t.getResponseXml(requestXml);
10 Map xmlMap=t.parseXml2Map(responseXml);
11 System.out.println(xmlMap);
12 }
13 /**
14 * 使用axis調用接口發送報文
15 * @param requestXml 發送的報文
16 * @return responseXml 返回的報文
17 * @throws Exception
18 */
19 public static String getResponseXml(String requestXml) throws Exception{
20 String url = "";//輸入TargetEndpointAddress的地址
21 String TargetEndpointAddress = url;
22 String TargetNamespace = "";//輸入TargetNamespace
23 Service service = new Service();
24 String responseXML = "";
25 Call call = null;
26 call = (Call) service.createCall();
27 QName qn = new QName(TargetNamespace, "doService");//doService為調用的服務裡的方法
28 call.setTargetEndpointAddress(TargetEndpointAddress);
29 call.addParameter("parameters", qn, ParameterMode.IN);
30 call.setReturnType(XMLType.XSD_STRING);
31 call.setOperationName(qn);
32 String[] parameters = { requestXml };
33 responseXML = (String) call.invoke(parameters);
34 System.out.println(responseXML);
35 return responseXML;
36 }
37
38 /**
39 * 解析返回的報文數據 responseXml
40 * @author Administrator
41 *
42 */
43 @SuppressWarnings({ "static-access", "rawtypes", "unused", "unchecked" })
44 public Map parseXml2Map(String xml){
45 DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance(); //得到DOM解析器的工廠實例
46 DocumentBuilder builder;
47 }
48 Map pjMap = new HashMap();
49
50 Document document = ParseXml2Doc(xml);
51 Element root = document.getDocumentElement();
52 //解析body體報文
53 Node body =root.getElementsByTagName("body").item(0);
54 String bodyxml = body.getTextContent();
55 Document bodyDoc = ParseXml2Doc(bodyxml);
56 Element taxMLElement = bodyDoc.getDocumentElement();
57 NodeList taxMLList = taxMLElement.getChildNodes();
58 for (int i = 0; i < taxMLList.getLength(); i++) {
59 // 是節點，進入節點下，否則不進
60 if (taxMLList.item(i) instanceof Element) {
61 String cc = taxMLList.item(i).getNodeName();
62 NodeList swsxList = taxMLList.item(i).getChildNodes();
63 // if ("nsxypjxxBody".equals(cc)) {
64 for (int j = 0; j < swsxList.getLength(); j++) {
65 if (swsxList.item(j) instanceof Element) {
66 String bdmc = swsxList.item(j).getNodeName();
67 if ("nsxypjxxBody".equals(bdmc)) {
68 NodeList pjxxList = swsxList.item(j)
69 .getChildNodes();
70 for (int z = 0; z < pjxxList.getLength(); z++) {
71 String pjxx = pjxxList.item(z).getNodeName();
72 if ("djxh".equals(pjxx)) {
73 pjMap.put("djxh", pjxxList.item(z)
74 .getTextContent());
75 }
76 else if ("nsrsbh".equals(pjxx)) {
77 pjMap.put("nsrsbh", pjxxList.item(z)
78 .getTextContent());
79 }
80 else if ("nsrmc".equals(pjxx)) {
81 pjMap.put("nsrmc", pjxxList.item(z)
82 .getTextContent());
83 }
84 else if ("pjnd".equals(pjxx)) {
85 pjMap.put("pjnd", pjxxList.item(z)
86 .getTextContent());
87 }
88 else if ("pjjb".equals(pjxx)) {
89 pjMap.put("pjjb", pjxxList.item(z)
90 .getTextContent());
91 }else if ("pjfs".equals(pjxx)) {
92 pjMap.put("pjfs", pjxxList.item(z)
93 .getTextContent());
94 }else if ("pjdf".equals(pjxx)) {
95 pjMap.put("pjdf", pjxxList.item(z)
96 .getTextContent());
97 }else if ("qpf".equals(pjxx)) {
98 pjMap.put("qpf", pjxxList.item(z)
99 .getTextContent());
100 }else if ("sflhpj".equals(pjxx)) {
101 pjMap.put("sflhpj", pjxxList.item(z)
102 .getTextContent());
103 }
104 }
105 }
106 }
107 }
108 }
109 }
110 //解析head體報文
111 Node headNode=root.getElementsByTagName("head").item(0);
112 NodeList headList=headNode.getChildNodes();
113 Node rtn_msgNode=null;
114 for(int j=0;j<headList.getLength();j++){
115 rtn_msgNode=headList.item(j);
116 if(rtn_msgNode.getNodeName().equals("rtn_msg")){
117 NodeList rtn_msgList=rtn_msgNode.getChildNodes();
118 Node rtn_msgNode2=null;
119 if(rtn_msgList instanceof Element){
120 for(int i=0;i<rtn_msgList.getLength();i++){
121 rtn_msgNode2=rtn_msgList.item(i);
122 if("Code".equals(rtn_msgNode2.getNodeName())){
123 pjMap.put("Code", rtn_msgNode2.getTextContent());
124 }else if("Message".equals(rtn_msgNode2.getNodeName())){
125 pjMap.put("Message", rtn_msgNode2.getTextContent());
126 }else if("Reason".equals(rtn_msgNode2.getNodeName())){
127 pjMap.put("Reason", rtn_msgNode2.getTextContent());
128 }
129 }
130 }
131 }
132 return pjMap;
133 }
134
135
136
137 /**
138 * 將xml加載為document對象
139 * @param xmlStr
140 * @return
141 */
142 public Document ParseXml2Doc(String xmlStr){
143 ByteArrayInputStream in;
144 if("".equals(xmlStr))
145 return null;
146 Document doc = null;
147 try{
148 builder=factory.newDocumentBuilder();
149 in=new ByteArrayInputStream(xmlStr.getBytes("utf-8"));
150 doc=builder.parse(in);
151
152 }catch(Exception e){
153 //System.out.println(e);
154 }
155 return doc;
156 }
157 }
當然，發送的報文格式因他人提供的文檔類型定義而不同，故解析報文的方法也不同，但大體思路如此，故此代碼只供參考。
