Java-單機版的書店管理系統(練習設計模塊和思想_系列匯總)

編輯:JAVA綜合教程

Java-單機版的書店管理系統(練習設計模塊和思想_系列匯總)


介紹:

本軟件系列到此,我已經全部寫完了。

項目練習目標 :

1、Java應用程序基本分析
2、培養面向對象編程的基本思想
3、Java基本設計模式綜合應用
4、掌握分層和接口的基本設計
5、構建合理的Java應用程序包結構
6、綜合應用JSE所學習的知識
7、在應用中合理使用集合框架
8、在應用中綜合使用swing的常用組件
9、基本的表現層的實現機制
10、IO流和文件的基本操作
11、培養良好的Java編程習慣
12、培養調試Java程序的能力,培養改錯的能力

項目功能需求 :

1、能進行操作用戶的注冊,修改基本信息,刪除和查詢。
2、能對圖書的基本信息進行增加、刪除、修改和查詢操作。
3、能填寫進貨單,一張進貨單帶有多條具體的進貨信息,進貨的書籍必須是圖書管理裡面已經有的;進貨的同時修改庫存對應書籍的存貨量。
4、能填寫銷售單,一張銷售單帶有多條具體的銷售信息,銷售的書籍必須是圖書管理裡面已經有的,而且銷售的數量不能超過當前庫存的數量;銷售的同時修改庫存對應書籍的存貨量。
5、可以查看庫存的明細,可以按照條件進行查找具體的圖書的庫存值。
6、權限方面進行簡化,做固定的權限控制。把用戶按照模塊分成不同操作權限的人員,特設一個admin的用戶,可以操作全部的功能。

項目基本設計 :

★ 架構設計
整體框架、模塊劃分
模塊劃分:用戶、圖書、進貨、銷售和庫存5個模塊

★ 系統功能結構設計
每個功能模塊的具體功能子模塊

★ 數據庫設計
項目框架實現:分模塊、分層、分包、構建應用程序

自己的總結:

這可以說是自己的第一個項目吧。小項目。O(∩_∩)O哈哈~、
寫到現在也有10多天了,自己比較享受寫項目的這個過程,不過因為這個項目是跟著老師指導來做的,所以呢,自己的感觸還不是很深,不過現在對分包啊,取名字啊,值對象封裝啊,工廠方法,面向接口編程啊,表現層,邏輯層,數據層啊,這些以前用都沒用過的,那時候完全不懂得怎麼回事,不過在自己寫了之後,感覺嘛、也就那麼回事。
O(∩_∩)O~,這種項目開發,還是得自己多練練手,寫得多了,自己就熟了。
以後就是手到擒來。
下面來看代碼吧:

包含main方法的BookStore類:

/*
 * BookStore.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore;

import java.awt.Dimension;
import java.awt.Toolkit;
import java.awt.event.ActionEvent;

import cn.hncu.bookStore.book.ui.BookListPanel;
import cn.hncu.bookStore.in.ui.InListPanel;
import cn.hncu.bookStore.login.ui.LoginPanel;
import cn.hncu.bookStore.out.ui.OutListPanel;
import cn.hncu.bookStore.stock.ui.StockListPanel;
import cn.hncu.bookStore.user.ui.ListPanel;

/**
 *
 * @author 陳浩翔
 * @version 1.0  2016-4-20
 */
public class BookStore extends javax.swing.JFrame {

    /** Creates new form BookStore */
    public BookStore() {
        super("書店管理系統---CHX---聯系QQ——619699629");
        initComponents();
        this.setContentPane(new LoginPanel(this));
        this.setResizable(false);//不能縮放
        this.setDefaultCloseOperation(EXIT_ON_CLOSE);
        Dimension scr = Toolkit.getDefaultToolkit().getScreenSize();
        this.setLocation(scr.width / 5, scr.height / 5);
    }

    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();
        menuBar = new javax.swing.JMenuBar();
        fileMenu = new javax.swing.JMenu();
        openMenuItem = new javax.swing.JMenuItem();
        saveMenuItem = new javax.swing.JMenuItem();
        saveAsMenuItem = new javax.swing.JMenuItem();
        exitMenuItem = new javax.swing.JMenuItem();
        editMenu = new javax.swing.JMenu();
        cutMenuItem = new javax.swing.JMenuItem();
        copyMenuItem = new javax.swing.JMenuItem();
        pasteMenuItem = new javax.swing.JMenuItem();
        deleteMenuItem = new javax.swing.JMenuItem();
        helpMenu = new javax.swing.JMenu();
        contentsMenuItem = new javax.swing.JMenuItem();
        aboutMenuItem = new javax.swing.JMenuItem();
        jMenu1 = new javax.swing.JMenu();
        jMenuItemUser = new javax.swing.JMenuItem();
        jMenuItemBook = new javax.swing.JMenuItem();
        jMenuItemIn = new javax.swing.JMenuItem();
        jMenuItemOut = new javax.swing.JMenuItem();
        jMenuItemStock = new javax.swing.JMenuItem();
        jMenuItem1 = new javax.swing.JMenuItem();

        setDefaultCloseOperation(javax.swing.WindowConstants.EXIT_ON_CLOSE);
        setMinimumSize(new java.awt.Dimension(800, 600));
        getContentPane().setLayout(null);
        getContentPane().add(jLabel1);
        jLabel1.setBounds(0, 0, 0, 0);

        fileMenu.setText("File");

        openMenuItem.setText("Open");
        fileMenu.add(openMenuItem);

        saveMenuItem.setText("Save");
        fileMenu.add(saveMenuItem);

        saveAsMenuItem.setText("Save As ...");
        fileMenu.add(saveAsMenuItem);

        exitMenuItem.setText("Exit");
        exitMenuItem.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                exitMenuItemActionPerformed(evt);
            }
        });
        fileMenu.add(exitMenuItem);

        menuBar.add(fileMenu);

        editMenu.setText("Edit");

        cutMenuItem.setText("Cut");
        editMenu.add(cutMenuItem);

        copyMenuItem.setText("Copy");
        editMenu.add(copyMenuItem);

        pasteMenuItem.setText("Paste");
        editMenu.add(pasteMenuItem);

        deleteMenuItem.setText("Delete");
        editMenu.add(deleteMenuItem);

        menuBar.add(editMenu);

        helpMenu.setText("Help");

        contentsMenuItem.setText("Contents");
        helpMenu.add(contentsMenuItem);

        aboutMenuItem.setText("About");
        helpMenu.add(aboutMenuItem);

        menuBar.add(helpMenu);

        jMenu1.setForeground(new java.awt.Color(204, 0, 0));
        jMenu1.setText("\u6a21\u5757");
        jMenu1.setFont(new java.awt.Font("Dialog", 1, 14));

        jMenuItemUser.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_U,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItemUser.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItemUser.setForeground(new java.awt.Color(0, 204, 0));
        jMenuItemUser.setText("\u7528\u6237");
        jMenuItemUser.setEnabled(false);
        jMenuItemUser.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItemUserActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItemUser);

        jMenuItemBook.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_B,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItemBook.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItemBook.setForeground(new java.awt.Color(0, 204, 51));
        jMenuItemBook.setText("\u56fe\u4e66");
        jMenuItemBook.setEnabled(false);
        jMenuItemBook.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItemBookActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItemBook);

        jMenuItemIn.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_I,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItemIn.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItemIn.setForeground(new java.awt.Color(0, 204, 0));
        jMenuItemIn.setText("\u8fdb\u8d27");
        jMenuItemIn.setEnabled(false);
        jMenuItemIn.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItemInActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItemIn);

        jMenuItemOut.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_O,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItemOut.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItemOut.setForeground(new java.awt.Color(0, 204, 0));
        jMenuItemOut.setText("\u9500\u552e");
        jMenuItemOut.setEnabled(false);
        jMenuItemOut.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItemOutActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItemOut);

        jMenuItemStock.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_S,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItemStock.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItemStock.setForeground(new java.awt.Color(0, 204, 0));
        jMenuItemStock.setText("\u5e93\u5b58");
        jMenuItemStock.setEnabled(false);
        jMenuItemStock.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItemStockActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItemStock);

        jMenuItem1.setAccelerator(javax.swing.KeyStroke.getKeyStroke(
                java.awt.event.KeyEvent.VK_DELETE,
                java.awt.event.InputEvent.CTRL_MASK));
        jMenuItem1.setFont(new java.awt.Font("Dialog", 1, 14));
        jMenuItem1.setForeground(new java.awt.Color(0, 204, 0));
        jMenuItem1.setText("\u6ce8\u9500");
        jMenuItem1.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jMenuItem1ActionPerformed(evt);
            }
        });
        jMenu1.add(jMenuItem1);

        menuBar.add(jMenu1);

        setJMenuBar(menuBar);

        pack();
    }//
    //GEN-END:initComponents

    /**

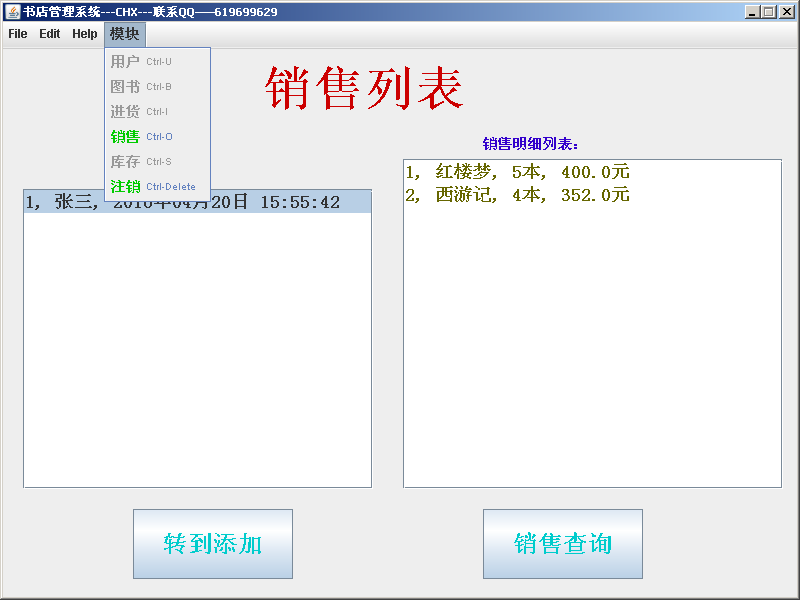

     * 進入銷售模塊
     * @param evt
     */
    protected void jMenuItemOutActionPerformed(ActionEvent evt) {
        this.setContentPane(new OutListPanel(this));
        this.validate();
    }

    /**

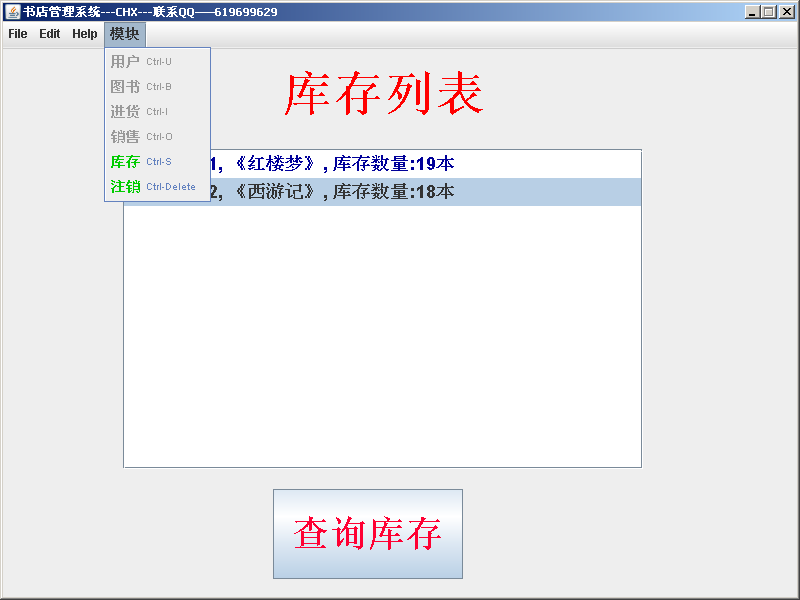

     * 進入庫存模塊
     * @param evt
     */
    protected void jMenuItemStockActionPerformed(ActionEvent evt) {
        this.setContentPane(new StockListPanel(this));
        this.validate();
    }

    /**
     * 監聽進入進貨列表
     * @param evt
     */
    private void jMenuItemInActionPerformed(java.awt.event.ActionEvent evt) {
        this.setContentPane(new InListPanel(this));
        this.validate();
    }

    /**
     * 注銷菜單項
     * @param evt
     */
    private void jMenuItem1ActionPerformed(java.awt.event.ActionEvent evt) {
        this.setContentPane(new LoginPanel(this));
        this.validate();
        jMenuItemUser.setEnabled(false);
        jMenuItemBook.setEnabled(false);
        jMenuItemIn.setEnabled(false);
        jMenuItemOut.setEnabled(false);
        jMenuItemStock.setEnabled(false);
    }

    /**
     * 監聽進入圖書模塊
     * @param evt
     */
    private void jMenuItemBookActionPerformed(java.awt.event.ActionEvent evt) {
        this.setContentPane(new BookListPanel(this));
        this.validate();
    }

    /**
     * 監聽進入用戶模塊
     * @param evt
     */
    private void jMenuItemUserActionPerformed(java.awt.event.ActionEvent evt) {
        this.setContentPane(new ListPanel(this));
        this.validate();

    }

    private void exitMenuItemActionPerformed(java.awt.event.ActionEvent evt) {//GEN-FIRST:event_exitMenuItemActionPerformed
        System.exit(0);
    }//GEN-LAST:event_exitMenuItemActionPerformed

    /**
     * @param 主函數 args the command line arguments
     */
    public static void main(String args[]) {
        java.awt.EventQueue.invokeLater(new Runnable() {
            public void run() {
                new BookStore().setVisible(true);
            }
        });
    }

    public javax.swing.JMenuItem getjMenuItemBook() {
        return jMenuItemBook;
    }

    public javax.swing.JMenuItem getjMenuItemIn() {
        return jMenuItemIn;
    }

    public javax.swing.JMenuItem getjMenuItemOut() {
        return jMenuItemOut;
    }

    public javax.swing.JMenuItem getjMenuItemStock() {
        return jMenuItemStock;
    }

    public javax.swing.JMenuItem getjMenuItemUser() {
        return jMenuItemUser;
    }

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JMenuItem aboutMenuItem;
    private javax.swing.JMenuItem contentsMenuItem;
    private javax.swing.JMenuItem copyMenuItem;
    private javax.swing.JMenuItem cutMenuItem;
    private javax.swing.JMenuItem deleteMenuItem;
    private javax.swing.JMenu editMenu;
    private javax.swing.JMenuItem exitMenuItem;
    private javax.swing.JMenu fileMenu;
    private javax.swing.JMenu helpMenu;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JMenu jMenu1;
    private javax.swing.JMenuItem jMenuItem1;
    private javax.swing.JMenuItem jMenuItemBook;
    private javax.swing.JMenuItem jMenuItemIn;
    private javax.swing.JMenuItem jMenuItemOut;
    private javax.swing.JMenuItem jMenuItemStock;
    private javax.swing.JMenuItem jMenuItemUser;
    private javax.swing.JMenuBar menuBar;
    private javax.swing.JMenuItem openMenuItem;
    private javax.swing.JMenuItem pasteMenuItem;
    private javax.swing.JMenuItem saveAsMenuItem;
    private javax.swing.JMenuItem saveMenuItem;
    // End of variables declaration//GEN-END:variables

}

登錄模塊的源代碼:

邏輯層接口LoginEbi:

package cn.hncu.bookStore.login.business.ebi;
/**
 * 用戶登錄模塊的邏輯層接口
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public interface LoginEbi {
    /**
     * 用戶登錄的方法
     * @param name 用戶名
     * @param pwd  密碼
     * @return 返回字符串,若登錄成功則返回null,如果失敗則返回相應的錯誤信息如用戶名不存在或密碼不正確
     */
    public String login(String name,String pwd);
}

實現類LoginEbo:

package cn.hncu.bookStore.login.business.ebo;

import cn.hncu.bookStore.login.business.ebi.LoginEbi;
import cn.hncu.bookStore.user.business.ebi.UserEbi;
import cn.hncu.bookStore.user.business.factory.UserEbiFactory;
import cn.hncu.bookStore.user.vo.UserModel;

/**
 * 登錄模塊的實現類
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class LoginEbo implements LoginEbi{

    @Override
    public String login(String name, String pwd) {
        UserEbi ebi = UserEbiFactory.getUserEbi();
        UserModel user = ebi.getUserByName(name);
        if(user==null){
            return "對不起,該用戶不存在!";
        }
        if(!user.getPwd().equals(pwd)){
            return "您輸入的密碼不正確!";
        }
        return null;
    }

}

工廠類LoginEbiFactory:

package cn.hncu.bookStore.login.business.factory;

import cn.hncu.bookStore.login.business.ebi.LoginEbi;
import cn.hncu.bookStore.login.business.ebo.LoginEbo;

/**
 * 登錄模塊的工廠類
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class LoginEbiFactory {

    /**
     * 工廠方法
     * @return
     */
    public static LoginEbi getLoginEbi(){
        return new LoginEbo();
    }
}

表現層登錄界面LoginPanel:

/*
 * LoginPanel.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore.login.ui;

import javax.swing.JOptionPane;

import cn.hncu.bookStore.BookStore;
import cn.hncu.bookStore.common.UserTypeEnum;
import cn.hncu.bookStore.login.business.factory.LoginEbiFactory;
import cn.hncu.bookStore.user.business.factory.UserEbiFactory;
import cn.hncu.bookStore.user.vo.UserModel;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class LoginPanel extends javax.swing.JPanel {
    private BookStore mainFrame = null;

    /** Creates new form LoginPanel */
    public LoginPanel(BookStore mainFrame) {
        this.mainFrame = mainFrame;
        initComponents();
    }

    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();
        jLabel2 = new javax.swing.JLabel();
        tfdName = new javax.swing.JTextField();
        jLabel3 = new javax.swing.JLabel();
        tfpPwd = new javax.swing.JPasswordField();
        btnLogin = new javax.swing.JButton();
        btnHelp = new javax.swing.JButton();

        setMinimumSize(new java.awt.Dimension(800, 600));
        setLayout(null);

        jLabel1.setFont(new java.awt.Font("Dialog", 1, 48));
        jLabel1.setForeground(new java.awt.Color(255, 51, 0));
        jLabel1.setText("\u767b\u5f55");
        add(jLabel1);
        jLabel1.setBounds(320, 20, 140, 120);

        jLabel2.setFont(new java.awt.Font("宋體", 1, 24));
        jLabel2.setForeground(new java.awt.Color(51, 0, 255));
        jLabel2.setText("\u5bc6 \u7801:");
        add(jLabel2);
        jLabel2.setBounds(210, 330, 80, 40);

        tfdName.setFont(new java.awt.Font("微軟雅黑", 1, 24));
        add(tfdName);
        tfdName.setBounds(310, 220, 190, 40);

        jLabel3.setFont(new java.awt.Font("宋體", 1, 24));
        jLabel3.setForeground(new java.awt.Color(51, 0, 255));
        jLabel3.setText("\u7528\u6237\u540d:");
        add(jLabel3);
        jLabel3.setBounds(200, 220, 120, 40);

        tfpPwd.setFont(new java.awt.Font("宋體", 1, 24));
        add(tfpPwd);
        tfpPwd.setBounds(310, 330, 190, 40);

        btnLogin.setFont(new java.awt.Font("Dialog", 1, 24));
        btnLogin.setForeground(new java.awt.Color(51, 0, 255));
        btnLogin.setText("\u767b\u5f55");
        btnLogin.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                btnLoginActionPerformed(evt);
            }
        });
        add(btnLogin);
        btnLogin.setBounds(150, 440, 120, 70);

        btnHelp.setFont(new java.awt.Font("Dialog", 1, 24));
        btnHelp.setForeground(new java.awt.Color(0, 0, 255));
        btnHelp.setText("\u5e2e\u52a9");
        btnHelp.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                btnHelpActionPerformed(evt);
            }
        });
        add(btnHelp);
        btnHelp.setBounds(450, 440, 130, 70);
    }//
    //GEN-END:initComponents

    private void btnHelpActionPerformed(java.awt.event.ActionEvent evt) {
        mainFrame.setContentPane(new LoginHelp(mainFrame));
        mainFrame.validate();
    }

    private void btnLoginActionPerformed(java.awt.event.ActionEvent evt) {
        //1收集
        String name = tfdName.getText();
        String pwd = new String(tfpPwd.getPassword());

        if(name.equals("admin")&&pwd.equals("123456")){
            mainFrame.getjMenuItemUser().setEnabled(true);
            mainFrame.getjMenuItemBook().setEnabled(true);
            mainFrame.getjMenuItemIn().setEnabled(true);
            mainFrame.getjMenuItemOut().setEnabled(true);
            mainFrame.getjMenuItemStock().setEnabled(true);

            mainFrame.setContentPane(new LoginWelcomePanel());
            mainFrame.validate();
        }

        //2組織---沒有值對象,不組織了
        //3調用邏輯層
        String result = LoginEbiFactory.getLoginEbi().login(name, pwd);

        //4返回到結果頁面
        if (result != null) {
            JOptionPane.showMessageDialog(mainFrame, result);
            return;
        }

        //接下來,登錄成功的情況
        //把該用戶類型所對應的模塊點亮
        UserModel user = UserEbiFactory.getUserEbi().getUserByName(name);
        //超級管理員,點亮所有模塊
        if (user.getType() == UserTypeEnum.ADMIN.getType()) {
            mainFrame.getjMenuItemUser().setEnabled(true);
            mainFrame.getjMenuItemBook().setEnabled(true);
            mainFrame.getjMenuItemIn().setEnabled(true);
            mainFrame.getjMenuItemOut().setEnabled(true);
            mainFrame.getjMenuItemStock().setEnabled(true);
        }

        //圖書管理員,點亮圖書模塊
        if (user.getType() == UserTypeEnum.BOOK.getType()) {
            mainFrame.getjMenuItemBook().setEnabled(true);
        }
        //進貨管理員,點亮進貨模塊
        if (user.getType() == UserTypeEnum.IN.getType()) {
            mainFrame.getjMenuItemIn().setEnabled(true);
        }
        //銷售管理員,點亮銷售模塊
        if (user.getType() == UserTypeEnum.OUT.getType()) {
            mainFrame.getjMenuItemOut().setEnabled(true);
        }
        //庫存管理員,點亮庫存模塊
        if (user.getType() == UserTypeEnum.STOCK.getType()) {
            mainFrame.getjMenuItemStock().setEnabled(true);
        }

        mainFrame.setContentPane(new LoginWelcomePanel());
        mainFrame.validate();
    }

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JButton btnHelp;
    private javax.swing.JButton btnLogin;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JLabel jLabel2;
    private javax.swing.JLabel jLabel3;
    private javax.swing.JTextField tfdName;
    private javax.swing.JPasswordField tfpPwd;
    // End of variables declaration//GEN-END:variables

}

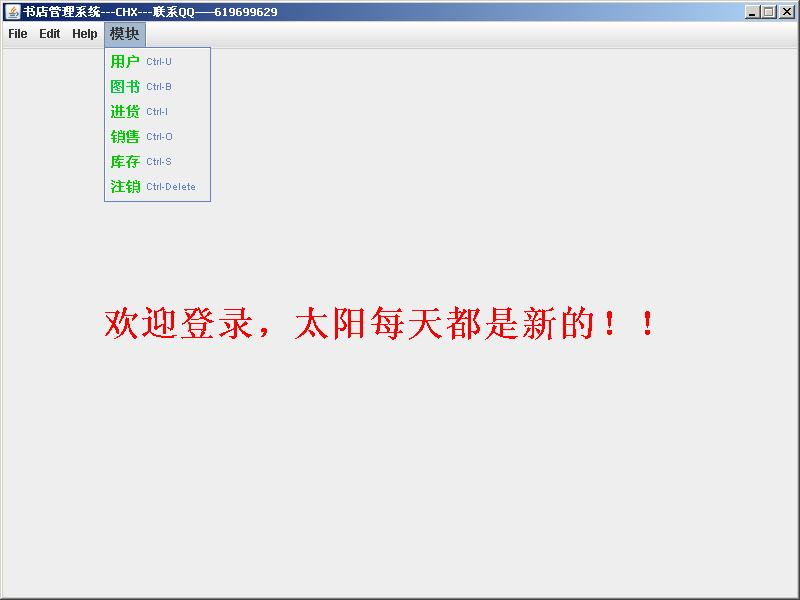

表現層歡迎界面LoginWelcomePanel:

/*
 * LoginWelcomePanel.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore.login.ui;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class LoginWelcomePanel extends javax.swing.JPanel {

    /** Creates new form LoginWelcomePanel */
    public LoginWelcomePanel() {
        initComponents();
    }

    /** This method is called from within the constructor to
     * initialize the form.
     * WARNING: Do NOT modify this code. The content of this method is
     * always regenerated by the Form Editor.
     */
    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();

        setMinimumSize(new java.awt.Dimension(800, 600));
        setLayout(null);

        jLabel1.setFont(new java.awt.Font("Dialog", 1, 36));
        jLabel1.setForeground(new java.awt.Color(255, 0, 0));
        jLabel1.setText("\u6b22\u8fce\u767b\u5f55\uff0c\u592a\u9633\u6bcf\u5929\u90fd\u662f\u65b0\u7684\uff01\uff01");
        add(jLabel1);
        jLabel1.setBounds(100, 190, 590, 170);
    }//
    //GEN-END:initComponents

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JLabel jLabel1;
    // End of variables declaration//GEN-END:variables

}

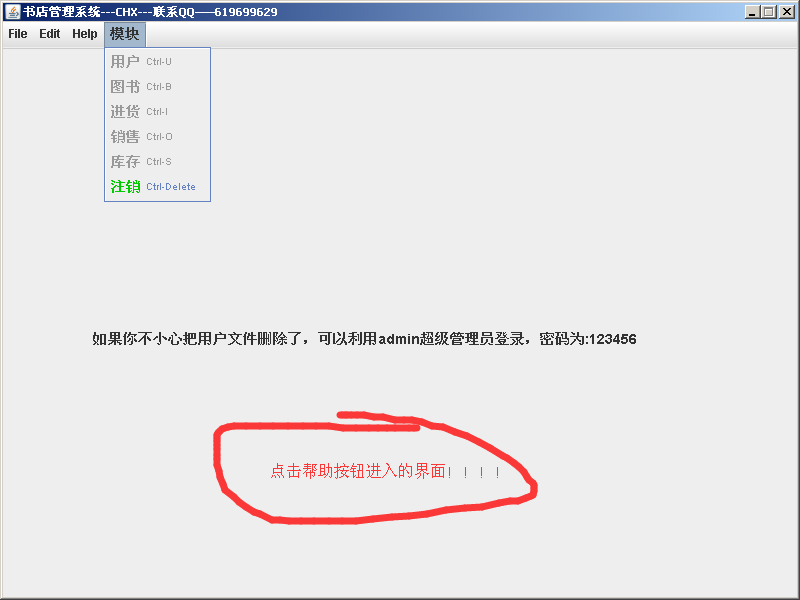

表現層幫助界面LoginHelp:

/*
 * LoginHelp.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore.login.ui;

import javax.swing.JFrame;

import cn.hncu.bookStore.BookStore;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class LoginHelp extends javax.swing.JPanel {

    private JFrame mainFrame = null;

    /** Creates new form LoginHelp
     * @param mainFrame */
    public LoginHelp(JFrame mainFrame) {
        this.mainFrame = mainFrame;
        initComponents();
    }

    /** This method is called from within the constructor to
     * initialize the form.
     * WARNING: Do NOT modify this code. The content of this method is
     * always regenerated by the Form Editor.
     */
    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();

        setMinimumSize(new java.awt.Dimension(800, 600));
        setLayout(null);

        jLabel1.setFont(new java.awt.Font("Dialog", 1, 14));
        jLabel1.setText("\u5982\u679c\u4f60\u4e0d\u5c0f\u5fc3\u628a\u7528\u6237\u6587\u4ef6\u5220\u9664\u4e86\uff0c\u53ef\u4ee5\u5229\u7528admin\u8d85\u7ea7\u7ba1\u7406\u5458\u767b\u5f55\uff0c\u5bc6\u7801\u4e3a:123456");
        add(jLabel1);
        jLabel1.setBounds(90, 250, 590, 80);
    }//
    //GEN-END:initComponents

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JLabel jLabel1;
    // End of variables declaration//GEN-END:variables

}

庫存模塊:Stock

數據層接口StockDao:

package cn.hncu.bookStore.stock.dao.dao;

import java.util.List;

import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;

/**
 * 庫存模塊的數據層接口
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public interface StockDao {
    /**
     * 創建一個庫存對象
     * @param stock
     * @return
     */
    public boolean create(StockModel stock);

    /**
     *
     * @return 返回所有的庫存對象數據
     */
    public List getAl();

    /**
     * 根據uuid  -- 修改為傳入的庫存對象
     * @param stock
     * @return
     */
    public boolean update(StockModel stock);

    /**
     * 查詢 符合條件 的 庫存對象集合
     * @param sqm---查詢條件
     * @return---符合條件的庫存對象集合
     */
    public List getByCondition(StockQueryModel sqm);

    /**
     * 根據uuid查找當前的uuid對應的庫存對象
     * @param uuid
     * @return
     */
    public StockModel getSingle(String uuid);

}

數據層實現類StockDaoImpl:

package cn.hncu.bookStore.stock.dao.impl;

import java.util.ArrayList;
import java.util.List;

import cn.hncu.bookStore.stock.dao.dao.StockDao;
import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;
import cn.hncu.bookStore.util.FileIoUtil;
import cn.hncu.bookStore.util.StringComparison;

/**
 * 庫存模塊數據層的實現類
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockDaoImpl implements StockDao{
    private final String FILE_NAME = "Stock.txt";

    @Override
    public boolean create(StockModel stock) {
        List lists = FileIoUtil.readFormFile(FILE_NAME);
        for(StockModel model :lists){
            if(model.getUuid().equals(stock.getUuid())){
                return false;
            }
        }
        lists.add(stock);
        FileIoUtil.write2file(lists, FILE_NAME);
        return true;
    }

    @Override
    public List getAl() {
        return FileIoUtil.readFormFile(FILE_NAME);
    }

    @Override
    public boolean update(StockModel stock) {
        List lists = FileIoUtil.readFormFile(FILE_NAME);
        for(int i=0;i getByCondition(StockQueryModel sqm) {
        List lists = FileIoUtil.readFormFile(FILE_NAME);
        List results = new ArrayList();

        for(StockModel model : lists){
            //衛條件

            //比較庫存ID
            if(!StringComparison.stringEquals(model.getUuid(), sqm.getUuid())){
                continue;
            }

            //比較圖書ID
            if(!StringComparison.stringEquals(model.getBookUuid(), sqm.getBookUuid())){
                continue;
            }

            //庫存查詢最小數量
            if(sqm.getSumNum()>0){
                if(sqm.getSumNum()>model.getSumNum()){
                    continue;
                }
            }

            //庫存查詢最大數量
            if(sqm.getSumNum2()>0){
                if(sqm.getSumNum2() lists = FileIoUtil.readFormFile(FILE_NAME);
        for(StockModel model : lists){
            if(model.getUuid().equals(uuid)){
                //找到uuid相同,直接返回庫存對象
                return model;
            }
        }
        return null;
    }

}

數據層工廠方法StockDaoFactory:

package cn.hncu.bookStore.stock.dao.factory;

import cn.hncu.bookStore.stock.dao.dao.StockDao;
import cn.hncu.bookStore.stock.dao.impl.StockDaoImpl;

/**
 * 工廠類-庫存
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockDaoFactory {
    /**
     * 工廠方法
     * @return --- new 一個數據層實例
     */
    public static StockDao getStockDao(){
        return new StockDaoImpl();
    }

}

邏輯層接口StockEbi:

package cn.hncu.bookStore.stock.business.ebi;

import java.util.List;

import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;


/**
 * 庫存邏輯層的接口
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public interface StockEbi {
    /**
     * 得到所有的庫存對象
     * @return---所有的庫存對象集合
     */
    public List getAll();

    /**
     * 根據查詢條件,查詢所有符合條件的庫存對象
     * @param sqm---查詢條件
     * @return---所有符合條件的庫存對象集合
     */
    public List getByCondition(StockQueryModel sqm);

}

邏輯層實現類StockEbo:

package cn.hncu.bookStore.stock.business.ebo;

import java.util.List;

import cn.hncu.bookStore.stock.business.ebi.StockEbi;
import cn.hncu.bookStore.stock.dao.dao.StockDao;
import cn.hncu.bookStore.stock.dao.factory.StockDaoFactory;
import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;

/**
 * 庫存邏輯層實現類
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockEbo implements StockEbi{
    //注入 dao
    StockDao dao = StockDaoFactory.getStockDao();

    @Override
    public List getAll() {
        return dao.getAl();
    }

    @Override
    public List getByCondition(StockQueryModel sqm) {
        return dao.getByCondition(sqm);
    }

}

邏輯層工廠類StockEbiFactory:

package cn.hncu.bookStore.stock.business.factory;

import cn.hncu.bookStore.stock.business.ebi.StockEbi;
import cn.hncu.bookStore.stock.business.ebo.StockEbo;

/**
 * 庫存邏輯層工廠類
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockEbiFactory {
    /**
     * 工廠方法
     * @return---new一個邏輯層實現類
     */
    public static StockEbi getStockEbi(){
        return new StockEbo();
    }
}

值對象StockModel:

package cn.hncu.bookStore.stock.vo;

import java.io.Serializable;

/**
 * 庫存封裝值對象
 * @author 陳浩翔
 *
 * @version 1.0
 */
public class StockModel implements Serializable{
    //庫存編號
    private String uuid;
    //圖書編號
    private String bookUuid;
    //庫存數量
    private int sumNum;

    //為顯示給用戶看而補的
    private String bookName;

    public String getUuid() {
        return uuid;
    }
    public void setUuid(String uuid) {
        this.uuid = uuid;
    }
    public String getBookUuid() {
        return bookUuid;
    }
    public void setBookUuid(String bookUuid) {
        this.bookUuid = bookUuid;
    }
    public int getSumNum() {
        return sumNum;
    }
    public void setSumNum(int sumNum) {
        this.sumNum = sumNum;
    }

    public String getBookName() {
        return bookName;
    }
    public void setBookName(String bookName) {
        this.bookName = bookName;
    }
    @Override
    public int hashCode() {
        final int prime = 31;
        int result = 1;
        result = prime * result + ((uuid == null) ? 0 : uuid.hashCode());
        return result;
    }
    @Override
    public boolean equals(Object obj) {
        if (this == obj)
            return true;
        if (obj == null)
            return false;
        if (getClass() != obj.getClass())
            return false;
        StockModel other = (StockModel) obj;
        if (uuid == null) {
            if (other.uuid != null)
                return false;
        } else if (!uuid.equals(other.uuid))
            return false;
        return true;
    }
    @Override
    public String toString() {
        return "庫存編號:"+uuid + ", 《" + bookName
                + "》, 庫存數量:" + sumNum+"本";
    }




}

查詢值對象StockQueryModel:

package cn.hncu.bookStore.stock.vo;
/**
 * 庫存查詢值對象封裝
 * @author 陳浩翔
 *
 * @version 1.0
 */
public class StockQueryModel extends StockModel{
    //最大的圖書庫存數量
    private int sumNum2;

    public int getSumNum2() {
        return sumNum2;
    }

    public void setSumNum2(int sumNum2) {
        this.sumNum2 = sumNum2;
    }



}

表現層庫存列表StockListPanel:

/*
 * StockListPanel.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore.stock.ui;

import java.util.List;

import javax.swing.JFrame;

import cn.hncu.bookStore.stock.business.factory.StockEbiFactory;
import cn.hncu.bookStore.stock.vo.StockModel;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockListPanel extends javax.swing.JPanel {

    private JFrame mainFrame = null;

    /** Creates new form StockListPanel */
    public StockListPanel(JFrame mainFrame) {
        this.mainFrame = mainFrame;
        initComponents();
        myInitData();
    }

    public StockListPanel(JFrame mainFrame, List results) {
        this.mainFrame = mainFrame;
        initComponents();
        jListStocks.setListData(results.toArray());
    }

    private void myInitData() {
        List lists = StockEbiFactory.getStockEbi().getAll();
        jListStocks.setListData(lists.toArray());
    }

    /** This method is called from within the constructor to
     * initialize the form.
     * WARNING: Do NOT modify this code. The content of this method is
     * always regenerated by the Form Editor.
     */
    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();
        jScrollPane1 = new javax.swing.JScrollPane();
        jListStocks = new javax.swing.JList();
        btnQuery = new javax.swing.JButton();

        setMinimumSize(new java.awt.Dimension(800, 600));
        setLayout(null);

        jLabel1.setFont(new java.awt.Font("微軟雅黑", 1, 48));
        jLabel1.setForeground(new java.awt.Color(255, 0, 0));
        jLabel1.setText("\u5e93\u5b58\u5217\u8868");
        add(jLabel1);
        jLabel1.setBounds(280, 0, 220, 90);

        jListStocks.setFont(new java.awt.Font("微軟雅黑", 1, 18));
        jListStocks.setForeground(new java.awt.Color(0, 0, 153));
        jListStocks.setModel(new javax.swing.AbstractListModel() {
            String[] strings = { "" };

            public int getSize() {
                return strings.length;
            }

            public Object getElementAt(int i) {
                return strings[i];
            }
        });
        jScrollPane1.setViewportView(jListStocks);

        add(jScrollPane1);
        jScrollPane1.setBounds(120, 100, 520, 320);

        btnQuery.setFont(new java.awt.Font("Dialog", 1, 36));
        btnQuery.setForeground(new java.awt.Color(255, 0, 51));
        btnQuery.setText("\u67e5\u8be2\u5e93\u5b58");
        btnQuery.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                btnQueryActionPerformed(evt);
            }
        });
        add(btnQuery);
        btnQuery.setBounds(270, 440, 190, 90);
    }//
    //GEN-END:initComponents

    private void btnQueryActionPerformed(java.awt.event.ActionEvent evt) {
        mainFrame.setContentPane(new StockQueryPanel(mainFrame));
        mainFrame.validate();
    }

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JButton btnQuery;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JList jListStocks;
    private javax.swing.JScrollPane jScrollPane1;
    // End of variables declaration//GEN-END:variables

}

表現層庫存查詢StockQueryPanel:

/*
 * StockQueryPanel.java
 *
 * Created on __DATE__, __TIME__
 */

package cn.hncu.bookStore.stock.ui;

import java.util.List;

import javax.swing.JFrame;
import javax.swing.JOptionPane;

import cn.hncu.bookStore.book.business.factory.BookEbiFactory;
import cn.hncu.bookStore.book.vo.BookModel;
import cn.hncu.bookStore.stock.business.factory.StockEbiFactory;
import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0  2016-4-20
 */
public class StockQueryPanel extends javax.swing.JPanel {

    private JFrame mainFrame = null;

    /** Creates new form StockQueryPanel
     * @param mainFrame */
    public StockQueryPanel(JFrame mainFrame) {
        this.mainFrame = mainFrame;
        initComponents();
        myInitData();
    }

    /**
     * 初始化圖書box
     */
    private void myInitData() {
        List books = BookEbiFactory.getBookEbi().getAll();
        for(BookModel book:books){
            combBook.addItem(book.getName());
        }
    }

    /** This method is called from within the constructor to
     * initialize the form.
     * WARNING: Do NOT modify this code. The content of this method is
     * always regenerated by the Form Editor.
     */
    //GEN-BEGIN:initComponents
    //
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();
        jLabel7 = new javax.swing.JLabel();
        tfdStockUuid = new javax.swing.JTextField();
        jLabel5 = new javax.swing.JLabel();
        combBook = new javax.swing.JComboBox();
        jLabel8 = new javax.swing.JLabel();
        tfdStockNum = new javax.swing.JTextField();
        jLabel11 = new javax.swing.JLabel();
        tfdStockNum2 = new javax.swing.JTextField();
        btnQuery = new javax.swing.JButton();
        btnBack = new javax.swing.JButton();

        setMinimumSize(new java.awt.Dimension(800, 600));
        setLayout(null);

        jLabel1.setFont(new java.awt.Font("Dialog", 1, 48));
        jLabel1.setForeground(new java.awt.Color(255, 0, 0));
        jLabel1.setText("\u5e93\u5b58\u67e5\u8be2");
        add(jLabel1);
        jLabel1.setBounds(270, 0, 230, 90);

        jLabel7.setFont(new java.awt.Font("微軟雅黑", 0, 18));
        jLabel7.setText("\u5e93\u5b58\u7f16\u53f7:");
        add(jLabel7);
        jLabel7.setBounds(80, 160, 80, 30);
        add(tfdStockUuid);
        tfdStockUuid.setBounds(180, 160, 150, 30);

        jLabel5.setFont(new java.awt.Font("微軟雅黑", 0, 18));
        jLabel5.setText("\u56fe\u4e66:");
        add(jLabel5);
        jLabel5.setBounds(430, 150, 50, 30);

        combBook.setFont(new java.awt.Font("Dialog", 1, 18));
        combBook.setModel(new javax.swing.DefaultComboBoxModel(
                new String[] { "查詢所有" }));
        add(combBook);
        combBook.setBounds(490, 150, 190, 30);

        jLabel8.setFont(new java.awt.Font("微軟雅黑", 0, 18));
        jLabel8.setText("\u5e93\u5b58\u6700\u5c0f\u6570\u91cf:");
        add(jLabel8);
        jLabel8.setBounds(50, 270, 140, 30);
        add(tfdStockNum);
        tfdStockNum.setBounds(180, 270, 150, 30);

        jLabel11.setFont(new java.awt.Font("微軟雅黑", 0, 18));
        jLabel11.setText("\u5e93\u5b58\u6700\u5927\u6570\u91cf:");
        add(jLabel11);
        jLabel11.setBounds(360, 270, 120, 30);
        add(tfdStockNum2);
        tfdStockNum2.setBounds(490, 270, 190, 30);

        btnQuery.setFont(new java.awt.Font("Dialog", 1, 24));
        btnQuery.setForeground(new java.awt.Color(255, 0, 51));
        btnQuery.setText("\u67e5\u8be2");
        btnQuery.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                btnQueryActionPerformed(evt);
            }
        });
        add(btnQuery);
        btnQuery.setBounds(140, 410, 120, 70);

        btnBack.setFont(new java.awt.Font("Dialog", 1, 24));
        btnBack.setForeground(new java.awt.Color(255, 0, 51));
        btnBack.setText("\u8fd4\u56de");
        btnBack.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                btnBackActionPerformed(evt);
            }
        });
        add(btnBack);
        btnBack.setBounds(490, 410, 120, 70);
    }//
    //GEN-END:initComponents

    private void btnQueryActionPerformed(java.awt.event.ActionEvent evt) {
        // 1收集參數(且驗證輸入有效性)
        //庫存編號
        String uuid = tfdStockUuid.getText();
        //圖書編號
        String bookUuid = null;
        if (combBook.getSelectedIndex() > 0) {
            bookUuid = BookEbiFactory.getBookEbi()
                    .getBookByName(combBook.getSelectedItem().toString())
                    .getUuid();
        }

        //庫存最小數量
        int sumNum = 0;
        if (tfdStockNum.getText() != null
                && tfdStockNum.getText().trim().length() > 0) {
            try {
                sumNum = Integer.parseInt(tfdStockNum.getText());
                if (sumNum < 0) {
                    throw new NumberFormatException();
                }
            } catch (NumberFormatException e) {
                JOptionPane.showMessageDialog(mainFrame, "庫存最小數量必須輸入正整數!");
                return;
            }
        }

        //庫存最大數量
        int sumNum2 = 0;
        if (tfdStockNum2.getText() != null
                && tfdStockNum2.getText().trim().length() > 0) {
            try {
                sumNum2 = Integer.parseInt(tfdStockNum2.getText());
                if (sumNum2 < 0) {
                    throw new NumberFormatException();
                }
            } catch (NumberFormatException e) {
                JOptionPane.showMessageDialog(mainFrame, "庫存最大數量必須輸入正整數!");
                return;
            }
        }

        // 2組織參數----StockQueryModel
        StockQueryModel sqm = new StockQueryModel();
        sqm.setUuid(uuid);
        sqm.setBookUuid(bookUuid);
        sqm.setSumNum(sumNum);
        sqm.setSumNum2(sumNum2);

        // 3調用邏輯層
        List results = StockEbiFactory.getStockEbi()
                .getByCondition(sqm);

        // 4返回到結果頁面
        mainFrame.setContentPane(new StockListPanel(mainFrame, results));
        mainFrame.validate();
    }

    private void btnBackActionPerformed(java.awt.event.ActionEvent evt) {
        back();
    }

    private void back() {
        mainFrame.setContentPane(new StockListPanel(mainFrame));
        mainFrame.validate();
    }

    //GEN-BEGIN:variables
    // Variables declaration - do not modify
    private javax.swing.JButton btnBack;
    private javax.swing.JButton btnQuery;
    private javax.swing.JComboBox combBook;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JLabel jLabel11;
    private javax.swing.JLabel jLabel5;
    private javax.swing.JLabel jLabel7;
    private javax.swing.JLabel jLabel8;
    private javax.swing.JTextField tfdStockNum;
    private javax.swing.JTextField tfdStockNum2;
    private javax.swing.JTextField tfdStockUuid;
    // End of variables declaration//GEN-END:variables

}

進貨模塊:

進貨模塊的邏輯層接口,在寫了庫存模塊之後改了一點,增加了和庫存模塊的串接:

邏輯層接口InMainEbo:

package cn.hncu.bookStore.in.business.ebo;

import java.util.List;
import java.util.Map;
import java.util.TreeMap;

import cn.hncu.bookStore.book.business.ebi.BookEbi;
import cn.hncu.bookStore.book.business.factory.BookEbiFactory;
import cn.hncu.bookStore.common.UuidModelConstance;
import cn.hncu.bookStore.common.uuid.dao.dao.UuidDao;
import cn.hncu.bookStore.common.uuid.dao.factory.UuidDaoFactory;
import cn.hncu.bookStore.in.business.ebi.InMainEbi;
import cn.hncu.bookStore.in.business.factory.InMainEbiFactory;
import cn.hncu.bookStore.in.dao.dao.InDetailDao;
import cn.hncu.bookStore.in.dao.dao.InMainDao;
import cn.hncu.bookStore.in.dao.factory.InDetailDaoFactory;
import cn.hncu.bookStore.in.dao.factory.InMainDaoFactory;
import cn.hncu.bookStore.in.vo.InDetailModel;
import cn.hncu.bookStore.in.vo.InDetailQueryModel;
import cn.hncu.bookStore.in.vo.InMainModel;
import cn.hncu.bookStore.in.vo.InMainQueryModel;
import cn.hncu.bookStore.stock.dao.dao.StockDao;
import cn.hncu.bookStore.stock.dao.factory.StockDaoFactory;
import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0
 */
public class InMainEbo implements InMainEbi{
    //注入dao

    InMainDao inMainDao = InMainDaoFactory.getInMainDao();
    InDetailDao inDetailDao = InDetailDaoFactory.getInDetailDao();
    UuidDao uuidDao = UuidDaoFactory.getUuidDao();
    BookEbi bookEbi = BookEbiFactory.getBookEbi();

    @Override
    public boolean create(InMainModel inMain, List inDetails) {
        //////////1存儲inMain信息///////////
        //補全inMain中的數據
        //需要:inUuid,inDate,inUserUuid   已組織:inUserUuid
        //還缺(需補):inUuid,inDate
        String inUuid = uuidDao.getNextUuid(UuidModelConstance.IN_MAIN);
        inMain.setUuid(inUuid);
        inMain.setInDate(System.currentTimeMillis());
        inMainDao.create(inMain);

         //////////2存儲inDetail信息///////////
        for(InDetailModel model:inDetails){
            //補全每一個inDetail中的數據
            //需要:inDetailUuid,inMainUuid,bookUuid,sumNum,sumMoney   已組織:bookUuid,sumNum
            //還缺(需補):inDetailUuid,inMainUuid,sumMoney
            model.setUuid(uuidDao.getNextUuid(UuidModelConstance.IN_DETAIL));
            model.setInId(inUuid);

            double sumMoney = model.getSumNum() * bookEbi.getSingle(model.getBookId()).getInPrice();
            model.setSumMoney(sumMoney);
            inDetailDao.create(model);

            //////////※※※3 圖書入庫--到庫存表格///////////
            putInStock(model.getBookId(),model.getSumNum());

        }
        return true;
    }

    /**
     * 入庫動作
     * @param bookId
     * @param bookName
     */
    private void putInStock(String bookId, int sumNum) {
        //注入Stock模塊的dao
        StockDao dao = StockDaoFactory.getStockDao();

        //查詢庫存,看看是否已經存在該bookUuid所對應的書,如果沒有則庫存數據為sumNum,否則為在原有基礎上再加上sumNum
        StockQueryModel sqm = new StockQueryModel();
        sqm.setBookUuid(bookId);
        List lists = dao.getByCondition(sqm);

        //庫存中沒有這種書
        if(lists==null||lists.size()==0){
            //表現層只負責組織進貨模塊的值對象,庫存模塊我們在邏輯層自己補
            StockModel stock = new StockModel();

            //補:庫存編號 uuid
            stock.setUuid(UuidDaoFactory.getUuidDao().getNextUuid(UuidModelConstance.STOCK));

            //補: bookName 專為顯示給用戶看的書名
            stock.setBookName(BookEbiFactory.getBookEbi().getSingle(bookId).getName());
            stock.setBookUuid(bookId);

            stock.setSumNum(sumNum);

            dao.create(stock);

        }else{//庫存中已經存在該圖書對應的庫存記錄
            StockModel stock = lists.get(0);
            stock.setSumNum( stock.getSumNum()+sumNum );
            dao.update(stock);
        }

    }

    @Override
    public Map> getAll() {
        Map> map = new TreeMap>();

        List inMains = inMainDao.getAll();

        for(InMainModel inMain: inMains ){
            //查詢條件值對象的創建
            InDetailQueryModel idqm = new InDetailQueryModel();
            String inUuid = inMain.getUuid();
            idqm.setInId(inUuid);

            List details = inDetailDao.getbyCondition(idqm);

            map.put(inMain, details);
        }

        return map;
    }

    @Override
    public Map> getByCondition(
            InMainQueryModel imqm, InDetailQueryModel idqm) {
        Map> map = new TreeMap>();

        List list = inMainDao.getbyCondition(imqm);

        for(InMainModel inMain : list){
            idqm.setInId(inMain.getUuid());

            List details = inDetailDao.getbyCondition(idqm);
            if(details.size()!=0){
                map.put(inMain, details);
            }
        }

        return map;
    }

}

銷售模塊:

銷售模塊的邏輯層接口也增加了和庫存模塊的串接:

邏輯層接口OutMainEbo:

package cn.hncu.bookStore.out.business.ebo;

import java.util.List;
import java.util.Map;
import java.util.TreeMap;

import javax.swing.JOptionPane;

import cn.hncu.bookStore.book.business.ebi.BookEbi;
import cn.hncu.bookStore.book.business.factory.BookEbiFactory;
import cn.hncu.bookStore.common.UuidModelConstance;
import cn.hncu.bookStore.common.uuid.dao.dao.UuidDao;
import cn.hncu.bookStore.common.uuid.dao.factory.UuidDaoFactory;
import cn.hncu.bookStore.out.business.ebi.OutMainEbi;
import cn.hncu.bookStore.out.dao.dao.OutDetailDao;
import cn.hncu.bookStore.out.dao.dao.OutMainDao;
import cn.hncu.bookStore.out.dao.factory.OutDetailDaoFactory;
import cn.hncu.bookStore.out.dao.factory.OutMainDaoFactory;
import cn.hncu.bookStore.out.vo.OutDetailModel;
import cn.hncu.bookStore.out.vo.OutDetailQueryModel;
import cn.hncu.bookStore.out.vo.OutMainModel;
import cn.hncu.bookStore.out.vo.OutMainQueryModel;
import cn.hncu.bookStore.stock.business.factory.StockEbiFactory;
import cn.hncu.bookStore.stock.dao.dao.StockDao;
import cn.hncu.bookStore.stock.dao.factory.StockDaoFactory;
import cn.hncu.bookStore.stock.vo.StockModel;
import cn.hncu.bookStore.stock.vo.StockQueryModel;

/**
 *
 * @author 陳浩翔
 *
 * @version 1.0
 */
public class OutMainEbo implements OutMainEbi{
    //注入dao

    OutMainDao outMainDao = OutMainDaoFactory.getOutMainDao();
    OutDetailDao outDetailDao = OutDetailDaoFactory.getOutDetailDao();
    UuidDao uuidDao = UuidDaoFactory.getUuidDao();
    BookEbi bookEbi = BookEbiFactory.getBookEbi();

    @Override
    public boolean create(OutMainModel outMain, List outDetails) {
        //※※※庫存操作1:在添加銷售信息之前要進行防護:檢查庫存,看是否可能庫存不夠。如果不夠,本次添加直接失敗,不進行數據存儲---return false;
        //檢查庫存----用明細單(outDetail)中的bookUuid
        //注入Stock模塊的dao
        StockDao stockDao = StockDaoFactory.getStockDao();
        for(OutDetailModel detail : outDetails){
            StockQueryModel sqm = new StockQueryModel();
            sqm.setBookUuid(detail.getBookId());
            List lists = stockDao.getByCondition(sqm);
            if(lists==null||lists.size()==0){//庫存中沒有該圖書信息
                JOptionPane.showMessageDialog(null, "庫存中不存在《"+detail.getBookName()+"》,本次銷售添加失敗!");
                return false;
            }else {
                StockModel sm = lists.get(0);
                if(sm.getSumNum() stocks = StockEbiFactory.getStockEbi().getByCondition(sqm);
            //經過之前的防護,list裡面一定有一個值,而且庫存一定可以更新成功
            StockModel stock = stocks.get(0);
            stock.setSumNum(stock.getSumNum()-model.getSumNum());
            StockDaoFactory.getStockDao().update(stock);

        }
        return true;
    }

    @Override
    public Map> getAll() {
        Map> map = new TreeMap>();

        List outMains = outMainDao.getAll();

        for(OutMainModel outMain: outMains ){
            //查詢條件值對象的創建
            OutDetailQueryModel odqm = new OutDetailQueryModel();
            String inUuid = outMain.getUuid();
            odqm.setOutId(inUuid);

            List details = outDetailDao.getbyCondition(odqm);

            map.put(outMain, details);
        }

        return map;
    }

    @Override
    public Map> getByCondition(
            OutMainQueryModel imqm, OutDetailQueryModel odqm) {
        Map> map = new TreeMap>();

        List list = outMainDao.getbyCondition(imqm);

        for(OutMainModel outMain : list){
            odqm.setOutId(outMain.getUuid());

            List details = outDetailDao.getbyCondition(odqm);
            if(details.size()!=0){
                map.put(outMain, details);
            }
        }

        return map;
    }

}

展示圖片:

登錄界面:

菜單項,除了注銷是點亮之外,其他的都是暗的。
登錄界面

幫助界面:

當用戶文件被刪除了之後,就只能通過這個賬號登錄了。

\

管理員登錄後的歡迎界面:

這個是管理員登錄的歡迎界面,可以看到所有的菜單項都被點亮了的。

\

庫存管理用戶登錄後的庫存界面:

可以看到,菜單項只有庫存那一項是點亮的。

\

銷售管理用戶登錄後的銷售界面:

可以看到,菜單項只有銷售那一項是點亮的。
這裡寫圖片描述

其他的都是,一個模塊的用戶對應相應的模塊!

本系列就到此結束啦。
可能有一些小bug,我也就沒去改了,時間比較緊,O(∩_∩)O哈哈~,大家有興趣的可以去改改,做做。

所有代碼的百度雲鏈接:
鏈接: http://pan.baidu.com/s/1c2ob5r6 密碼: u6jv

  1. 上一頁:
  2. 下一頁:
Copyright © 程式師世界 All Rights Reserved
