asp.net調用
view plain
=================================
參考：
使用NuSOAP結合WSDL來編程 類別:PHP 評論:0 浏覽:513 發表 From:http://www.scottnichol.com/nusoapprogwsdl.htm
Hello, World Redux
The New Client
Defining New Data Structures
WSDL 文件為 service 提供了 metadata，NuSOAP 允許程序員指定使用 soap_server 類的附加字段和方法的 service 創建的 WSDL。
Service 的代碼必須依照產生的正確的 WSDL 的順序做很多事情。service 的信息通過調用 configureWSDL 方法來指定，每個方法的信息也通過提供 register 方法的附加參數來指定，使用 WSDL 的 service 代碼在下面的實例中演示：
<?php
// Pull in the NuSOAP code
require_once('nusoap.php');
// Create the server instance
$server = new soap_server();
// Initialize WSDL support
$server->configureWSDL('hellowsdl', 'urn:hellowsdl');
// Register the method to expose
$server->register('hello', // method name
array('name' => 'xsd:string'), // input parameters
array('return' => 'xsd:string'), // output parameters
'urn:hellowsdl', // namespace
'urn:hellowsdl#hello', // soapaction
'rpc', // style
'encoded', // use
'Says hello to the caller' // documentation
);
// Define the method as a PHP function
function hello($name) {
return 'Hello, ' . $name;
}
// Use the request to (try to) invoke the service
$HTTP_RAW_POST_DATA = isset($HTTP_RAW_POST_DATA) ? $HTTP_RAW_POST_DATA : '';
$server->service($HTTP_RAW_POST_DATA);
?>

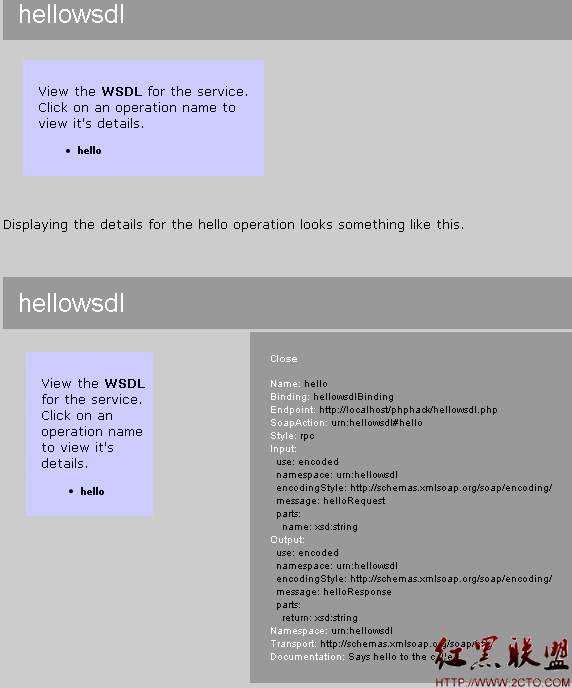

現在有些魔幻了，在你的浏覽器上打開 service 的地址，在我的環境上是 http://localhost/phphack/hellowsdl.php，頁面返回的內容提供了可以查看 service 的 WSDL 或者 查看每個方法信息的鏈接，這個實例是 hello 方法，頁面顯示的內容類似下圖：
service 代碼的改變已經顯示在 Hello, World 實例中，但是它也包含了定義 Person 數據結構的代碼：
<?php // Pull in the NuSOAP code require_once('nusoap.php'); // Create the server instance $server = new soap_server(); // Initialize WSDL support $server->configureWSDL('hellowsdl2', 'urn:hellowsdl2'); // Register the data structures used by the service $server->wsdl->addComplexType( 'Person', 'complexType', 'struct', 'all', '', array( 'firstname' => array('name' => 'firstname', 'type' => 'xsd:string'), 'age' => array('name' => 'age', 'type' => 'xsd:int'), 'gender' => array('name' => 'gender', 'type' => 'xsd:string') ) ); $server->wsdl->addComplexType( 'SweepstakesGreeting', 'complexType', 'struct', 'all', '', array( 'greeting' => array('name' => 'greeting', 'type' => 'xsd:string'), 'winner' => array('name' => 'winner', 'type' => 'xsd:boolean') ) ); // Register the method to expose $server->register('hello', // method name array('person' => 'tns:Person'), // input parameters array('return' => 'tns:SweepstakesGreeting'), // output parameters 'urn:hellowsdl2', // namespace 'urn:hellowsdl2#hello', // soapaction 'rpc', // style 'encoded', // use 'Greet a person entering the sweepstakes' // documentation ); // Define the method as a PHP function function hello($person) { $greeting = 'Hello, ' . $person['firstname'] . '. It is nice to meet a ' . $person['age'] . ' year old ' . $person['gender'] . '.'; $winner = $person['firstname'] == 'Scott'; return array( 'greeting' => $greeting, 'winner' => $winner ); } // Use the request to (try to) invoke the service $HTTP_RAW_POST_DATA = isset($HTTP_RAW_POST_DATA) ? $HTTP_RAW_POST_DATA : ''; $server->service($HTTP_RAW_POST_DATA); ?> 除了支持 WSDL 的附加代碼之外，service 方法的代碼本身也有一點改變，使用 WSDL ，不再需要使用 soapval 對象來為返回值指定名稱和數據類型。
相似的， WSDL 客戶端不需要使用 soapval 指定參數的名稱和數據類型，演示代碼如下：
<?php
// Pull in the NuSOAP code
require_once('nusoap.php');
// Create the client instance
$client = new soapclient('http://localhost/phphack/hellowsdl2.php?wsdl', true);
// Check for an error
$err = $client->getError();
if ($err) {
// Display the error
echo '<h2>Constructor error</h2><pre>' . $err . '</pre>';
// At this point, you know the call that follows will fail
}
// Call the SOAP method
$person = array('firstname' => 'Willi', 'age' => 22, 'gender' => 'male');
$result = $client->call('hello', array('person' => $person));
// Check for a fault
if ($client->fault) {
echo '<h2>Fault</h2><pre>';
print_r($result);
echo '</pre>';
} else {
// Check for errors
$err = $client->getError();
if ($err) {
// Display the error
echo '<h2>Error</h2><pre>' . $err . '</pre>';
} else {
// Display the result
echo '<h2>Result</h2><pre>';
print_r($result);
echo '</pre>';
}
}
// Display the request and response
echo '<h2>Request</h2>';
echo '<pre>' . htmlspecialchars($client->request, ENT_QUOTES) . '</pre>';
echo '<h2>Response</h2>';
echo '<pre>' . htmlspecialchars($client->response, ENT_QUOTES) . '</pre>';
// Display the debug messages
echo '<h2>Debug</h2>';
echo '<pre>' . htmlspecialchars($client->debug_str, ENT_QUOTES) . '</pre>';
?>
WSDL 是客戶端多於一個功能，使用代理而不是用 soapclinet 類的 call 方法。代理（proxy）是一個類，它映射到 service 。因此，它具備了與 service 相同參數的相同方法，一些程序員更喜歡使用代理因為方法是作為用戶一個實例的方法來調用的，而不是通過 call 方法，一個使用代理的實例如下：
<?php
// Pull in the NuSOAP code
require_once('nusoap.php');
// Create the client instance
$client = new soapclient('http://localhost/phphack/hellowsdl2.php?wsdl', true);
// Check for an error
$err = $client->getError();
if ($err) {
// Display the error
echo '<h2>Constructor error</h2><pre>' . $err . '</pre>';
// At this point, you know the call that follows will fail
}
// Create the proxy
$proxy = $client->getProxy();
// Call the SOAP method
$person = array('firstname' => 'Willi', 'age' => 22, 'gender' => 'male');
$result = $proxy->hello($person);
// Check for a fault
if ($proxy->fault) {
echo '<h2>Fault</h2><pre>';
print_r($result);
echo '</pre>';
} else {
// Check for errors
$err = $proxy->getError();
if ($err) {
// Display the error
echo '<h2>Error</h2><pre>' . $err . '</pre>';
} else {
// Display the result
echo '<h2>Result</h2><pre>';
print_r($result);
echo '</pre>';
}
}
// Display the request and response
echo '<h2>Request</h2>';
echo '<pre>' . htmlspecialchars($proxy->request, ENT_QUOTES) . '</pre>';
echo '<h2>Response</h2>';
echo '<pre>' . htmlspecialchars($proxy->response, ENT_QUOTES) . '</pre>';
// Display the debug messages
echo '<h2>Debug</h2>';
echo '<pre>' . htmlspecialchars($proxy->debug_str, ENT_QUOTES) . '</pre>';
?>
盡管可以使用常規的和代理的編碼風格，但是請求和響應的信息是相同的。
POST /phphack/hellowsdl2.php HTTP/1.0
Host: localhost
User-Agent: NuSOAP/0.6.8 (1.81)
Content-Type: text/xml; charset=ISO-8859-1
SOAPAction: "urn:hellowsdl2#hello"
Content-Length: 676
<?xml version="1.0" encoding="ISO-8859-1"?>
<SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"
xmlns:si="http://soapinterop.org/xsd"
xmlns:tns="urn:hellowsdl2">
<SOAP-ENV:Body>
<tns:hello xmlns:tns="urn:hellowsdl2">
<person xsi:type="tns:Person">
<firstname xsi:type="xsd:string">Willi</firstname>
<age xsi:type="xsd:int">22</age>
<gender xsi:type="xsd:string">male</gender>
</person>
</tns:hello>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
HTTP/1.1 200 OK
Server: Microsoft-IIS/5.0
Date: Wed, 03 Nov 2004 21:20:44 GMT
X-Powered-By: ASP.NET
X-Powered-By: PHP/4.3.4
Server: NuSOAP Server v0.6.8
X-SOAP-Server: NuSOAP/0.6.8 (1.81)
Content-Type: text/xml; charset=ISO-8859-1
Content-Length: 720
<?xml version="1.0" encoding="ISO-8859-1"?>
<SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"
xmlns:si="http://soapinterop.org/xsd"
xmlns:tns="urn:hellowsdl2">
<SOAP-ENV:Body>
<ns1:helloResponse xmlns:ns1="urn:hellowsdl2">
<return xsi:type="tns:SweepstakesGreeting">
<greeting xsi:type="xsd:string">
Hello, Willi. It is nice to meet a 22 year old male.
</greeting>
<winner xsi:type="xsd:boolean">0</winner>
</return>
</helloResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
作者 21aspnet
