昨天寫了有關事務日志的一些基本點(http://www.cnblogs.com/wingsless/p/5705314.html),今天結合我最近的學習成果繼續總結事務日志的知識點。
我們都知道InnoDB最小的存儲單元叫做頁(page)或者塊(block),日志系統也是如此,它是一個512字節的塊,被這個參數定義:OS_FILE_LOG_BLOCK_SIZE。
一個塊肯定不會只有存儲數據這麼簡單,肯定是有頭部和尾部寫一些信息進去的,而這在代碼裡很好找:
/* Offsets of a log block header */ #define LOG_BLOCK_HDR_NO 0 /* block number which must be > 0 and is allowed to wrap around at 2G; the highest bit is set to 1 if this is the first log block in a log flush write segment */ #define LOG_BLOCK_FLUSH_BIT_MASK 0x80000000UL /* mask used to get the highest bit in the preceding field */ #define LOG_BLOCK_HDR_DATA_LEN 4 /* number of bytes of log written to this block */ #define LOG_BLOCK_FIRST_REC_GROUP 6 /* offset of the first start of an mtr log record group in this log block, 0 if none; if the value is the same as LOG_BLOCK_HDR_DATA_LEN, it means that the first rec group has not yet been catenated to this log block, but if it will, it will start at this offset; an archive recovery can start parsing the log records starting from this offset in this log block, if value not 0 */ #define LOG_BLOCK_CHECKPOINT_NO 8 /* 4 lower bytes of the value of log_sys->next_checkpoint_no when the log block was last written to: if the block has not yet been written full, this value is only updated before a log buffer flush */ #define LOG_BLOCK_HDR_SIZE 12 /* size of the log block header in bytes */
/* Offsets of a log block trailer from the end of the block */ #define LOG_BLOCK_CHECKSUM 4 /* 4 byte checksum of the log block contents; in InnoDB versions < 3.23.52 this did not contain the checksum but the same value as .._HDR_NO */ #define LOG_BLOCK_TRL_SIZE 4 /* trailer size in bytes */

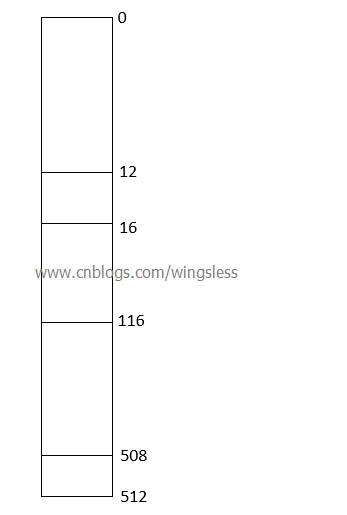

畫張圖:
頭部長度是12字節,尾部長度是4字節,代碼中標明了頭尾的長度,其他的都是偏移量,因此每個部分的長度也就是下一個偏移量減去當前值。這麼算下來,實際上能存儲數據的部分只有496字節了,這部分網上很多資料裡都叫做log data,我在這裡也這麼叫吧。
頭部裡我覺得有意思的一個地方是這個:LOG_BLOCK_FIRST_REC_GROUP,這是block裡第一個日志的起始位置的偏移量。例如一個日志有500字節,那麼寫完了一個塊之後,還有4個字節會被寫在下一個塊裡,此時又有一個100字節的頁寫到了第二個block裡(起個名字叫log2吧),於是第二個塊裡變成了這種情況:
第二個日志從16位置開始,到116位置結束,這個時候LOG_BLOCK_FIRST_REC_GROUP值會寫什麼呢?很顯然是16,因為log2才是這個block裡的第一個頁。
知道了日志結構,其實只是了解redo log的第一步,因為redo log是InnoDB實現事務的重要手段,裡面的水很深,我也會不斷地把我的學習心得寫在這裡,並不斷地補充寫好的東西。
