環境:
Python2.7+MySQL5.6+PyQt4
簡單的圖形化界面操作數據庫:模仿寫一個類似於navicat完成可視化檢索功能的界面,利用PyQt可視化編程快速完成界面設計,這點比Tkinter設計要簡單;
1.利用PyQt進行界面設計:

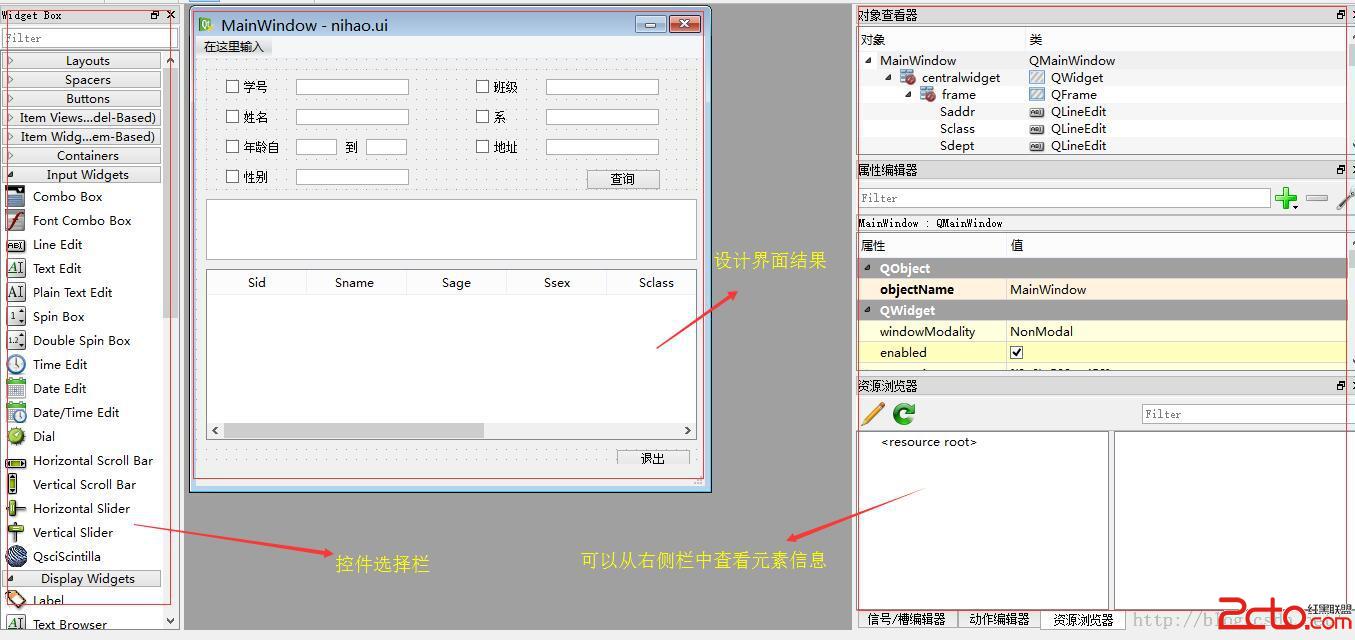

打開PyQt,新建,選擇Main Window,選擇左端的控件拖動完成界面的設計,選中元素,可以從右側查看元素的信息以及修改其屬性值,下面貼上設計圖:
在設計界面中選中元素雙擊,可以修改其屬性名,添加text,改變顯示字符格式等;
2.設計完成後,保存為.ui文件,接下來將其轉換為.py文件:
打開cmd:進入PyQt安裝目錄:
Lib\site-packages\PyQt4\uic>
鍵入命令格式:
python pyuic.py -o .py文件目錄+文件名 .ui文件目錄+文件名
我保存的.ui文件放在D盤根目錄中,生成的.py文件命名為nihao0.py

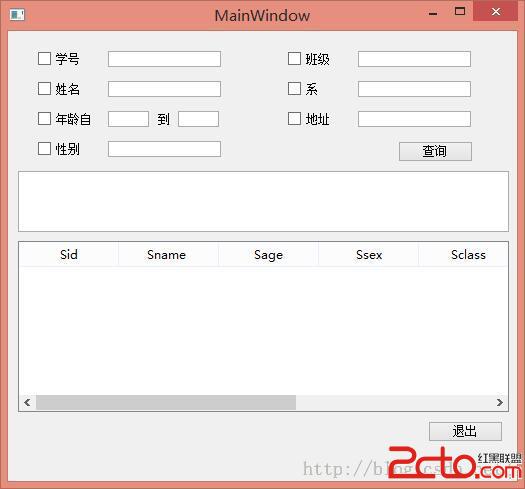

3.打開Python運行.py,查看界面
在原有的代碼基礎上添加下列代碼:
import sys class MyWindow(QtGui.QMainWindow,Ui_MainWindow):#PyQt生產的是一個叫做Ui_MainWindow的類,只需要放在一個框架下畫出來即可; def __init__(self): super(MyWindow,self).__init__() self.setupUi(self) if __name__=="__main__": app=QtGui.QApplication(sys.argv)#建立一個app,把框架放在這個app中執行 app.aboutToQuit.connect(app.deleteLater) myshow=MyWindow() myshow.show() sys.exit(app.exec_())#也可以寫成app.exec_() sys.exit(0),前者是循環整個界面,後者是退出app運行結果:
4.動態生成SQL語句——准備
新建數據庫mysql,和表格students,表格的屬性為
DDL為:
CREATE TABLE `students` ( `Sid` char(10) NOT NULL, `Sname` char(10) DEFAULT NULL, `Sage` int(3) DEFAULT NULL, `Ssex` char(4) DEFAULT NULL, `Sclass` char(7) DEFAULT NULL, `Sdept` char(10) DEFAULT NULL, `Saddr` char(40) DEFAULT NULL, PRIMARY KEY (`Sid`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8;先寫好句柄:
sqlsting="select * from students where "然後寫一個clicked()事件,點擊查詢的時候,根據用戶輸入動態構造SQL語句
5.動態生成SQL語句——字符串構造
構造技巧:
是否需要加and:如果前面已經有了原子公式,需要增加and,否則不加,使用一個flag即可;
是否需要加引號:字符型需要加引號,數字不需要加;
數字類型需要先轉換為字符類型:當為數字類型轉換為字符型str(),判斷數據類型type(),其實可以不寫,因為從界面返回的都是QtString類型的數據;
判斷什麼時候使用Like(字符串匹配問題%):字符串方法.find("%"),返回值是第一個%出現的位置,如果%不存在,則返回-1;
6.界面顯示問題
self.sql_out = QtGui.QTextBrowser(self.centralwidget):顯示框使用方法:
.setText(str):清除原來數據,顯示新的字符串
.append(str):在末尾添加新的字符串
self.result_out = QtGui.QTableWidget(self.centralwidget):表格框使用方法:
.setItem(i,j,newItem):將newItem放在第i行,第j列,注意ij都從0開始;
newItem的聲明格式為newItem = QtGui.QTableWidgetItem(str),即在(i,j)位置顯示str
注意QTableWidget只能顯示字符串,不能顯示數字,所有在顯示數據前,需要判斷是否為數字:
解決方法:type()以及str()
7.數據庫連接問題:
詳細在Python&MySQL中已經講述清除,可以作參考

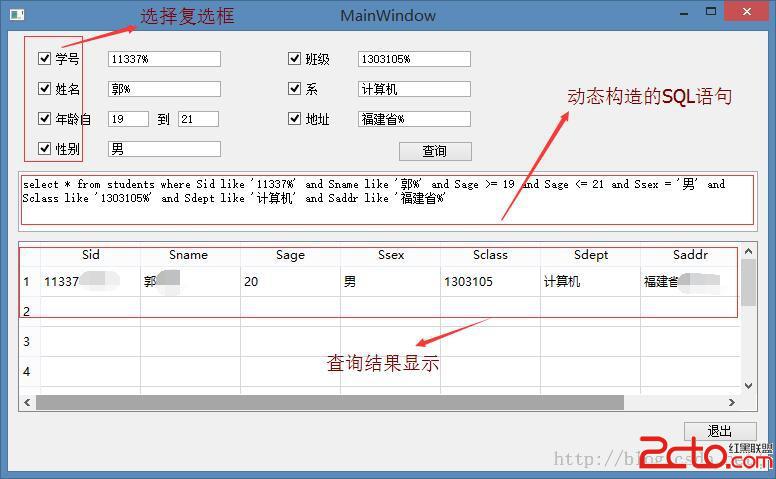

8.貼上Python代碼及運行結果:
# -*- coding: utf-8 -*- # Form implementation generated from reading ui file 'D:/nihao.ui' # # Created: Fri Apr 01 15:28:59 2016 # by: PyQt4 UI code generator 4.11.3 # # WARNING! All changes made in this file will be lost! from PyQt4 import QtCore, QtGui import sys import MySQLdb try: _fromUtf8 = QtCore.QString.fromUtf8 except AttributeError: def _fromUtf8(s): return s try: _encoding = QtGui.QApplication.UnicodeUTF8 def _translate(context, text, disambig): return QtGui.QApplication.translate(context, text, disambig, _encoding) except AttributeError: def _translate(context, text, disambig): return QtGui.QApplication.translate(context, text, disambig) class Ui_MainWindow(object): def setupUi(self, MainWindow): self.conn=MySQLdb.connect( host='localhost', user='root', passwd='', db='mysql', # charset='utf8', ) self.cur=self.conn.cursor() self.sqlstring="select * from students where " MainWindow.setObjectName(_fromUtf8("MainWindow")) MainWindow.resize(760, 440) self.centralwidget = QtGui.QWidget(MainWindow) self.centralwidget.setObjectName(_fromUtf8("centralwidget")) self.frame = QtGui.QFrame(self.centralwidget) self.frame.setGeometry(QtCore.QRect(10, 10, 491, 121)) self.frame.setFrameShape(QtGui.QFrame.StyledPanel) self.frame.setFrameShadow(QtGui.QFrame.Raised) self.frame.setObjectName(_fromUtf8("frame")) self.check_Sid = QtGui.QCheckBox(self.frame) self.check_Sid.setGeometry(QtCore.QRect(20, 10, 71, 16)) self.check_Sid.setObjectName(_fromUtf8("check_Sid")) self.check_Sage = QtGui.QCheckBox(self.frame) self.check_Sage.setGeometry(QtCore.QRect(20, 70, 71, 16)) self.check_Sage.setObjectName(_fromUtf8("check_Sage")) self.check_Sname = QtGui.QCheckBox(self.frame) self.check_Sname.setGeometry(QtCore.QRect(20, 40, 71, 16)) self.check_Sname.setObjectName(_fromUtf8("check_Sname")) self.check_Ssex = QtGui.QCheckBox(self.frame) self.check_Ssex.setGeometry(QtCore.QRect(20, 100, 71, 16)) self.check_Ssex.setObjectName(_fromUtf8("check_Ssex")) self.Sid = QtGui.QLineEdit(self.frame) self.Sid.setGeometry(QtCore.QRect(90, 10, 113, 16)) self.Sid.setObjectName(_fromUtf8("Sid")) self.Sname = QtGui.QLineEdit(self.frame) self.Sname.setGeometry(QtCore.QRect(90, 40, 113, 16)) self.Sname.setObjectName(_fromUtf8("Sname")) self.first_Sage = QtGui.QLineEdit(self.frame) self.first_Sage.setGeometry(QtCore.QRect(90, 70, 41, 16)) self.first_Sage.setObjectName(_fromUtf8("first_Sage")) self.Ssex = QtGui.QLineEdit(self.frame) self.Ssex.setGeometry(QtCore.QRect(90, 100, 113, 16)) self.Ssex.setObjectName(_fromUtf8("Ssex")) self.label = QtGui.QLabel(self.frame) self.label.setGeometry(QtCore.QRect(140, 70, 16, 16)) self.label.setObjectName(_fromUtf8("label")) self.last_Sage = QtGui.QLineEdit(self.frame) self.last_Sage.setGeometry(QtCore.QRect(160, 70, 41, 16)) self.last_Sage.setObjectName(_fromUtf8("last_Sage")) self.check_Sdept = QtGui.QCheckBox(self.frame) self.check_Sdept.setGeometry(QtCore.QRect(270, 40, 71, 16)) self.check_Sdept.setObjectName(_fromUtf8("check_Sdept")) self.Sdept = QtGui.QLineEdit(self.frame) self.Sdept.setGeometry(QtCore.QRect(340, 40, 113, 16)) self.Sdept.setObjectName(_fromUtf8("Sdept")) self.Sclass = QtGui.QLineEdit(self.frame) self.Sclass.setGeometry(QtCore.QRect(340, 10, 113, 16)) self.Sclass.setObjectName(_fromUtf8("Sclass")) self.check_Sclass = QtGui.QCheckBox(self.frame) self.check_Sclass.setGeometry(QtCore.QRect(270, 10, 71, 16)) self.check_Sclass.setObjectName(_fromUtf8("check_Sclass")) self.Saddr = QtGui.QLineEdit(self.frame) self.Saddr.setGeometry(QtCore.QRect(340, 70, 113, 16)) self.Saddr.setObjectName(_fromUtf8("Saddr")) self.check_Saddr = QtGui.QCheckBox(self.frame) self.check_Saddr.setGeometry(QtCore.QRect(270, 70, 71, 16)) self.check_Saddr.setObjectName(_fromUtf8("check_Saddr")) self.find = QtGui.QPushButton(self.frame) self.find.setGeometry(QtCore.QRect(380, 100, 75, 21)) self.find.setObjectName(_fromUtf8("find")) self.sql_out = QtGui.QTextBrowser(self.centralwidget) self.sql_out.setGeometry(QtCore.QRect(10, 140, 740, 61)) self.sql_out.setObjectName(_fromUtf8("sql_out")) self.result_out = QtGui.QTableWidget(self.centralwidget) self.result_out.setEditTriggers(QtGui.QAbstractItemView.NoEditTriggers)#不可編輯表格 self.result_out.setGeometry(QtCore.QRect(10, 210, 740, 171)) self.result_out.setObjectName(_fromUtf8("result_out")) self.result_out.setColumnCount(7) self.result_out.setRowCount(10) self.result_out.resizeColumnsToContents() self.result_out.resizeRowsToContents() item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(0, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(1, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(2, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(3, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(4, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(5, item) item = QtGui.QTableWidgetItem() self.result_out.setHorizontalHeaderItem(6, item) self.result_out.horizontalHeader().setDefaultSectionSize(100) self.result_out.horizontalHeader().setMinimumSectionSize(25) self.result_out.verticalHeader().setDefaultSectionSize(30) self.pushButton_2 = QtGui.QPushButton(self.centralwidget) self.pushButton_2.setGeometry(QtCore.QRect(675, 390, 75, 21)) self.pushButton_2.setObjectName(_fromUtf8("pushButton_2")) MainWindow.setCentralWidget(self.centralwidget) self.menubar = QtGui.QMenuBar(MainWindow) self.menubar.setGeometry(QtCore.QRect(0, 0, 509, 23)) self.menubar.setObjectName(_fromUtf8("menubar")) MainWindow.setMenuBar(self.menubar) self.statusbar = QtGui.QStatusBar(MainWindow) self.statusbar.setObjectName(_fromUtf8("statusbar")) MainWindow.setStatusBar(self.statusbar) self.retranslateUi(MainWindow) QtCore.QMetaObject.connectSlotsByName(MainWindow) def retranslateUi(self, MainWindow): MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow", None)) self.check_Sid.setText(_translate("MainWindow", "學號", None)) self.check_Sage.setText(_translate("MainWindow", "年齡自", None)) self.check_Sname.setText(_translate("MainWindow", "姓名", None)) self.check_Ssex.setText(_translate("MainWindow", "性別", None)) self.label.setText(_translate("MainWindow", "到", None)) self.check_Sdept.setText(_translate("MainWindow", "系", None)) self.check_Sclass.setText(_translate("MainWindow", "班級", None)) self.check_Saddr.setText(_translate("MainWindow", "地址", None)) self.find.setText(_translate("MainWindow", "查詢", None)) self.sql_out.setText(self.sqlstring) item = self.result_out.horizontalHeaderItem(0) item.setText(_translate("MainWindow", "Sid", None)) item = self.result_out.horizontalHeaderItem(1) item.setText(_translate("MainWindow", "Sname ", None)) item = self.result_out.horizontalHeaderItem(2) item.setText(_translate("MainWindow", "Sage", None)) item = self.result_out.horizontalHeaderItem(3) item.setText(_translate("MainWindow", "Ssex", None)) item = self.result_out.horizontalHeaderItem(4) item.setText(_translate("MainWindow", "Sclass", None)) item = self.result_out.horizontalHeaderItem(5) item.setText(_translate("MainWindow", "Sdept", None)) item = self.result_out.horizontalHeaderItem(6) item.setText(_translate("MainWindow", "Saddr", None)) self.pushButton_2.setText(_translate("MainWindow", "退出", None)) def mousePressEvent(self,event): if event.self.find()==QtCore.Qt.LeftButton: print "nihao" def buttonTest(self): temp_sqlstring=self.sqlstring is_first = True if self.check_Sid.isChecked(): mystr = self.Sid.text() if is_first: is_first = False if mystr.find("%")==-1: temp_sqlstring += "Sid = '" + self.Sid.text() + "'" else: temp_sqlstring += "Sid like '" + self.Sid.text() + "'" else: if mystr.find("%")==-1: temp_sqlstring += " and Sid = '" + self.Sid.text() + "'" else: temp_sqlstring += " and Sid like '" + self.Sid.text() + "'" if self.check_Sname.isChecked(): if is_first: mystr =self.Sname.text() is_first = False if mystr.find("%")==-1: temp_sqlstring += "Sname = '" + self.Sname.text() + "'" else: temp_sqlstring += "Sname like '" + self.Sname.text() + "'" else: if mystr.find("%")==-1: temp_sqlstring += " and Sname = '" + self.Sname.text() + "'" else: temp_sqlstring += " and Sname like '" + self.Sname.text() + "'" if self.check_Sage.isChecked(): if is_first: is_first = False temp_sqlstring += "Sage >= " + self.first_Sage.text() +\ " and Sage <= " + self.last_Sage.text() else: temp_sqlstring += " and Sage >= " + self.first_Sage.text() +\ " and Sage <= " + self.last_Sage.text() if self.check_Ssex.isChecked(): if is_first: is_first = False temp_sqlstring += "Ssex = '" + self.Ssex.text() + "'" else: temp_sqlstring += " and Ssex = '" + self.Ssex.text() + "'" if self.check_Sclass.isChecked(): if is_first: mystr = self.Sclass.text() is_first = False if mystr.find("%")==-1: temp_sqlstring += "Sclass = '" + self.Sclass.text() + "'" else: temp_sqlstring += "Sclass like '" + self.Sclass.text() + "'" else: if mystr.find("%")==-1: temp_sqlstring += " and Sclass = '" + self.Sclass.text() + "'" else: temp_sqlstring += " and Sclass like '" + self.Sclass.text() + "'" if self.check_Sdept.isChecked(): if is_first: mystr = self.Sdept.text() is_first = False if mystr.find("%")==-1: temp_sqlstring += "Sdept = '" + self.Sdept.text() + "'" else: temp_sqlstring += "Sdept like '" + self.Sdept.text() + "'" else: if mystr.find("%")==-1: temp_sqlstring += " and Sdept = '" + self.Sdept.text() + "'" else: temp_sqlstring += " and Sdept like '" + self.Sdept.text() + "'" if self.check_Saddr.isChecked(): if is_first: mystr = self.Saddr.text() is_first = False if mystr.find("%")==-1: temp_sqlstring += "Saddr = '" + self.Saddr.text() + "'" else: temp_sqlstring +=" and Saddr like '" + self.Saddr.text() + "'" else: if mystr.find("%")==-1: temp_sqlstring += " and Saddr = '" + self.Saddr.text() + "'" else: temp_sqlstring +=" and Saddr like '" + self.Saddr.text() + "'" self.result_out.clearContents()#每一次查詢時清除表格中信息 if not(is_first): self.cur.execute(temp_sqlstring) k=0 for i in self.cur: w=0 for j in i: if type(j)==long: newItem = QtGui.QTableWidgetItem(str(j)) else: newItem = QtGui.QTableWidgetItem(j) self.result_out.setItem(k,w,newItem) w += 1 k +=1 self.sql_out.setText("") self.sql_out.append(temp_sqlstring) print "find button pressed" def buttonExit(self): self.conn.commit() self.cur.close() self.conn.close() self.close() def keyPressEvent(self, e): if e.key() == QtCore.Qt.Key_Escape: self.buttonExit() class MyWindow(QtGui.QMainWindow,Ui_MainWindow): def __init__(self): super(MyWindow,self).__init__() self.setupUi(self) self.connect(self.find, QtCore.SIGNAL('clicked()'), self.buttonTest) self.connect(self.pushButton_2,QtCore.SIGNAL('clicked()'),self.buttonExit) if __name__=="__main__": app=QtGui.QApplication(sys.argv) app.aboutToQuit.connect(app.deleteLater) myshow=MyWindow() myshow.show() sys.exit(app.exec_()) #app.exec_() #sys.exit(0)注:運行前首先確保已經在MySQL中存在mysql數據庫以及students表格;
