MySQL-MMM裝置指南(Multi-Master Replication Manager for MySQL)。本站提示廣大學習愛好者：（MySQL-MMM裝置指南(Multi-Master Replication Manager for MySQL)）文章只能為提供參考，不一定能成為您想要的結果。以下是MySQL-MMM裝置指南(Multi-Master Replication Manager for MySQL)正文
最根本的MMM裝置必需至多須要2個數據庫辦事器和一個監控辦事器上面要設置裝備擺設的MySQL Cluster情況包括四台數據庫辦事器和一台監控辦事器，以下：
假如是小我進修裝置，一會兒找5台機械不太輕易，可以虛擬機便可以完成。
設置裝備擺設完成後，應用上面的虛擬IP拜訪MySQL Cluster，他們經由過程MMM分派到分歧的辦事器。

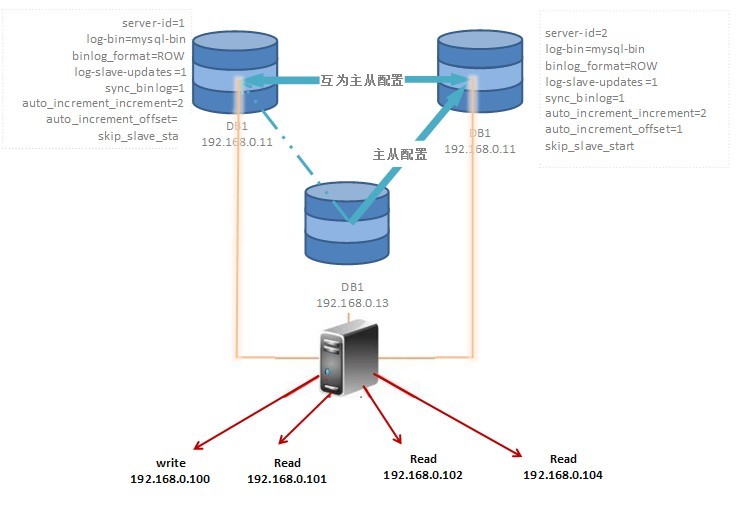

構造圖以下：
2. Basic configuration of master 1
First we install MySQL on all hosts:
aptitude install mysql-serverThen we edit the configuration file /etc/mysql/my.cnf and add the following lines - be sure to use different server ids for all hosts:
server_id = 1
log_bin = /var/log/mysql/mysql-bin.log
log_bin_index = /var/log/mysql/mysql-bin.log.index
relay_log = /var/log/mysql/mysql-relay-bin
relay_log_index = /var/log/mysql/mysql-relay-bin.index
expire_logs_days = 10
max_binlog_size = 100M
log_slave_updates = 1
Then remove the following entry:
bind-address = 127.0.0.1Set to number of masters:
auto_increment_increment = 2Set to a unique, incremented number, less than auto_increment_increment, on each server
auto_increment_offset = 1Do not bind of any specific IP, use 0.0.0.0 instead:
bind-address = 0.0.0.0Afterwards we need to restart MySQL for our changes to take effect:
/etc/init.d/mysql restart
3. Create usersNow we can create the required users. We'll need 3 different users:
Note: We could be more restrictive here regarding the hosts from which the users are allowed to connect: mmm_monitor is used from 192.168.0.10. mmm_agent and replication are used from 192.168.0.11 - 192.168.0.14.
Note: Don't use a replication_password longer than 32 characters
4. Synchronisation of data between both databases
I'll assume that db1 contains the correct data. If you have an empty database, you still have to syncronize the accounts we have just created.
First make sure that no one is altering the data while we create a backup.
(db1) mysql> FLUSH TABLES WITH READ LOCK;
Then get the current position in the binary-log. We will need this values when we setup the replication on db2, db3 and db4.
(db1) mysql> SHOW MASTER STATUS;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000002 | 374 | | |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)
DON'T CLOSE this mysql-shell. If you close it, the database lock will be removed. Open a second console and type:
db1$ mysqldump -u root -p --all-databases > /tmp/database-backup.sql
Now we can remove the database-lock. Go to the first shell:
(db1) mysql> UNLOCK TABLES;Copy the database backup to db2, db3 and db4.
db1$ scp /tmp/database-backup.sql <user>@192.168.0.12:/tmp
db1$ scp /tmp/database-backup.sql <user>@192.168.0.13:/tmp
db1$ scp /tmp/database-backup.sql <user>@192.168.0.14:/tmp
Then import this into db2, db3 and db4:
db2$ mysql -u root -p < /tmp/database-backup.sql
db3$ mysql -u root -p < /tmp/database-backup.sql
db4$ mysql -u root -p < /tmp/database-backup.sql
Then flush the privileges on db2, db3 and db4. We have altered the user-table and mysql has to reread this table.
(db2) mysql> FLUSH PRIVILEGES;
(db3) mysql> FLUSH PRIVILEGES;
(db4) mysql> FLUSH PRIVILEGES;
On debian and ubuntu, copy the passwords in /etc/mysql/debian.cnf from db1 to db2, db3 and db4. This password is used for starting and stopping mysql.
Both databases now contain the same data. We now can setup replication to keep it that way.
Note: Import just only add records from dump file. You should drop all databases before import dump file.
5. Setup replication
Configure replication on db2, db3 and db4 with the following commands:
(db2) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
(db3) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
(db4) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
Please insert the values return by “show master status” on db1 at the <file> and <position> tags.
Start the slave-process on all 3 hosts:
(db2) mysql> START SLAVE;
(db3) mysql> START SLAVE;
(db4) mysql> START SLAVE;
Now check if the replication is running correctly on all hosts:
(db2) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
(db3) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
(db4) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
Now we have to make db1 replicate from db2. First we have to determine the values for master_log_file and master_log_pos:
(db2) mysql> SHOW MASTER STATUS;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000001 | 98 | | |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)
Now we configure replication on db1 with the following command:
(db1) mysql> CHANGE MASTER TO master_host = '192.168.0.12', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
Now insert the values return by “show master status” on db2 at the <file> and <position> tags.
Start the slave-process:
(db1) mysql> START SLAVE;Now check if the replication is running correctly on db1:
(db1) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.12
Master_User: <replication>
Master_Port: 3306
Connect_Retry: 60
…
Replication between the nodes should now be complete. Try it by inserting some data into both db1 and db2 and check that the data will appear on all other nodes.
6. Install MMM
Create user
Optional: Create user that will be the owner of the MMM scripts and configuration files. This will provide an easier method to securely manage the monitor scripts.
useradd --comment "MMM Script owner" --shell /sbin/nologin mmmdMonitoring host
First install dependencies:
aptitude install liblog-log4perl-perl libmailtools-perl liblog-dispatch-perl libclass-singleton-perl libproc-daemon-perl libalgorithm-diff-perl libdbi-perl libdbd-mysql-perl
Then fetch the latest mysql-mmm-common*.deb and mysql-mmm-monitor*.deb and install it:
dpkg -i mysql-mmm-common_*.deb mysql-mmm-monitor*.deb
Database hosts
On Ubuntu First install dependencies:
aptitude install liblog-log4perl-perl libmailtools-perl liblog-dispatch-perl iproute libnet-arp-perl libproc-daemon-perl libalgorithm-diff-perl libdbi-perl libdbd-mysql-perlThen fetch the latest mysql-mmm-common*.deb and mysql-mmm-agent*.deb and install it:
dpkg -i mysql-mmm-common_*.deb mysql-mmm-agent_*.debOn RedHat
yum install -y mysql-mmm-agentThis will take care of all the dependencies, which may include:
Installed:
mysql-mmm-agent.noarch 0:2.2.1-1.el5
Dependency Installed:
libart_lgpl.x86_64 0:2.3.17-4
mysql-mmm.noarch 0:2.2.1-1.el5
perl-Algorithm-Diff.noarch 0:1.1902-2.el5
perl-DBD-mysql.x86_64 0:4.008-1.rf
perl-DateManip.noarch 0:5.44-1.2.1
perl-IPC-Shareable.noarch 0:0.60-3.el5
perl-Log-Dispatch.noarch 0:2.20-1.el5
perl-Log-Dispatch-FileRotate.noarch 0:1.16-1.el5
perl-Log-Log4perl.noarch 0:1.13-2.el5
perl-MIME-Lite.noarch 0:3.01-5.el5
perl-Mail-Sender.noarch 0:0.8.13-2.el5.1
perl-Mail-Sendmail.noarch 0:0.79-9.el5.1
perl-MailTools.noarch 0:1.77-1.el5
perl-Net-ARP.x86_64 0:1.0.6-2.1.el5
perl-Params-Validate.x86_64 0:0.88-3.el5
perl-Proc-Daemon.noarch 0:0.03-1.el5
perl-TimeDate.noarch 1:1.16-5.el5
perl-XML-DOM.noarch 0:1.44-2.el5
perl-XML-Parser.x86_64 0:2.34-6.1.2.2.1
perl-XML-RegExp.noarch 0:0.03-2.el5
rrdtool.x86_64 0:1.2.27-3.el5
rrdtool-perl.x86_64 0:1.2.27-3.el5
Configure MMM
All generic configuration-options are grouped in a separate file called /etc/mysql-mmm/mmm_common.conf. This file will be the same on all hosts in the system:
active_master_role writer
<host default>
cluster_interface eth0
pid_path /var/run/mmmd_agent.pid
bin_path /usr/lib/mysql-mmm/
replication_user replication
replication_password replication_password
agent_user mmm_agent
agent_password agent_password
</host>
<host db1>
ip 192.168.0.11
mode master
peer db2
</host>
<host db2>
ip 192.168.0.12
mode master
peer db1
</host>
<host db3>
ip 192.168.0.13
mode slave
</host>
<host db4>
ip 192.168.0.14
mode slave
</host>
<role writer>
hosts db1, db2
ips 192.168.0.100
mode exclusive
</role>
<role reader>
hosts db1, db2, db3, db4
ips 192.168.0.101, 192.168.0.102, 192.168.0.103, 192.168.0.104
mode balanced
</role>
Don't forget to copy this file to all other hosts (including the monitoring host).
On the database hosts we need to edit /etc/mysql-mmm/mmm_agent.conf. Change “db1” accordingly on the other hosts:
include mmm_common.conf
this db1
On the monitor host we need to edit /etc/mysql-mmm/mmm_mon.conf:
include mmm_common.conf
<monitor>
ip 127.0.0.1
pid_path /var/run/mmmd_mon.pid
bin_path /usr/lib/mysql-mmm/
status_path /var/lib/misc/mmmd_mon.status
ping_ips 192.168.0.1, 192.168.0.11, 192.168.0.12, 192.168.0.13, 192.168.0.14
</monitor>
<host default>
monitor_user mmm_monitor
monitor_password monitor_password
</host>
debug 0
ping_ips are some ips that are pinged to determine whether the network connection of the monitor is ok. I used my switch (192.168.0.1) and the four database server.
7. Start MMM
Start the agents
(On the database hosts)
Debian/Ubuntu
Edit /etc/default/mysql-mmm-agent to enable the agent:
ENABLED=1Red Hat
RHEL/Fedora does not enable packages to start at boot time per default policy, so you might have to turn it on manually so the agents will start automatically when server is rebooted:
chkconfig mysql-mmm-agent onThen start it:
/etc/init.d/mysql-mmm-agent startStart the monitor
(On the monitoring host) Edit /etc/default/mysql-mmm-monitor to enable the monitor:
ENABLED=1Then start it:
/etc/init.d/mysql-mmm-monitor start
Wait some seconds for mmmd_mon to start up. After a few seconds you can use mmm_control to check the status of the cluster:
mon$ mmm_control show
db1(192.168.0.11) master/AWAITING_RECOVERY. Roles:
db2(192.168.0.12) master/AWAITING_RECOVERY. Roles:
db3(192.168.0.13) slave/AWAITING_RECOVERY. Roles:
db4(192.168.0.14) slave/AWAITING_RECOVERY. Roles:
Because its the first startup the monitor does not know our hosts, so it sets all hosts to state AWAITING_RECOVERY and logs a warning message:
mon$ tail /var/log/mysql-mmm/mmm_mon.warn
…
2009/10/28 23:15:28 WARN Detected new host 'db1': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db1' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db2': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db2' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db3': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db3' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db4': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db4' to switch it online.
Now we set or hosts online (db1 first, because the slaves replicate from this host):
mon$ mmm_control set_online db1
OK: State of 'db1' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db2
OK: State of 'db2' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db3
OK: State of 'db3' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db4
OK: State of 'db4' changed to ONLINE. Now you can wait some time and check its new roles!
參考：http://mysql-mmm.org/mmm2:guide
