Environment:
OS:RedHat 6.3
Oracle Media:11.2.3.0

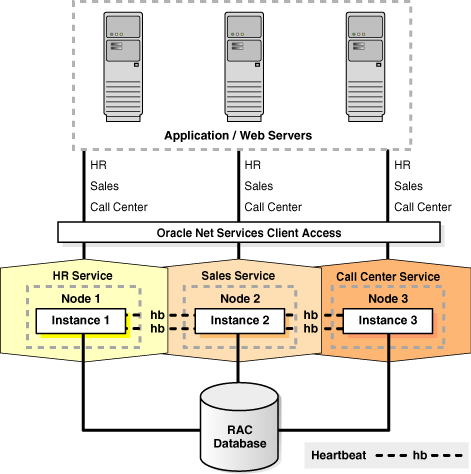

Theory:
1.config host
192.168.1.165 zbdba1
192.168.1.167 zbdba2
192.168.1.178 zbdba3
192.168.1.166 zbdba1-vip
192.168.1.168 zbdba2-vip
192.168.1.179 zbdba3-vip
172.168.1.181 zbdba1-priv
172.168.1.182 zbdba2-priv
172.168.1.183 zbdba3-priv
192.168.1.169 node-cluster node-cluster-scan
2.firewall and selinux
service iptables stop
chkconfig iptables off
chkconfig --list iptables
3.kernel:
vi /etc/sysctl.conf
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 536870912
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
4.create user and group:
groupadd -g 501 oinstall
groupadd -g 502 dba
groupadd -g 503 asmadmin
groupadd -g 504 asmdba
useradd -u 501 -g oinstall -G dba,asmdba -d /home/oracle oracle
useradd -u 502 -g oinstall -G asmdba,asmadmin,dba -d /home/grid grid
5.create dictionary:
mkdir -p /opt/oracle/products/
mkdir -p /opt/oracle/products/11.2.0
mkdir -p /opt/oracle/diag
mkdir -p /opt/ogrid
mkdir -p /opt/grid/products/
mkdir -p /opt/grid/oraInventory/
mkdir -p /opt/grid/products/11.2.0
mkdir -p /opt/oraInventory
chown -Rf oracle:oinstall /opt/oracle
chown -Rf grid:oinstall /opt/grid
chown -Rf grid:oinstall /opt/ogrid
chown -Rf grid:oinstall /opt/oraInventory
6.OpenSSH:
first: unzip the install-package
/database/grid/sshsetup/sshUserSetup.sh -user grid -hosts "zbdba1 zbdba2 zbdba3" -noPromptPassphrase -confirm -advanced
/database/database/sshsetup/sshUserSetup.sh -user oracle -hosts "zbdba1 zbdba2 zbdba3" -noPromptPassphrase -confirm -advanced
7.limits:
oracle soft nproc 4096
oracle hard nproc 16384
oracle soft nofile 4096
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 32768
grid soft nproc 2047
grid hard nproc 16384
grid soft nofile 4096
grid hard nofile 65536
grid soft stack 10240
grid hard stack 32768
8.package
oracle recomends:
binutils-2.20.51.0.2-5.11.el6 (x86_64)
compat-libcap1-1.10-1 (x86_64)
compat-libstdc++-33-3.2.3-69.el6 (x86_64)
compat-libstdc++-33-3.2.3-69.el6.i686
gcc-4.4.4-13.el6 (x86_64)
gcc-c++-4.4.4-13.el6 (x86_64)
glibc-2.12-1.7.el6 (i686)
glibc-2.12-1.7.el6 (x86_64)
glibc-devel-2.12-1.7.el6 (x86_64)
glibc-devel-2.12-1.7.el6.i686
ksh
libgcc-4.4.4-13.el6 (i686)
libgcc-4.4.4-13.el6 (x86_64)
libstdc++-4.4.4-13.el6 (x86_64)
libstdc++-4.4.4-13.el6.i686
libstdc++-devel-4.4.4-13.el6 (x86_64)
libstdc++-devel-4.4.4-13.el6.i686
libaio-0.3.107-10.el6 (x86_64)
libaio-0.3.107-10.el6.i686
libaio-devel-0.3.107-10.el6 (x86_64)
libaio-devel-0.3.107-10.el6.i686
make-3.81-19.el6
sysstat-9.0.4-11.el6 (x86_64)
you should have configed yum local source
yum install -y binutils-* compat-libcap1* compat-libstdc++-* gcc-* glibc-* glibc-devel-* ksh* libgcc-* libstdc++-* libstdc++-devel-* libaio-* libaio-devel-* make-* sysstat-* elfutils-libelf-devel-*
9.asmdisk:
use iscsid
yum install -y iscsi-initiator-utils
iscsi:
iscsiadm --mode discoverydb --type sendtargets --portal 192.168.1.201 --discover
iscsiadm --mode node --targetname zhaojingbo.woqutech.com --portal 192.168.1.201:3260 –login
注意設置開機自動生效：chkconfig iscsid on service iscsid start
udev:
for i in b c d a;
do
echo "KERNEL==\"sd*\", BUS==\"scsi\", PROGRAM==\"/sbin/scsi_id --whitelisted --replace-whitespace --device=/dev/\$name\", RESULT==\"`/sbin/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i`\", NAME=\"asm-disk$i\", OWNER=\"grid\", GROUP=\"asmadmin\", MODE=\"0660\"" >> /etc/udev/rules.d/99-oracle-asmdevices.rules
done
10.check:
./runcluvfy.sh stage -pre crsinst -n zbdba1,zbdba2,zbdba3 -verbose
11.config Oracle environment variable:
[oracle bash_profile]
export ORACLE_BASE=/opt/oracle
export ORACLE_HOME=$ORACLE_BASE/products/11.2.0
export PATH=$PATH:$ORACLE_HOME/bin
export ORACLE_SID=book1
export NLS_LANG=AMERICAN_AMERICA.ZHS16GBK
umask 022
[grid bash_profile]
export ORACLE_HOME=/opt/grid/products/11.2.0
export ORACLE_BASE=/opt/ogrid
export PATH=$PATH:$ORACLE_HOME/bin
export ORACLE_SID=+ASM1
umask 022
12.install grid:
./runInstaller -silent -responseFile /home/grid/grid_install.rsp -showProgress -ignorePrereq
orainstRoot.sh root.sh需手動執行 ,root.sh執行錯誤，回退：
留一個節點，在其他節點運行
/opt/grid/products/11.2.0/crs/install/rootcrs.pl -verbose -deconfig -force
在最後一個節點，運行（這個會清除OCR,VOTING和他們的ASM DG）
/opt/grid/products/11.2.0/crs/install/rootcrs.pl -verbose -deconfig -force -lastnode
VOTING盤大於等於2G
cd /opt/grid/oraInventory/ContentsXML/inventory.xml 添加屬性CRS="TRUE"
<HOME_LIST>
<HOME NAME="Ora11g_gridinfrahome1" LOC="/opt/grid/products/11.2.0" TYPE="O" IDX="1" CRS="true">
<NODE_LIST>
<NODE NAME="rac1"/>
<NODE NAME="rac2"/>
</NODE_LIST>
</HOME>
isntall database:
./runInstaller -silent -responseFile /home/oracle/db_install.rsp -showProgress -ignorePrereq
root.sh手動執行
/opt/grid/products/11.2.0/crs/install/crsconfig_params
db_install.rsp
#------------------------------------------------------------------------------
# Do not change the following system generated value.
#------------------------------------------------------------------------------
oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v11_2_0
################################### Manually Edit ############################################
ORACLE_HOSTNAME=zbdba1
oracle.install.db.CLUSTER_NODES=zbdba1,zbdba2,zbdba3
###############################################################################################
oracle.install.option=INSTALL_DB_SWONLY
UNIX_GROUP_NAME=oinstall
INVENTORY_LOCATION=/opt/grid/oraInventory
SELECTED_LANGUAGES=en
ORACLE_HOME=/opt/oracle/products/11.2.0
ORACLE_BASE=/opt/oracle
oracle.install.db.InstallEdition=EE
oracle.install.db.EEOptionsSelection=false
oracle.install.db.optionalComponents=oracle.rdbms.partitioning:11.2.0.3.0,oracle.oraolap:11.2.0.3.0,oracle.rdbms.dm:11.2.0.3.0,oracle.rdbms.dv:11.2.0.3.0,oracle.rdbms.lbac:11.2.0.3.0,oracle.rdbms.rat:11.2.0.3.0
oracle.install.db.DBA_GROUP=dba
oracle.install.db.OPER_GROUP=asmadmin
#------------------------------------------------------------------------------
# Specify the type of database to create.
# It can be one of the following:
# - GENERAL_PURPOSE/TRANSACTION_PROCESSING
# - DATA_WAREHOUSE
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.type=
#------------------------------------------------------------------------------
# Specify the Starter Database Global Database Name.
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.globalDBName=
#------------------------------------------------------------------------------
# Specify the Starter Database SID.
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.SID=
#------------------------------------------------------------------------------
# Specify the Starter Database character set.
#
# It can be one of the following:
# AL32UTF8, WE8ISO8859P15, WE8MSWIN1252, EE8ISO8859P2,
# EE8MSWIN1250, NE8ISO8859P10, NEE8ISO8859P4, BLT8MSWIN1257,
# BLT8ISO8859P13, CL8ISO8859P5, CL8MSWIN1251, AR8ISO8859P6,
# AR8MSWIN1256, EL8ISO8859P7, EL8MSWIN1253, IW8ISO8859P8,
# IW8MSWIN1255, JA16EUC, JA16EUCTILDE, JA16SJIS, JA16SJISTILDE,
# KO16MSWIN949, ZHS16GBK, TH8TISASCII, ZHT32EUC, ZHT16MSWIN950,
# ZHT16HKSCS, WE8ISO8859P9, TR8MSWIN1254, VN8MSWIN1258
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.characterSet=AL32UTF8
#------------------------------------------------------------------------------
# This variable should be set to true if Automatic Memory Management
# in Database is desired.
# If Automatic Memory Management is not desired, and memory allocation
# is to be done manually, then set it to false.
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.memoryOption=true
#------------------------------------------------------------------------------
# Specify the total memory allocation for the database. Value(in MB) should be
# at least 256 MB, and should not exceed the total physical memory available
# on the system.
# Example: oracle.install.db.config.starterdb.memoryLimit=512
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.memoryLimit=
oracle.install.db.config.starterdb.installExampleSchemas=false
#------------------------------------------------------------------------------
# This variable includes enabling audit settings, configuring password profiles
# and revoking some grants to public. These settings are provided by default.
# These settings may also be disabled.
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.enableSecuritySettings=true
#------------------------------------------------------------------------------
# This variable holds the password that is to be used for all schemas in the
# starter database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.password.ALL=oracle
#-------------------------------------------------------------------------------
# Specify the SYS password for the starter database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.password.SYS=
#-------------------------------------------------------------------------------
# Specify the SYSTEM password for the starter database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.password.SYSTEM=
#-------------------------------------------------------------------------------
# Specify the SYSMAN password for the starter database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.password.SYSMAN=
#-------------------------------------------------------------------------------
# Specify the DBSNMP password for the starter database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.password.DBSNMP=
#-------------------------------------------------------------------------------
# Specify the management option to be selected for the starter database.
# It can be one of the following:
# 1. GRID_CONTROL
# 2. DB_CONTROL
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.control=
#-------------------------------------------------------------------------------
# Specify the Management Service to use if Grid Control is selected to manage
# the database.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.gridcontrol.gridControlServiceURL=
###############################################################################
# #
# SPECIFY BACKUP AND RECOVERY OPTIONS #
# ------------------------------------ #
# Out-of-box backup and recovery options for the database can be mentioned #
# using the entries below. #
# #
###############################################################################
#------------------------------------------------------------------------------
# This variable is to be set to false if automated backup is not required. Else
# this can be set to true.
#------------------------------------------------------------------------------
#oracle.install.db.config.starterdb.automatedBackup.enable=false
#------------------------------------------------------------------------------
# Regardless of the type of storage that is chosen for backup and recovery, if
# automated backups are enabled, a job will be scheduled to run daily to backup
# the database. This job will run as the operating system user that is
# specified in this variable.
#------------------------------------------------------------------------------
#oracle.install.db.config.starterdb.automatedBackup.osuid=
#-------------------------------------------------------------------------------
# Regardless of the type of storage that is chosen for backup and recovery, if
# automated backups are enabled, a job will be scheduled to run daily to backup
# the database. This job will run as the operating system user specified by the
# above entry. The following entry stores the password for the above operating
# system user.
#-------------------------------------------------------------------------------
oracle.install.db.config.starterdb.automatedBackup.ospwd=
#-------------------------------------------------------------------------------
# Specify the type of storage to use for the database.
# It can be one of the following:
# - FILE_SYSTEM_STORAGE
# - ASM_STORAGE
#------------------------------------------------------------------------------
oracle.install.db.config.starterdb.storageType=ASM_STORAGE
#-------------------------------------------------------------------------------
# Specify the existing ASM disk groups to be used for storage.
#
# Applicable only when oracle.install.db.config.starterdb.storage=ASM_STORAGE
#-------------------------------------------------------------------------------
oracle.install.db.config.asm.diskGroup=data
#-------------------------------------------------------------------------------
# Specify the password for ASMSNMP user of the ASM instance.
#
# Applicable only when oracle.install.db.config.starterdb.storage=ASM_STORAGE
#-------------------------------------------------------------------------------
oracle.install.db.config.asm.ASMSNMPPassword=oracle
#------------------------------------------------------------------------------
# Specify the My Oracle Support Account Username.
#
# Example : [email protected]
#------------------------------------------------------------------------------
MYORACLESUPPORT_USERNAME=
#------------------------------------------------------------------------------
# Specify the My Oracle Support Account Username password.
#
# Example : MYORACLESUPPORT_PASSWORD=password
#------------------------------------------------------------------------------
MYORACLESUPPORT_PASSWORD=
#------------------------------------------------------------------------------
# Specify whether to enable the user to set the password for
# My Oracle Support credentials. The value can be either true or false.
# If left blank it will be assumed to be false.
#
# Example : SECURITY_UPDATES_VIA_MYORACLESUPPORT=true
#------------------------------------------------------------------------------
SECURITY_UPDATES_VIA_MYORACLESUPPORT=
#------------------------------------------------------------------------------
# Specify whether user doesn't want to configure Security Updates.
# The value for this variable should be true if you don't want to configure
# Security Updates, false otherwise.
#
# The value can be either true or false. If left blank it will be assumed
# to be false.
#
# Example : DECLINE_SECURITY_UPDATES=false
#------------------------------------------------------------------------------
DECLINE_SECURITY_UPDATES=true
#------------------------------------------------------------------------------
# Specify the Proxy server name. Length should be greater than zero.
#
# Example : PROXY_HOST=proxy.domain.com
#------------------------------------------------------------------------------
PROXY_HOST=
#------------------------------------------------------------------------------
# Specify the proxy port number. Should be Numeric and atleast 2 chars.
#
# Example : PROXY_PORT=25
#------------------------------------------------------------------------------
PROXY_PORT=
#------------------------------------------------------------------------------
# Specify the proxy user name. Leave PROXY_USER and PROXY_PWD
# blank if your proxy server requires no authentication.
#
# Example : PROXY_USER=username
#------------------------------------------------------------------------------
PROXY_USER=
#------------------------------------------------------------------------------
# Specify the proxy password. Leave PROXY_USER and PROXY_PWD
# blank if your proxy server requires no authentication.
#
# Example : PROXY_PWD=password
#------------------------------------------------------------------------------
PROXY_PWD=
#------------------------------------------------------------------------------
# Specify the proxy realm. This value is used if auto-updates option is selected.
#
# Example : PROXY_REALM=metalink
#------------------------------------------------------------------------------
PROXY_REALM=
#------------------------------------------------------------------------------
# Specify the Oracle Support Hub URL.
#
# Example : COLLECTOR_SUPPORTHUB_URL=https://orasupporthub.company.com:8080/
#------------------------------------------------------------------------------
COLLECTOR_SUPPORTHUB_URL=
#------------------------------------------------------------------------------
# Specify the auto-updates option. It can be one of the following:
# a.MYORACLESUPPORT_DOWNLOAD
# b.OFFLINE_UPDATES
# c.SKIP_UPDATES
#------------------------------------------------------------------------------
oracle.installer.autoupdates.option=SKIP_UPDATES
#------------------------------------------------------------------------------
# In case MYORACLESUPPORT_DOWNLOAD option is chosen, specify the location where
# the updates are to be downloaded.
# In case OFFLINE_UPDATES option is chosen, specify the location where the updates
# are present.
oracle.installer.autoupdates.downloadUpdatesLoc=
#------------------------------------------------------------------------------
# Specify the My Oracle Support Account Username which has the patches download privileges
# to be used for software updates.
# Example : [email protected]
#------------------------------------------------------------------------------
AUTOUPDATES_MYORACLESUPPORT_USERNAME=
#------------------------------------------------------------------------------
# Specify the My Oracle Support Account Username password which has the patches download privileges
# to be used for software updates.
#
# Example : AUTOUPDATES_MYORACLESUPPORT_PASSWORD=password
#------------------------------------------------------------------------------
AUTOUPDATES_MYORACLESUPPORT_PASSWORD=
grid_install.rsp
#------------------------------------------------------------------------------
# Do not change the following system generated value.
#------------------------------------------------------------------------------
oracle.install.responseFileVersion=/oracle/install/rspfmt_crsinstall_response_schema_v11_2_0
############################# Manually Edit #########################################################
ORACLE_HOSTNAME=zbdba1
oracle.install.crs.config.gpnp.scanName=node-cluster-scan
oracle.install.crs.config.clusterName=node-cluster
oracle.install.crs.config.clusterNodes=zbdba1:zbdba1-vip,zbdba2:zbdba2-vip,zbdba3:zbdba3-vip
##### (1 indicates public, 2 indicates private, and 3 indicates the interface is not used)
oracle.install.crs.config.networkInterfaceList=eth0:192.168.1.0:1,eth1:172.168.1.0:2
oracle.install.asm.diskGroup.disks=/dev/asm-diska,/dev/asm-diskb,/dev/asm-diskc
oracle.install.asm.diskGroup.diskDiscoveryString=/dev/asm*
######################################################################################################
INVENTORY_LOCATION=/opt/grid/oraInventory
SELECTED_LANGUAGES=en
oracle.install.option=CRS_CONFIG
ORACLE_BASE=/opt/ogrid
ORACLE_HOME=/opt/grid/products/11.2.0
oracle.install.asm.OSDBA=asmdba
oracle.install.asm.OSOPER=asmadmin
oracle.install.asm.OSASM=asmadmin
oracle.install.crs.config.gpnp.scanPort=1521
oracle.install.crs.config.gpnp.configureGNS=false
oracle.install.crs.config.gpnp.gnsSubDomain=
oracle.install.crs.config.gpnp.gnsVIPAddress=
oracle.install.crs.config.autoConfigureClusterNodeVIP=
oracle.install.crs.config.storageOption=ASM_STORAGE
oracle.install.crs.config.sharedFileSystemStorage.diskDriveMapping=
oracle.install.crs.config.sharedFileSystemStorage.votingDiskLocations=
oracle.install.crs.config.sharedFileSystemStorage.votingDiskRedundancy=NORMAL
oracle.install.crs.config.sharedFileSystemStorage.ocrLocations=
oracle.install.crs.config.sharedFileSystemStorage.ocrRedundancy=NORMAL
################################################################################
# #
# SECTION F - IPMI #
# #
################################################################################
oracle.install.crs.config.useIPMI=false
oracle.install.crs.config.ipmi.bmcUsername=
oracle.install.crs.config.ipmi.bmcPassword=
################################################################################
# #
# SECTION G - ASM #
# #
################################################################################
oracle.install.asm.SYSASMPassword=Welcome1
oracle.install.asm.diskGroup.name=OCRVOTE
oracle.install.asm.diskGroup.redundancy=EXTERNAL
oracle.install.asm.diskGroup.AUSize=1
oracle.install.asm.monitorPassword=Welcome1
################################################################################
# #
# SECTION H - UPGRADE #
# #
################################################################################
oracle.install.crs.upgrade.clusterNodes=
oracle.install.asm.upgradeASM=false
#------------------------------------------------------------------------------
# Specify the auto-updates option. It can be one of the following:
# a.MYORACLESUPPORT_DOWNLOAD
# b.OFFLINE_UPDATES
# c.SKIP_UPDATES
#------------------------------------------------------------------------------
oracle.installer.autoupdates.option=SKIP_UPDATES
oracle.installer.autoupdates.downloadUpdatesLoc=
AUTOUPDATES_MYORACLESUPPORT_USERNAME=
AUTOUPDATES_MYORACLESUPPORT_PASSWORD=
PROXY_HOST=
PROXY_PORT=
PROXY_USER=
PROXY_PWD=
PROXY_REALM=
